Name: Marker Cable Ties (ldentification cable ties)
Brand: Tolerance
SKU: 00044
Rating: 4.9 (72 reviews)

Product Description

Application

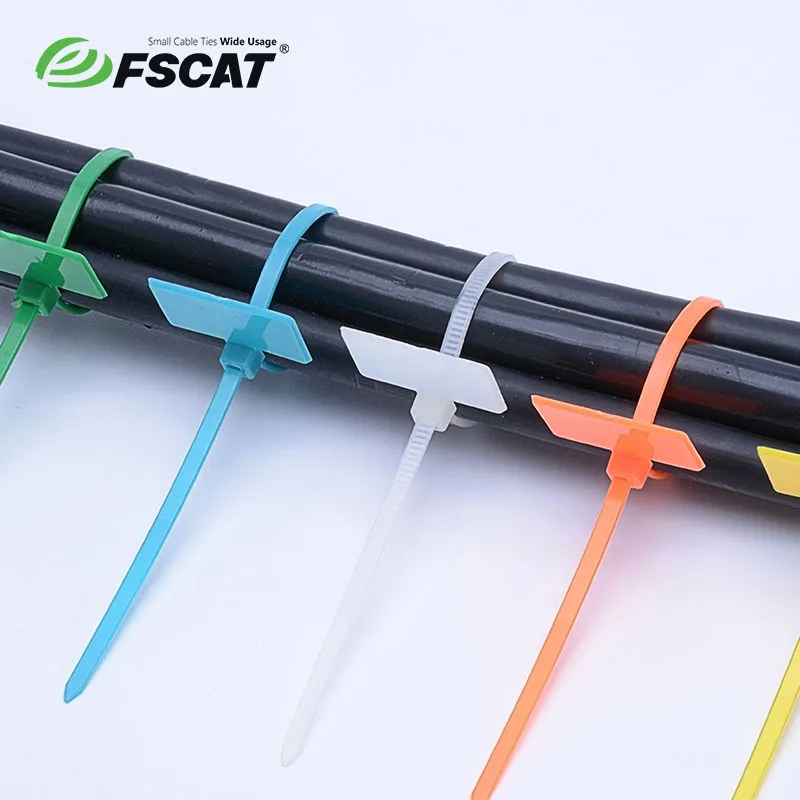

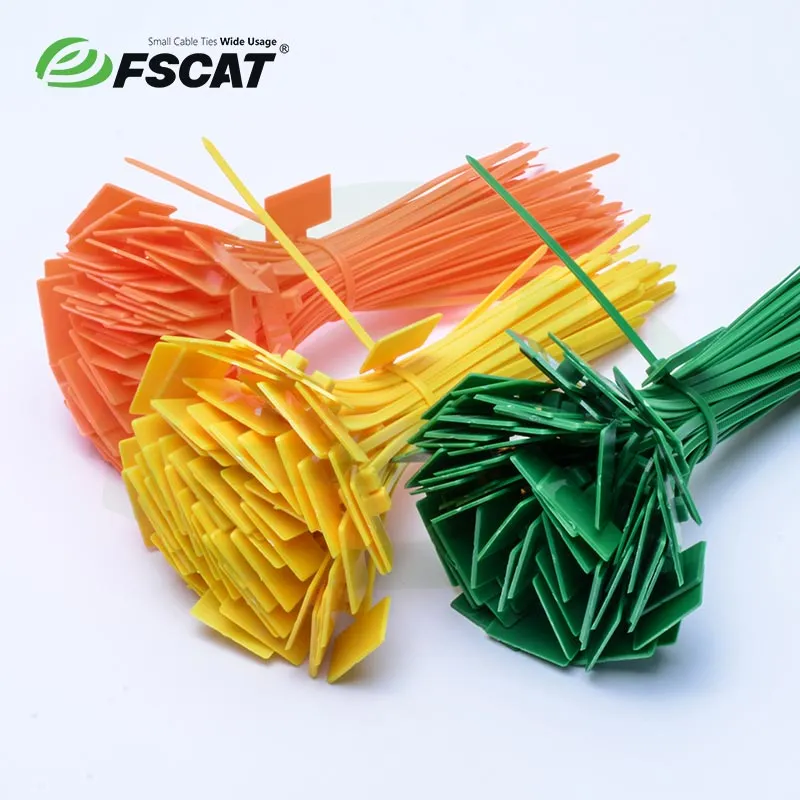

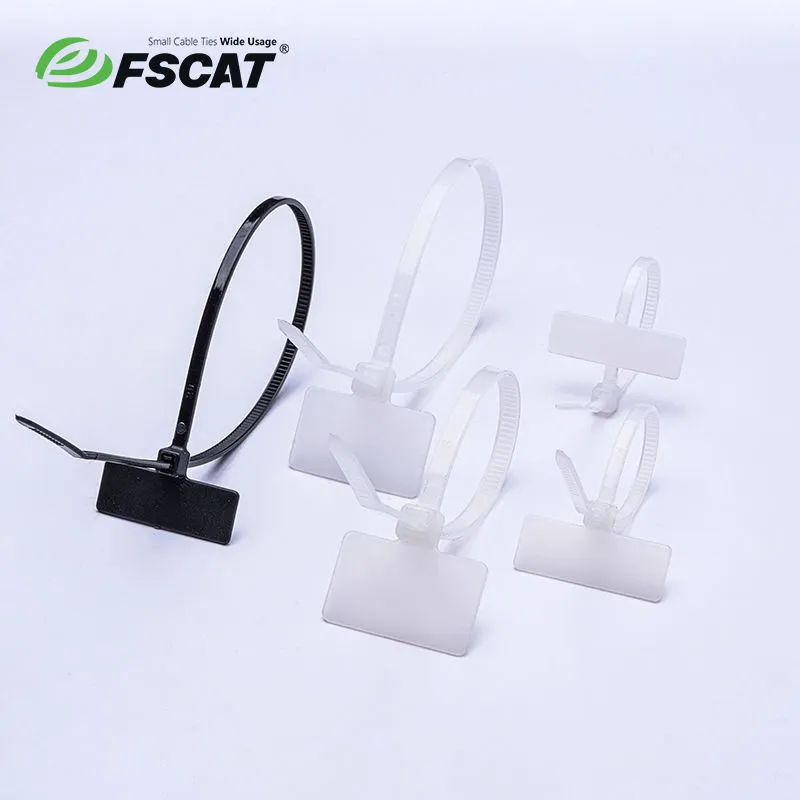

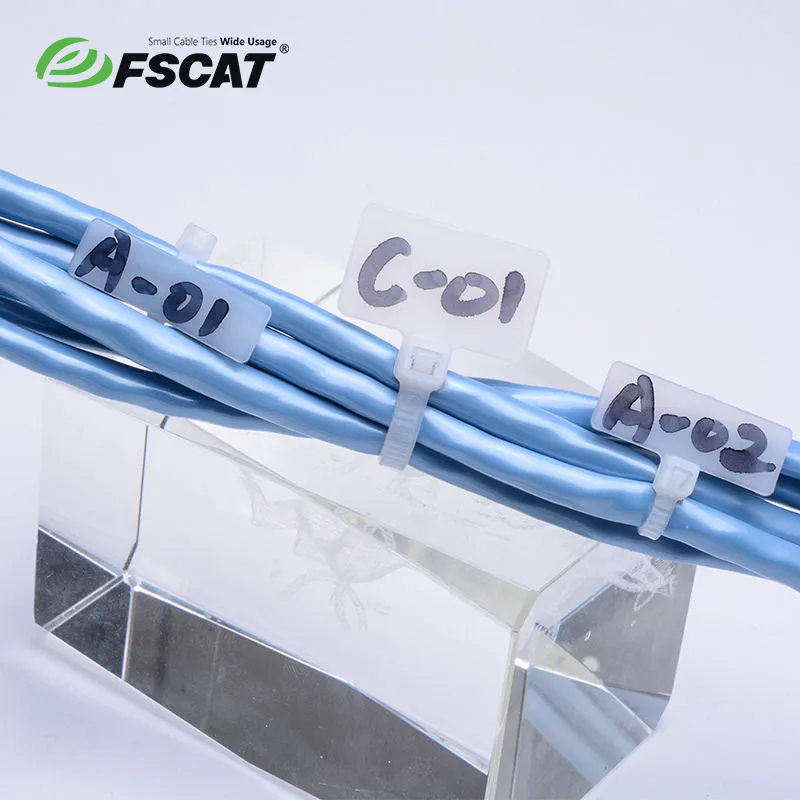

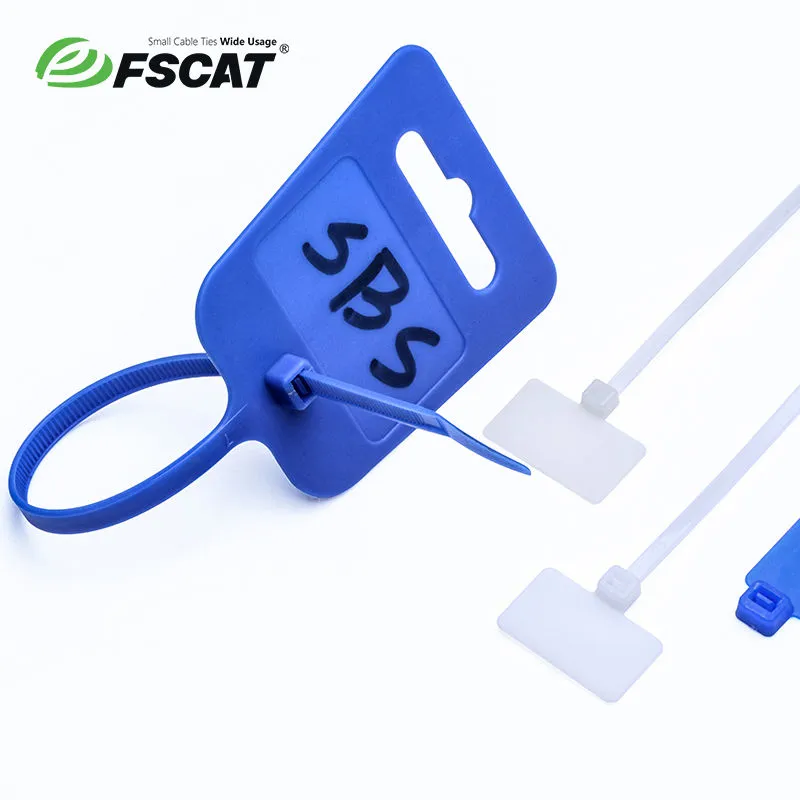

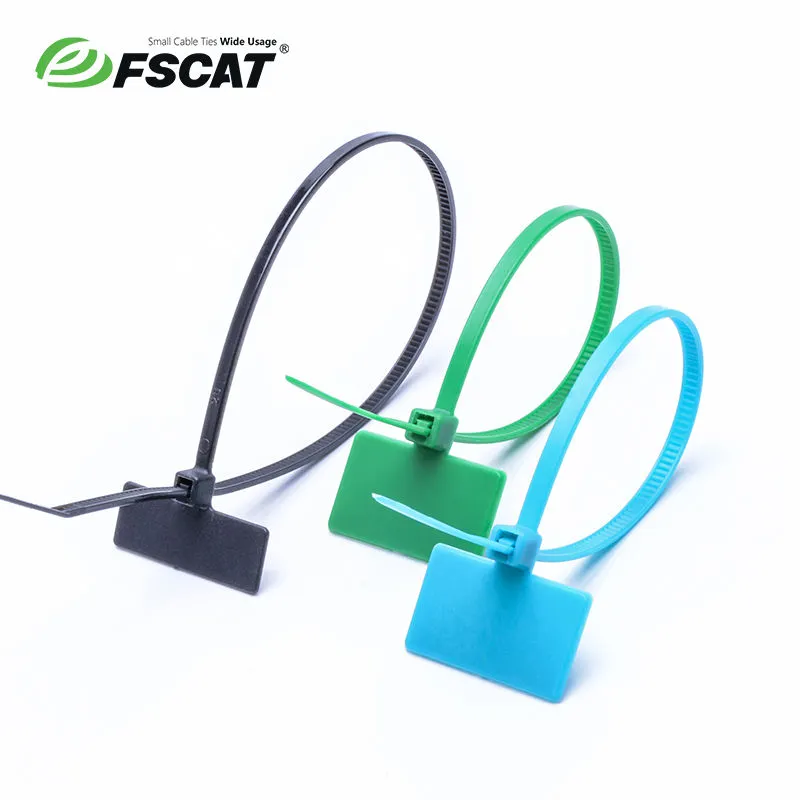

Identification cable ties are available in a wide variety of lengths and strengths. The one piece construction allows for consistent performance and reliability. Identification ties enable wire and cable bundles to be fastened and identified at the same time. The identification feature can be either Internal with the marking portion between the head and strap of the cable tie or External with the marking portion outside the head of the cable tie. The identification feature can be either horizontal or vertical to the strap of the tie. The identification feature marking area can be marked with a marker pen or hot stamped. Serial numbers, company logos, and sequential numbers can all be imprinted on the tie. The Identification cable ties are offered in Natural and UV Black. Bulk packaging of 1000 pieces per bag and smaller packaged quantities of 100 per bag are available.

The company has 3 professional mold drawing designers, and has a very complete mold production process and equipment, and is open to customers with different needs around the world. Welcome to sample drawing and production of customized cable tie tags.

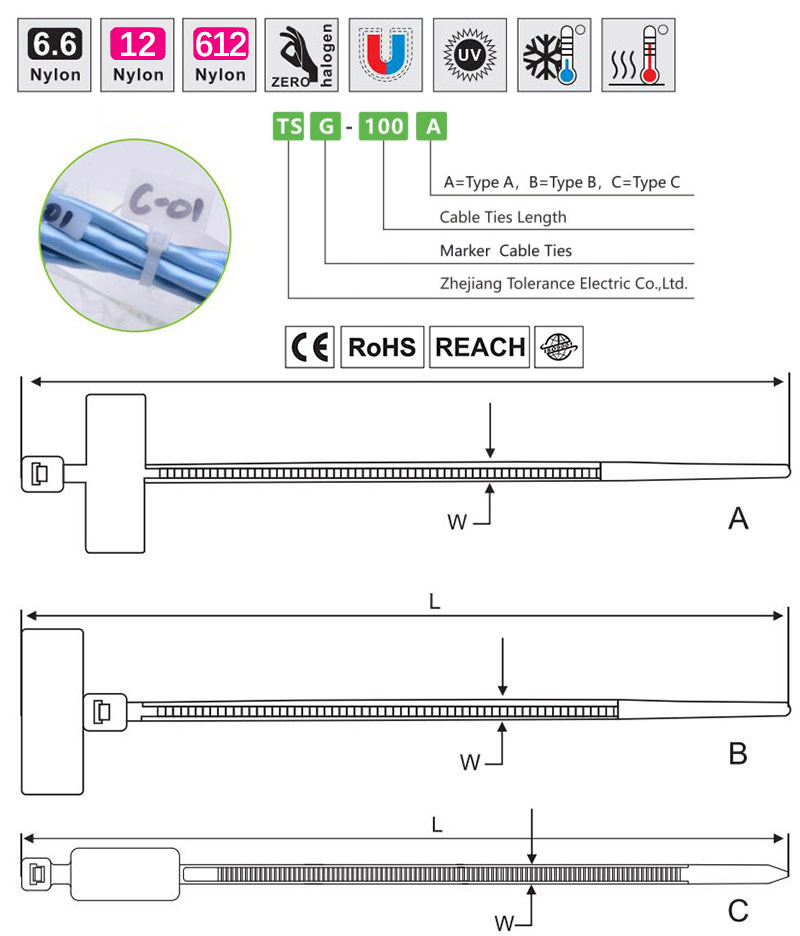

plane figure;CE,RoHS,REACH,ISO9001

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCE packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.

Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Bubble box packaging for supermarket

Cable Ties,Miniature Cable Ties,Bubble box packaging

Features & Benefits

Marker cable ties are available in a wide variety of lengths and strengths. The one - piece construction allows for consistent performance and reliability. Identification ties enable wire and cable bundles to be fastened and identified at the same time. The identification feature can be either Internal with the marking portion between the head and strap of the cable tie or External with the marking portion outside the head of the cable tie. The identification feature can be either horizontal or vertical to the strap of the tie. The identification marking area can be marked with a marker pen or hot stamped. Serial numbers, company logos, and sequential numbers can all be imprinted on the tie. The Identification cable ties are offered in Natural and UV Black. Bulk packaging of 1,000 pieces per bag and smaller packaged quantities of 100 per bag are available.

Specifications and Models

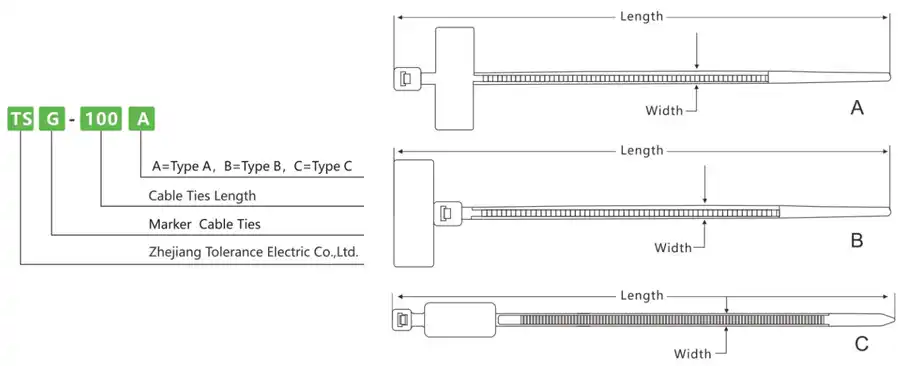

Technical Information

Item No.	Width		Length		Max.Bundle Dia.		Min.Bundle Dia.		Min.Tensile Strength		Marker Size
Item No.	mm	inch	mm	inch	mm	inch	mm	inch	N	ibs	mm
TSG-100A	2.5	0.098	100	3.94	22	0.87	3.0	0.12	80	18	25.4*8
TSG-110B			110	4.33	22	0.87	3.0	0.12	80	18	25.2*9.2
TSG-200A			200	7.87	53	2.09	3.0	0.12	80	18	25.4*8
TSG-210B			210	8.27	53	2.09	3.0	0.12	80	18	25.2*9.2
TSG-150B	3.6	0.142	150	5.91	36	1.42	3.5	0.14	180	42	24.3*14.5
TSG-200B	3.6	0.142	200	7.87	52	2.09	3.5	0.14	180	42	24.3*14.5
TSG-200C	4.8	0.189	200	7.87	52	2.09	3.5	0.14	220	50	13*26.8
TSG-300B			300	11.81	84	3.31	3.5	0.14	220	50
TSG-370C			370	14.57	106	4.17	3.5	0.14	220	50

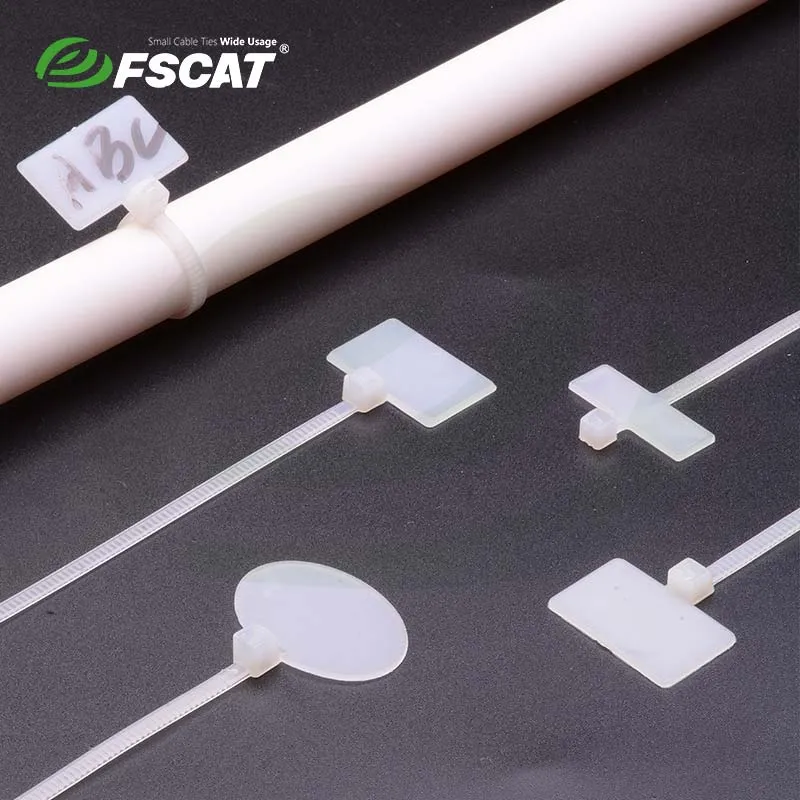

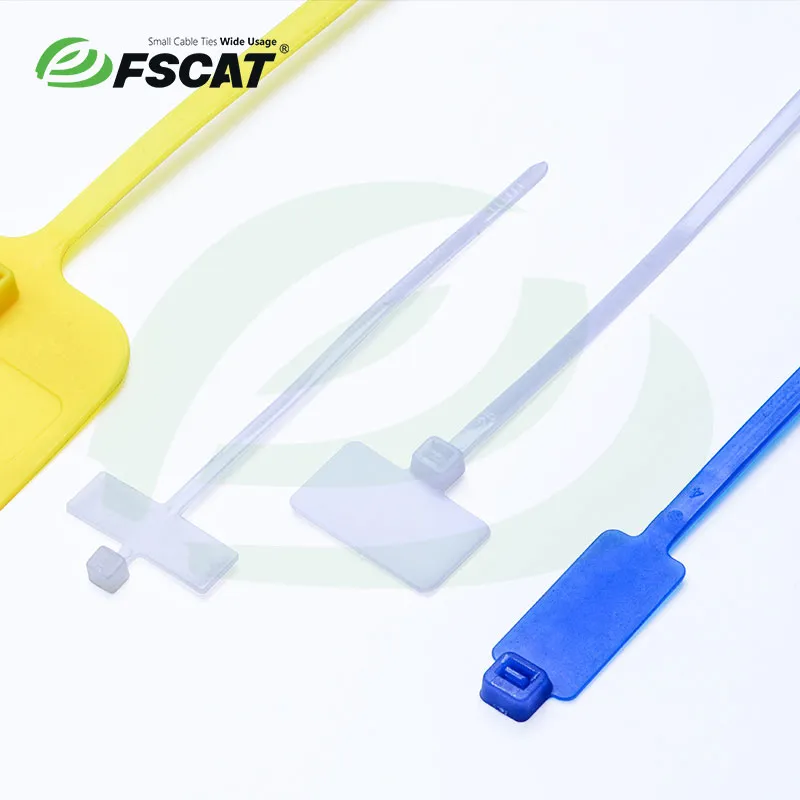

Customized Cable Ties

Item No.	Width	Length	Max.Bundle Dia.		Min.Tensile Strength			Package	Marker Size	Material
Item No.	mm/inch	mm/inch	mm	inch	N	kg	lbs	Pcs/Bag	mm	Material
TSG-100A	2.5(0.098)	100(3.94)	22	0.87	80	8.2	18	100	25.4*8	Pa66
TSG-110B	2.5(0.098)	110(4.33)	22	0.87	80	8.2	18	100	25.2*9.2	PA66
TSG-200A	2.5(0.098)	200(7.87)	53	2.09	80	8.2	18	100	25.4*8	PA66
TSG-210B	2.5(0.098)	210(8.27)	53	2.09	80	8.2	18	100	25.2*9.2	PA66
TSG-150B	3.6(0.142)	150(5.91)	36	1.42	180	18.2	42	100	24.3*14.5	PA66
TSG-200B	3.6(0.142)	200(7.87)	52	2.09	180	18.2	42	100	24.3*14.5	PA66
TSG-200C	4.8(0.189)	200(7.87)	52	2.09	180	22.6	50	100	13*26.8	Pa66
TSG-300C	4.8(0.189)	300(11.81)	84	3.31	222	22.6	50	100	13*26.8	PA66
TSG-370C	4.8(0.189)	370(14.57)	106	4.1	222	22.6	50	100	13*26.8	Pa66

PACKAGING

Our products have multiple packaging options and provide design support.

All-inclusive OPP/PP bag
Hollow OPP/PE bag
Barrel-packed
Blister packaging
Partitioned belt packaging
Boxed
Divider strip packaging divider box
Outer box

ACCESSORIES

Cable tie gun FSZ-800Z

The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.

Cable tie gun FSZ-800K

Cable tie gun TS-703

Cable tie gun ES-9

Cable tie gun ES-7

Technical Capability

The Locking Machanism of Cable Ties

This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties

Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.

Determination of Minimum Tensile Strength

The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E
