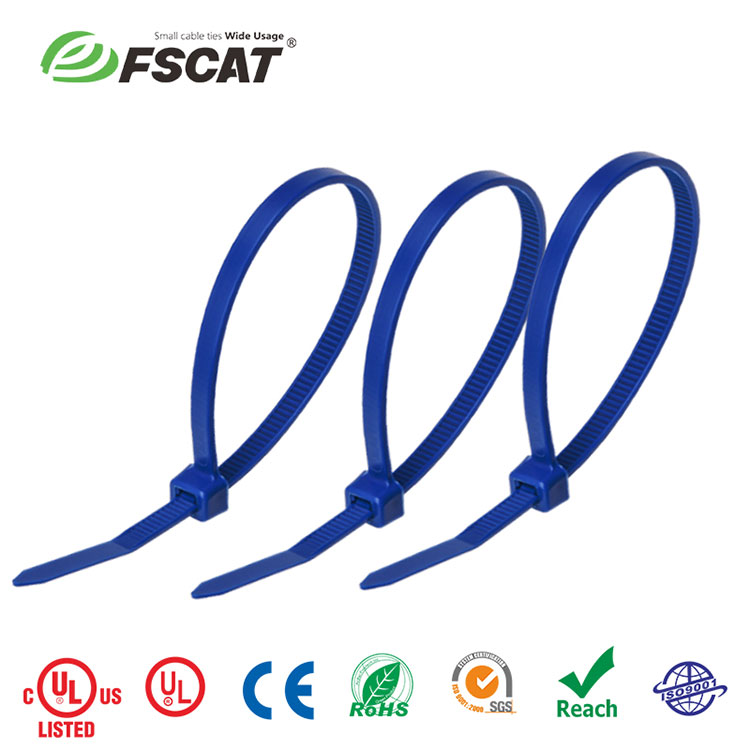

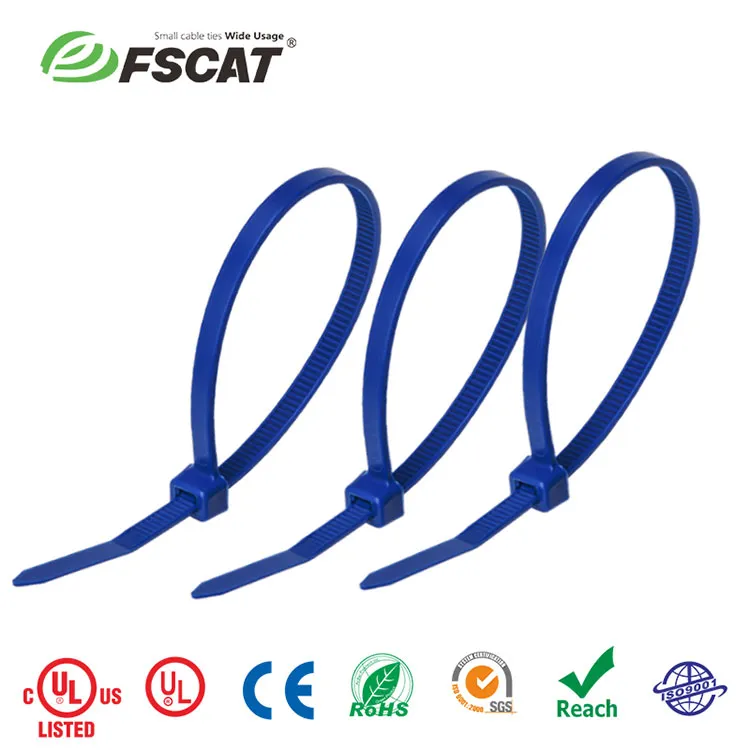

（Teflon）ETFE cable tie 338°F (170°C)

（Teflon）ETFT cable tie 338°F (170°C)
（Teflon）ETFT cable tie 338°F (170°C)
（Teflon）ETFT cable tie 338°F (170°C)
（Teflon）ETFT cable tie 338°F (170°C)
（Teflon）ETFT cable tie 338°F (170°C)

Material: ETFE
Material Brand: AGC
Flammability of Raw Material: UL 94-V0
Humidity Absorption: 0%
Installation Temperature: -50℃~+100℃
Working Temperature: -60℃~+170℃
Max Sustainable Temperature For Short Time: +170℃

If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

Application

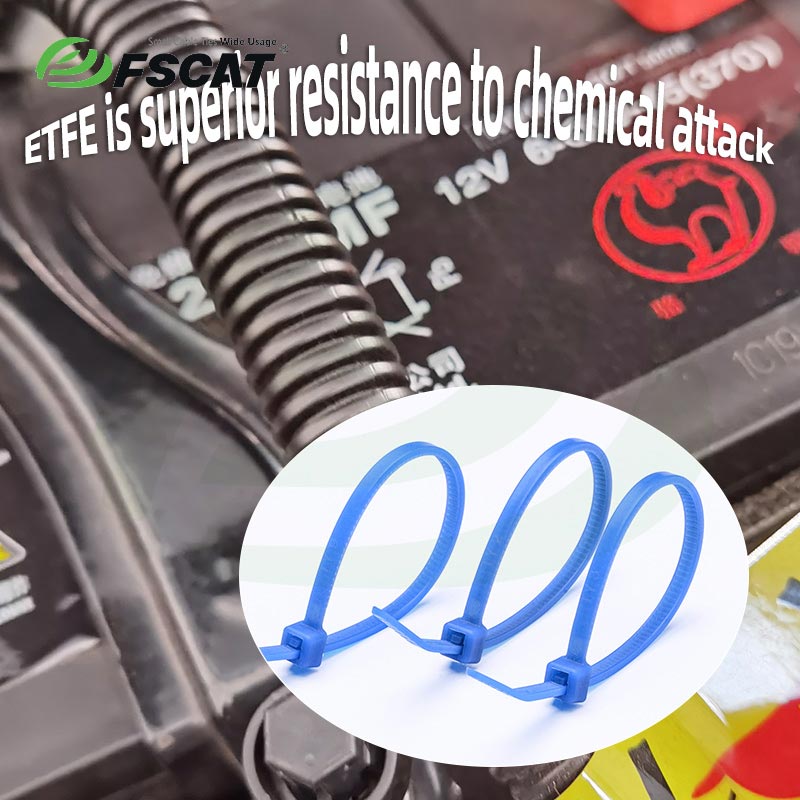

ETFE cable ties are made from a highly resistant material designed for extreme environments. They can withstand temperatures up to 170C and resist chemicals, gamma radiation, and UV exposure, making them ideal for aerospace, chemical, nuclear, and other demanding industrial applications. Their superior performance ensures stable cable and harness management and protection in harsh conditions. Whether in high temperatures, humidity, or corrosive environments, ETFE ties provide a reliable solution.

Tefzel® is a registered trademark of E.T. du Pont de Nemours and Company.



plane figure;CE,RoHS,REACH,ISO9001

Features & Benefits

ETFE cable ties are made from a highly resistant material designed for extreme environments. They can withstand temperatures up to 170°C and resist chemicals, gamma radiation, and UV exposure, making them ideal for aerospace, chemical, nuclear, and other demanding industrial applications. Their superior performance ensures stable cable and harness management and protection in harsh conditions. Whether in high temperatures, humidity, or corrosive environments, ETFE ties provide a reliable solution.



Tefzel® is a registered trademark of E.T. du Pont de Nemours and Company.

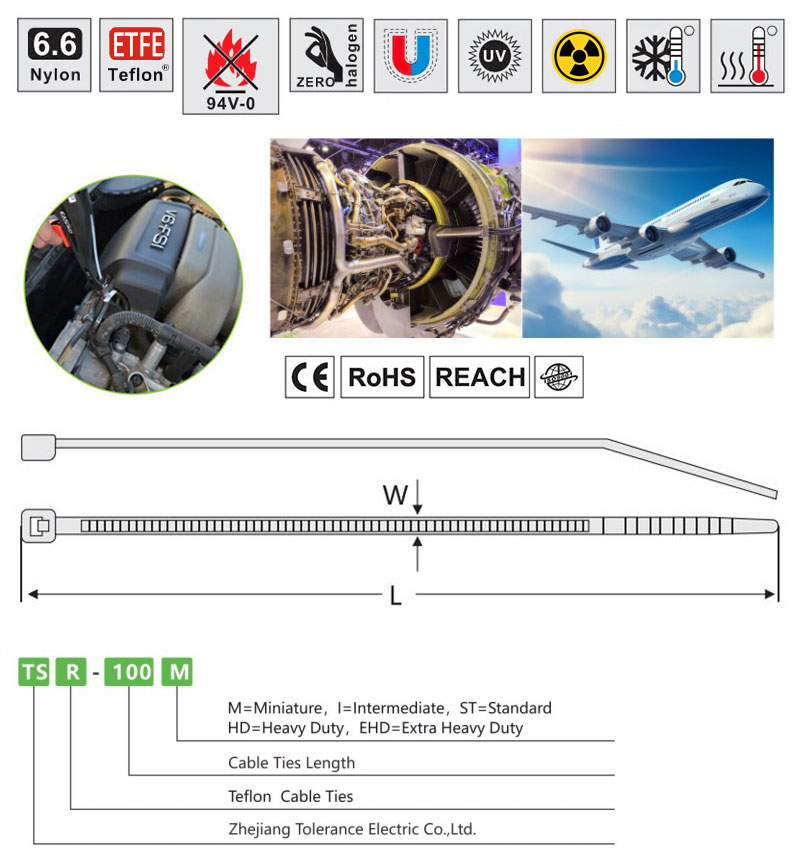

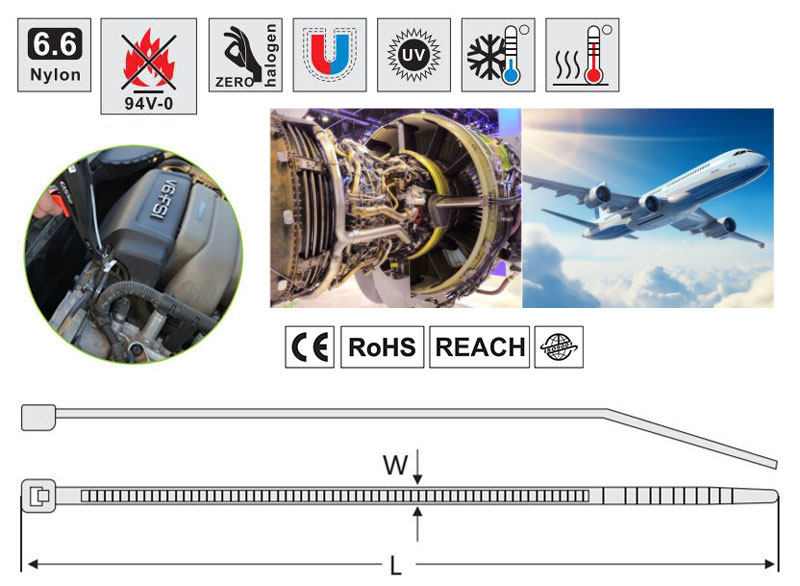

Specifications and Models

Technical Information

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Material
mm/inch mm/inch mm inch N kg ibs
TSR2.5-100M 2.5(0.098) 100(3.94) 22 0.87 80 8.2 100 ETFE
TSR2.5-1501 2.5(0.098) 150(5.91) 35 1.37 80 8.2 100 ETFE
TSR3.6-150I 3.6(0.142) 150(5.91) 35 1.37 180 18.2 100 ETFE
TSR3.6-2001 3.6(0.142) 200(7.87) 50 1.97 180 18.2 100 ETFE
TSR3.6-2501 3.6(0.142) 250(9.85) 65 2.56 180 18.2 100 ETFE
TSR3.6-3001 3.6(0.142) 300(11.82) 80 3.15 180 18.2 100 ETFE
TSR4.8-200ST 4.8(0.189) 200(7.87) 50 1.97 222 22.6 100 ETFE
TSR4.8-250ST 4.8(0.189) 250(14.57) 65 2.56 222 22.6 100 ETFE
TSR4.8-300ST 4.8(0.189) 300(11.82) 80 3.15 222 22.6 100 ETFE
TSR4.8-370ST 4.8(0.189) 370(14.57) 98 3.86 222 22.6 100 ETFE
TSR7.6-200HD 7.6(0.299) 200(7.87) 50 1.97 560 57.1 100 ETFE
TSR7.6-300HD 7.6(0.299) 300(11.82) 80 3.15 560 57.1 100 ETFE
TSR7.6-370HD 7.6(0.299) 370(14.57) 98 3.86 560 57.1 100 ETFE
PACKAGING

Our products have multiple packaging options and provide design support.

  • img

    Cable tie packaging

  • img

    Outer box packaging

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool
