Name: PEEK cable tie 500°F (260°C)
Brand: Tolerance
SKU: 00373
Rating: 4.9 (237 reviews)

Product Description

PEEK cable ties are ideal for harsh environments, offering chemical and radiation resistance, high-temperature tolerance up to 500°F (260°C), and meet MIL-P-46183 specifications with low smoke and toxicity.

Feature&benefits

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCE packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of nylon cable ties. Once the package is opened; please use out the cable ties as soon as possible.

Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Features & Benefits

High - performance PEEK cable ties are premium fasteners designed for use in extreme temperatures and harsh environments. Manufactured from high - performance polymers, these ties offer exceptional mechanical strength, chemical resistance, and temperature stability. They can operate at temperatures up to 500°F (260°C), making them ideal for high - temperature applications.

One significant advantage of PEEK cable ties is their excellent chemical corrosion resistance, making them suitable for use in harsh environments such as chemical plants and offshore oil drilling platforms. Additionally, they feature strong abrasion resistance, prolonging lifespan and reducing the need for frequent replacement, serving as a cost - effective alternative to metal ties.

Their lightweight design makes them excel in applications requiring weight reduction, such as aerospace and automotive industries, contributing to lower fuel consumption and improved performance. The self - locking design of PEEK cable ties ensures convenient installation and removal without tools, minimizing the risk of damage to surrounding materials.

In summary, high - performance PEEK cable ties are a reliable and cost - effective solution for securing and organizing cables and wires in demanding environments like aerospace, automotive, chemical processing, and oil and gas industries, thanks to their high - temperature performance, chemical resistance, lightweight structure, and abrasion resistance.

Specifications and Models

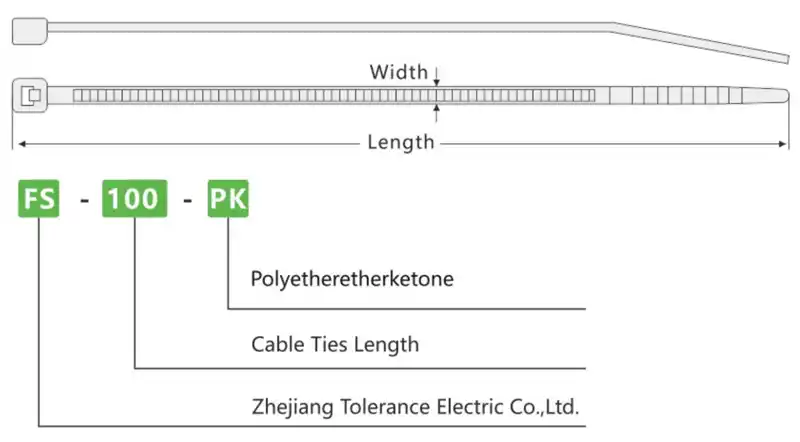

Technical Information

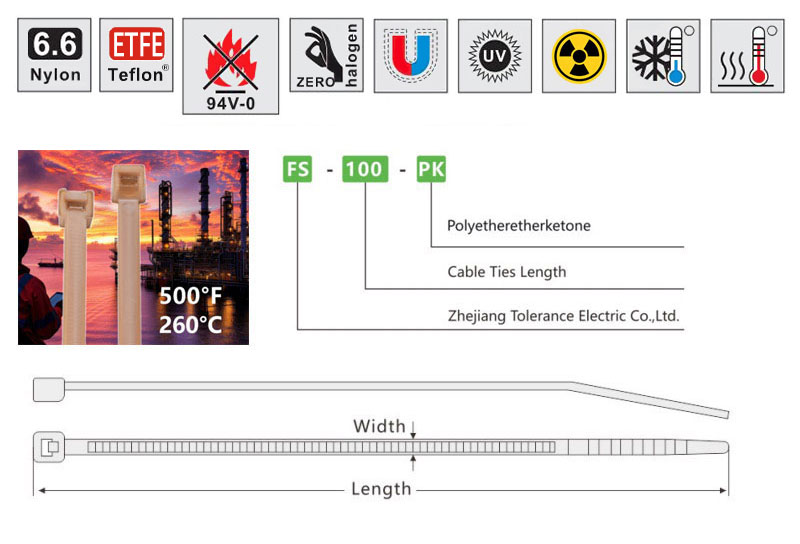

Picture	Item No.	Width	Length	Max.Bundle Dia.		Min.Tensile Strength			Package	Material
Picture	Item No.	mm/inch	mm/inch	mm	inch	N	kg	lbs	Pcs/Bag	Material
	FS-146-PK	3.1(0.12)	146(5.75)	35	1.35	155	15.8	35	100	PEEK
	FS-187-PK	5.1(0.20)	187(7.36)	47	1.85	667	68	150	100	PEEK

PACKAGING

Our products have multiple packaging options and provide design support.

All-inclusive OPP/PP bag
Hollow OPP/PE bag
Barrel-packed
Blister packaging
Partitioned belt packaging
Boxed
Divider strip packaging divider box
Outer box

ACCESSORIES

Cable tie gun FSZ-800Z

The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.

Cable tie gun FSZ-800K

Cable tie gun TS-703

Cable tie gun ES-9

Cable tie gun ES-7

Technical Capability

The Locking Machanism of Cable Ties

This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties

Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.

Determination of Minimum Tensile Strength

The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E
