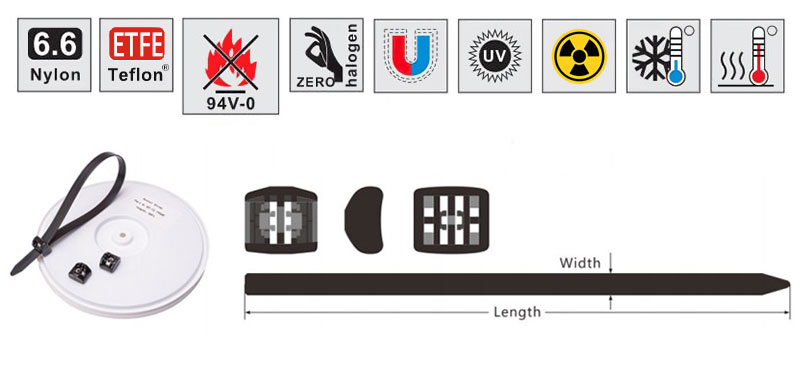

Acetal Weather Resistant Double Buckle Tie

Acetal Weather Resistant Double Buckle Tie
Acetal Weather Resistant Double Buckle Tie
If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

POM weather-resistant double-lock cable ties are ideal for outdoor self-supporting installations. They offer over 20 years of durability with excellent UV, chemical, and humidity resistance, and strong tensile strength up to 1112N.

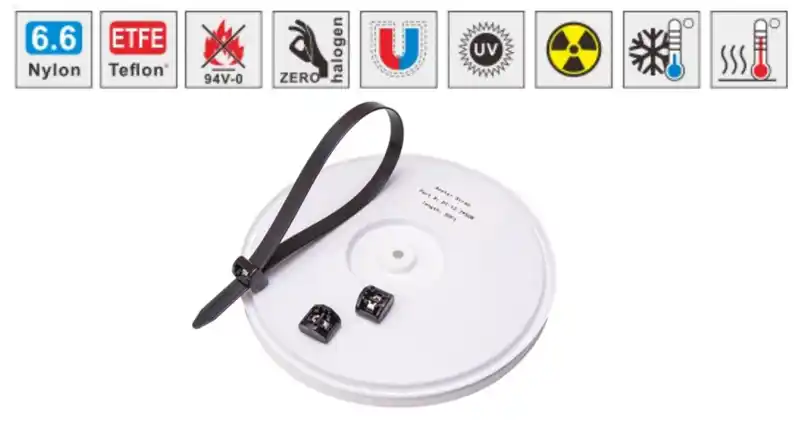

Feature&benefits

Features & Benefits

Acetal cable ties, made from high - quality polyoxymethylene (POM), offer outstanding performance for outdoor use, with a lifespan of over 20 years. They exhibit excellent resistance to UV rays, chemicals, and moisture, ensuring long - term durability in harsh environments. The strong tie body can withstand pulling forces up to 1112N, providing high impact resistance and mechanical strength.



The stainless steel double - buckle locking system enhances the long - lasting fastening capability, making them ideal for securing outdoor self - supporting equipment. These ties can be easily cut to the desired length for flexible installation, reducing operation time. Installation can be done manually without the need for complex tools.



Additionally, they can be paired with cable spacers for more efficient cable management. Made from POM for the tie body and 304 stainless steel for the locking mechanism, they operate in temperatures ranging from - 40°C to 85°C and meet the UL94 HB flame resistance standard. The ties are black and feature UV resistance, halogen - free properties, and high resistance to moisture and saltwater environments.



These characteristics make Acetal cable ties widely used in outdoor applications, including telecommunication, power line installations, and various other demanding environments.

Specifications and Models

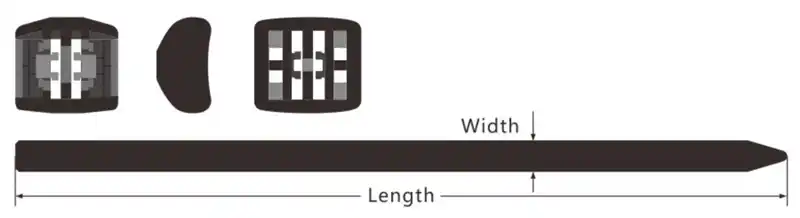

Technical Information

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Package Material
mm/inch mm/inch mm inch N kg lbs Pcs/Bag bags/Ctn.
TFT-203 12.7(0.5) 203(7.99) 62 2.44 1112 113 250 50 1000 Material-Strap&Head:
Toughened weather aceta

Material-Locking barb:
Marine grade, corrosion-
resistant 304 stainless steel
TFT-254 12.7(0.5) 254(10.00) 75 2.95 1112 113 250 50 1000
TFT-343 12.7(0.5) 343(13.50) 98 3.86 1112 113 250 50 1000
TFT-406 12.7(0.5) 406(16.00) 120 4.72 1112 113 250 50 500
TFT-457 12.7(0.5) 457(17.99) 135 5.31 1112 113 250 50 500
TFT-686 12.7(0.5) 686(27.01) 203 7.99 1112 113 250 25 500
TFT-1219 12.7(0.5) 1219(47.99) 355 13.98 1112 113 250 25 250
TFT-1346 12.7(0.5) 1346(52.99) 381 15 1112 113 250 25 250
TFT-2438 12.7(0.5) 1438(95.98) 711 27.99 1112 113 250 25
TFT-3658 12.7(0.5) 3658(144.02) 1117 43.98 1112 113 250 25
PACKAGING

Our products have multiple packaging options and provide design support.

  • img

    Cable tie packaging

  • img

    Outer box packaging

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool
