Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie
Double Locking Cable Tie

Double Locking Cable Tie

Flammability of raw material : UL 94 - V2
Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -10°C ~+85°C.
Working temperature:-40°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

Application

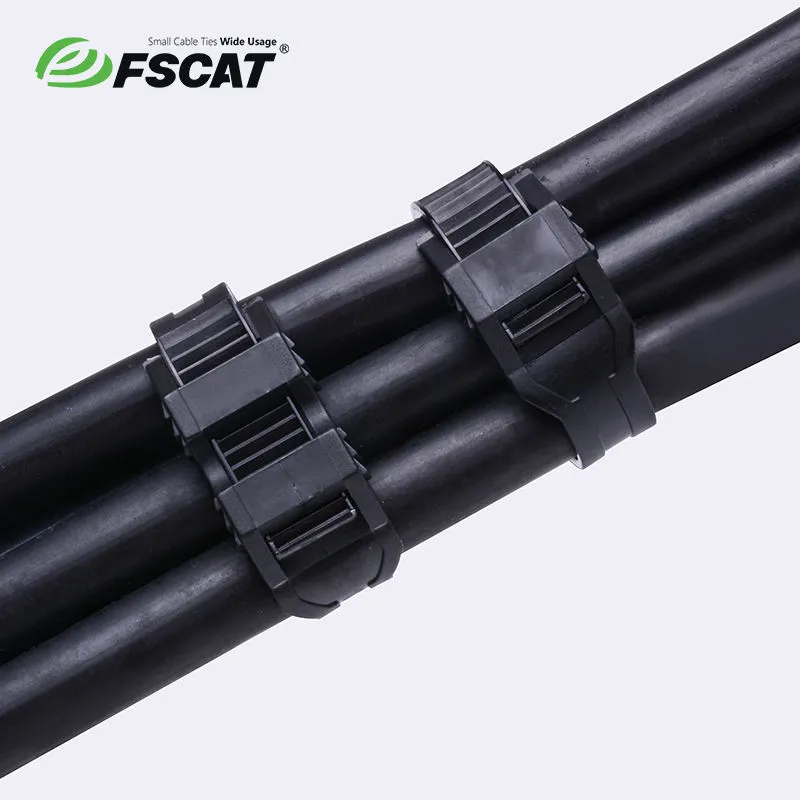

Double Locking Cable Ties Outside serrated function is designed to provide consistent strength in high-vibration environments, minimize abrasion on sensitive wires, cables and hoses. The gripping teeth face out instead of inside.,Double Locking Cable Ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

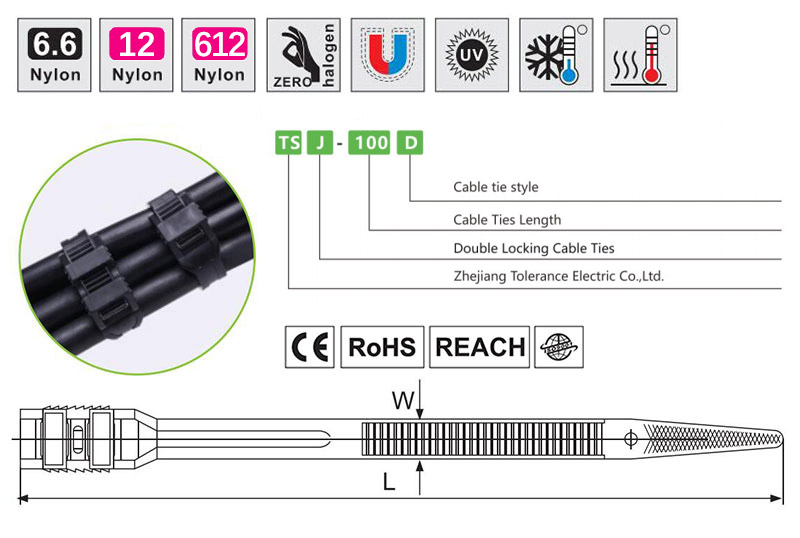

plane figure;CE,RoHS,REACH,ISO9001



USAGE: double locking, strong supporting capacity


Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

 Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Technical Information

MATERIAL: Polyamide 6.6
Material brand: China Huafeng158L;Radici A45L;Invista 4820L
Flammability of raw material : UL 94 - V2
Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -10°C ~+85°C.
Working temperature:-40°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.
Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.
Not resistant to phenols.
Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

Product Specification
Item No. Width Length Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch N ibs
TSJ-180D 6.0  0.236 180 7.09 40 1.57 20 0.79 350 77
TSJ-180DL 9.0  0.354 180 7.09 40 1.57 20 0.79 500 110
TSJ-260DL 260 10.24 62 2.44 20 0.79
TSJ-300DL 300 11.81 80 3.14 20 0.79
TSJ-350DL 350 13.78 93 3.66 20 0.79
TSJ-510DL 510 20.08 140 6.61 20 0.79
TSJ-760DL 760 29.92 220 8.66 20 0.79
Product Packaging
