Name: Double Head Cable Tie
Brand: Tolerance
SKU: 00011
Rating: 4.9 (56 reviews)

Product Description

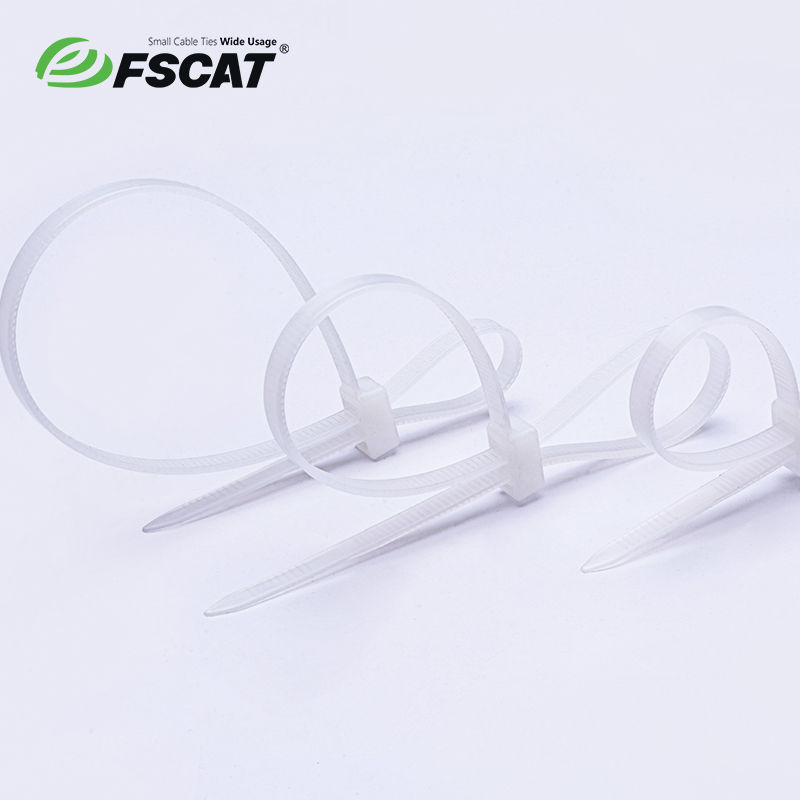

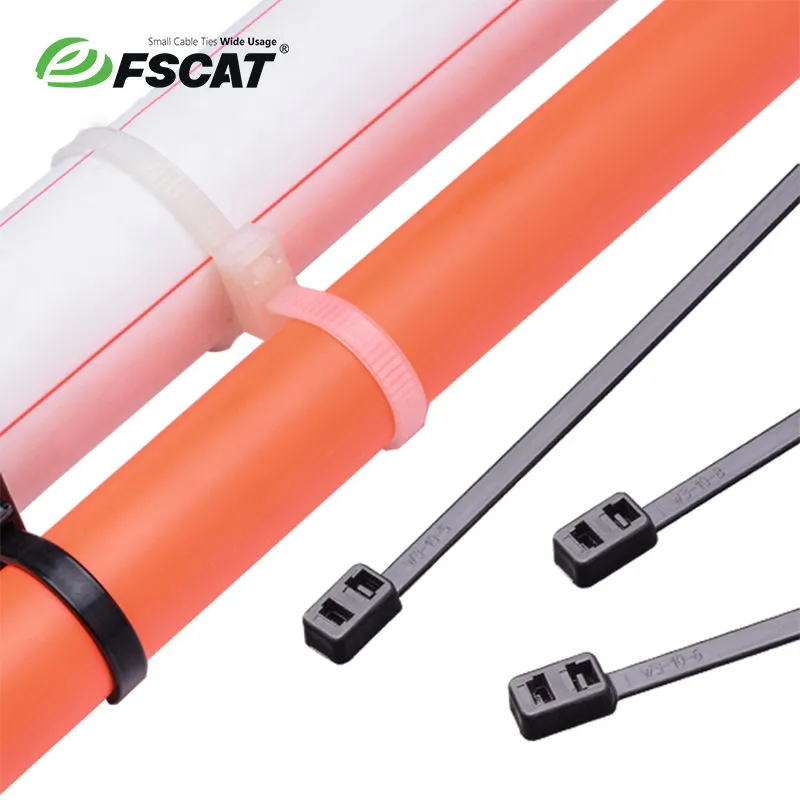

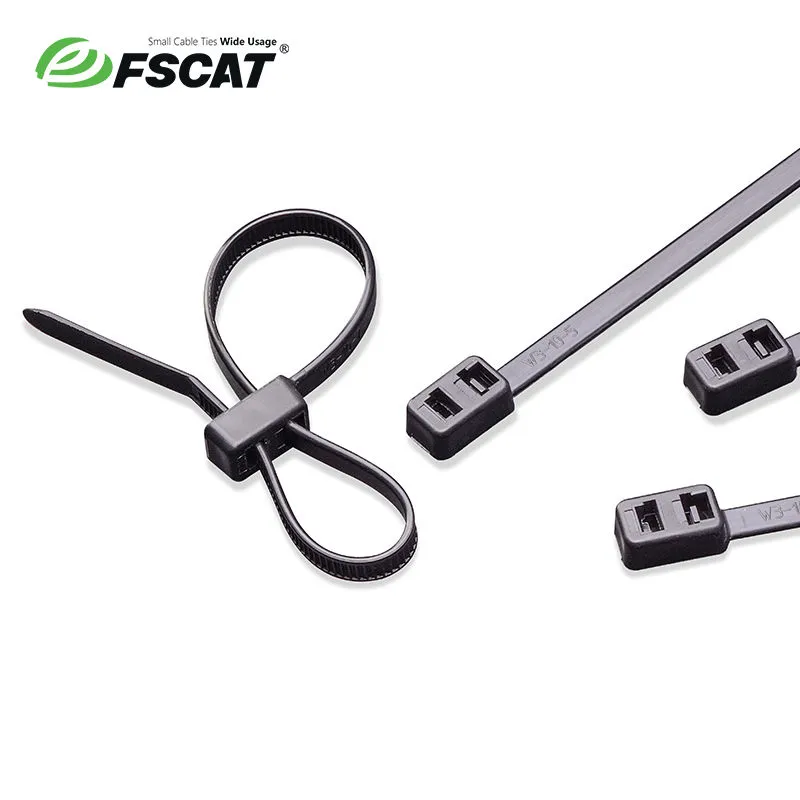

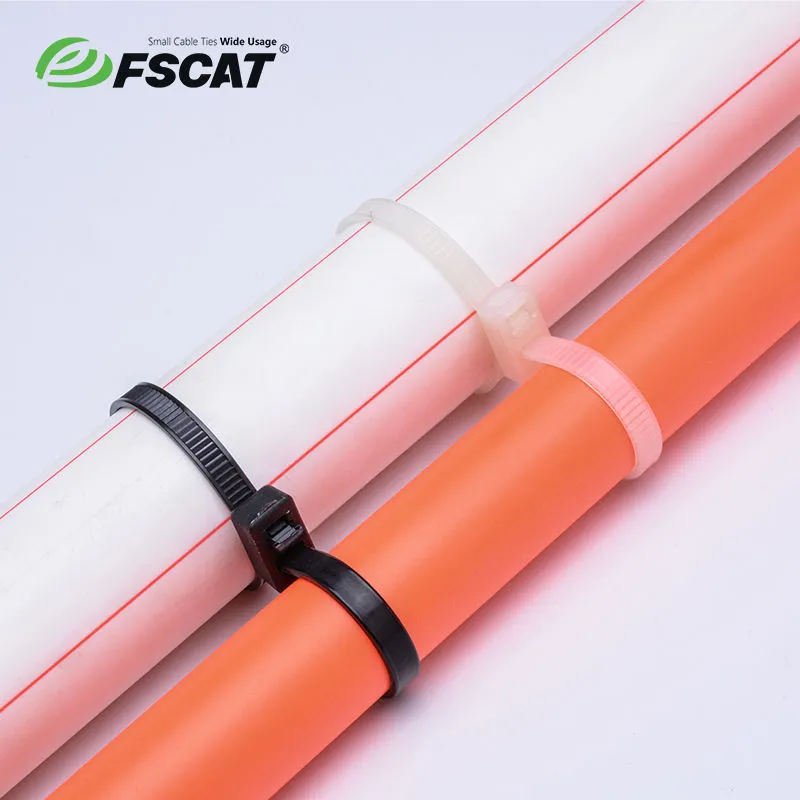

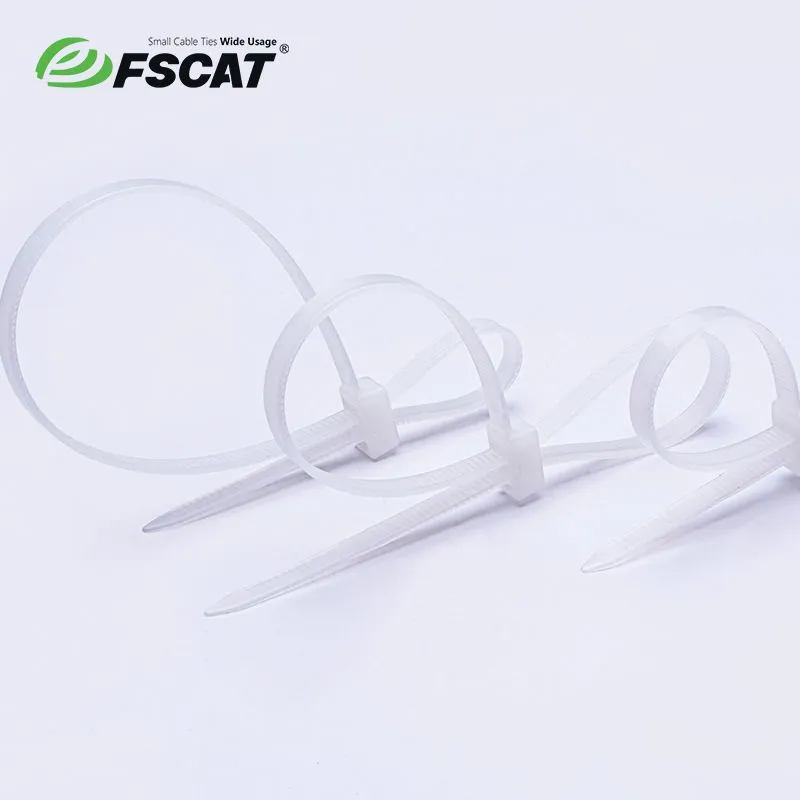

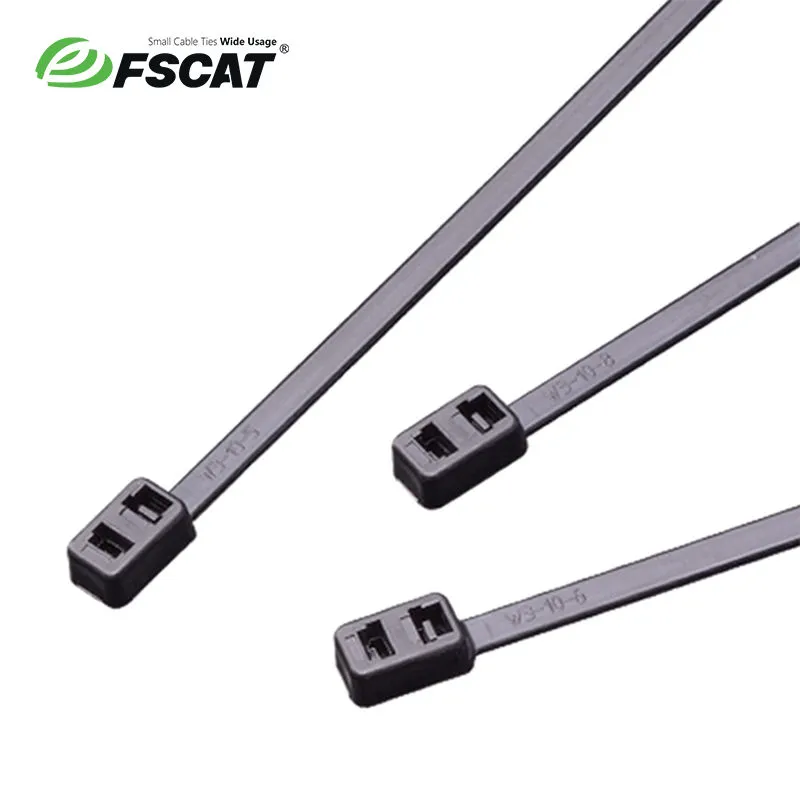

The heads of the double-headed strap are designed as two independent structures with opposite teeth. The strap of the same strap can pass through the two heads in turn to form two independent and connected strapping methods，double-headed, integrated design, easy to operate.Double Head Cable Ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

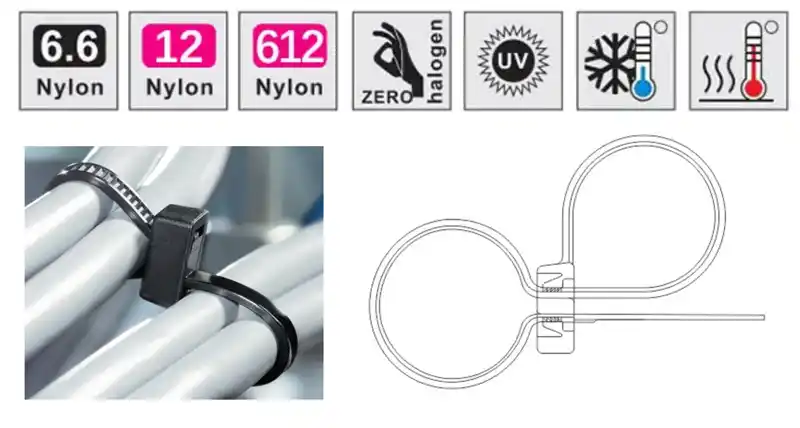

Feature&benefits

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCE packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.

Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Features & Benefits

The heads of the double - headed strap are designed as two independent structures with opposite teeth. The strap of the same strap can pass through the two heads in turn to form two independent and connected strapping methods, double - headed, integrated design, easy to operate. Double Head Cable Ties available in bulk 1,000 or 500 pieces bags or smaller 100 pieces bags.

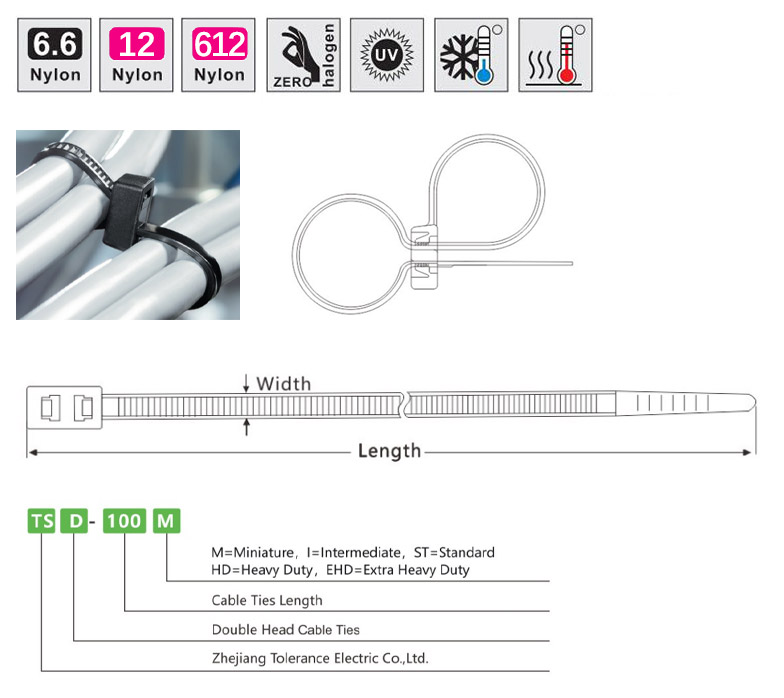

Specifications and Models

Technical Information

Item No.	Width	Length	Max.Bundle Dia.		Min.Tensile Strength			Package	Material
Item No.	mm/inch	mm/inch	mm	inch	N	kg	lbs	Pcs/Bag	Material
TSD-200ST	4.8(0.189)	200(7.87)	50	1.97	222	22.6	50	100	PA66
TSD-250ST	4.8(0.189)	250(9.84)	65	2.56	222	22.6	50	100	PA66
TSD-300ST	4.8(0.189)	300(11.81)	80	3.15	222	22.6	50	100	PA66
TSD-350ST	4.8(0.189)	350(13.78)	90	3.54	222	22.6	50	100	PA66
TSD-370ST	4.8(0.189)	370(14.57)	98	3.86	222	22.6	50	100	PA66

PACKAGING

Our products have multiple packaging options and provide design support.

Cable tie packaging
Outer box packaging

ACCESSORIES

Cable tie gun FSZ-800Z

The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.

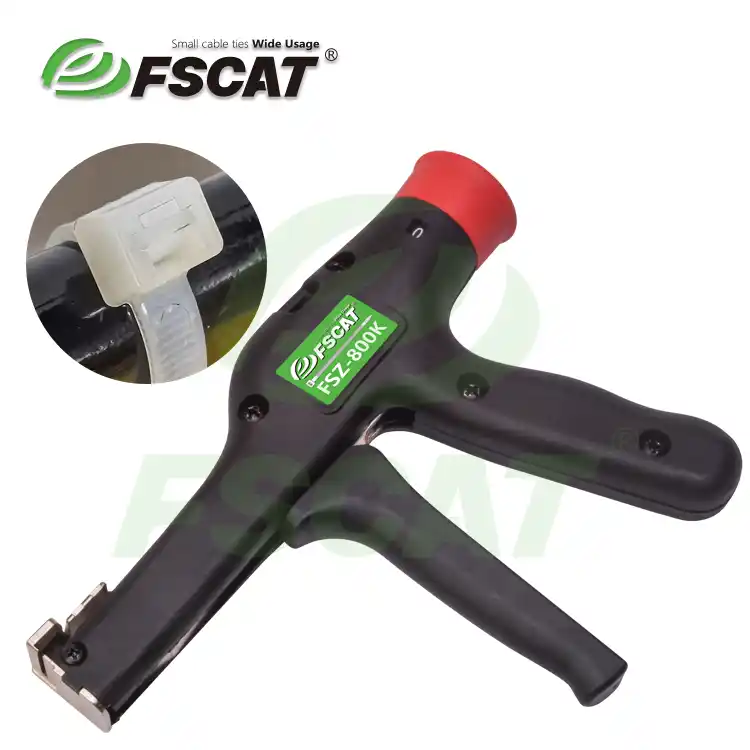

Cable tie gun FSZ-800K

Cable tie gun TS-703

Cable tie gun ES-9

Cable tie gun ES-7

Technical Capability

The Locking Machanism of Cable Ties

This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties

Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.

Determination of Minimum Tensile Strength

The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E
