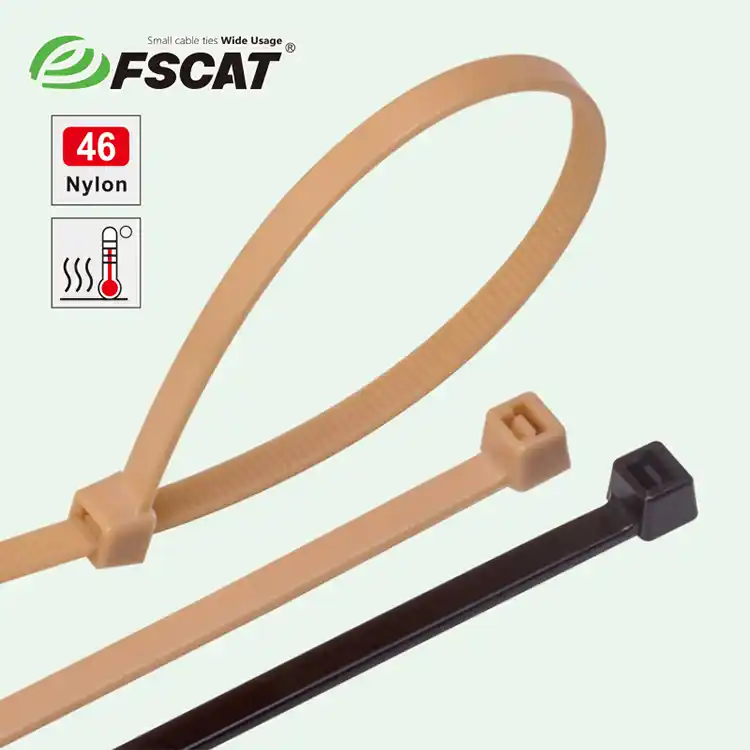

PA46 Cable Ties

PA46-Cable-Ties
PA46-Cable-Ties

•Cable tie for high temperature applications up to +165 °C (5000 h)
•Low smoke generation in the event of a fire
•Inside serrated cable tie offers strong hold around bundles
•Easy application either manually or with an application tool

If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

Nylon 46 (PA46) High-Temperature Cable Ties

All-Weather-Nylon-PA46-Self-Locking-Cable-Ties

Standard PA66 cable ties often lose strength, soften, or become brittle when exposed to continuous high temperatures. PA46 cable ties are designed to provide stable and reliable fastening performance in environments where conventional nylon materials fail.

Made from Polyamide 4.6, PA46 cable ties offer excellent heat resistance, supporting continuous operating temperatures from -40°C to 150°C, with short-term resistance up to 170–200°C. Thanks to the material’s high crystallinity, mechanical strength and rigidity remain stable at elevated temperatures.

PA46 cable ties are commonly used in automotive engine compartments, railway systems, industrial control cabinets, and electrical equipment where long-term thermal stability is required.

Multiple sizes and tensile ratings are available. OEM labeling, custom packaging, and project-based supply can be supported. Technical data and material documentation are available for engineering evaluation and approval.

Features & Benefits
Specifications and Models

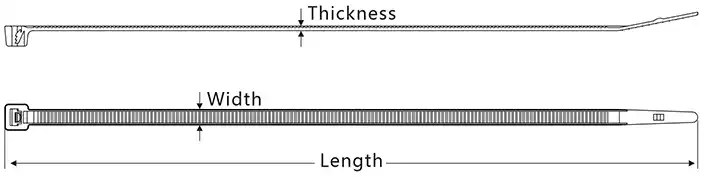

Nylon-PA46-Heavy-Duty-UV-Stabilized-Cable-Ties

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Package Material Hand Tool
mm/inch mm/inch mm inch N kg Lbs Pcs/Bag
FS-100M-PA46 2.5(0.098) 100(3.94) 22 0.87 117 12 26 100 PA46
FS-150M-PA46 2.5(0.098) 150(5.91) 35 1.37 117 12 26 100 PA46
FS-150I-PA46 3.6(0.142) 150(5.91) 35 1.37 275 28 62 100 PA46
FS-200I-PA46 3.6(0.142) 200(7.87) 50 1.97 275 28 62 100 PA46
FS-250I-PA46 3.6(0.142) 250(9.85) 65 2.56 275 28 62 100 PA46
FS-300I-PA46 3.6(0.142) 300(11.82) 80 3.15 275 28 62 100 PA46
FS-200ST-PA46 4.8(0.189) 200(7.87) 50 1.97 353 36 79 100 PA46
FS-250ST-PA46 4.8(0.189) 250(9.85) 65 2.56 353 36 79 100 PA46
FS-300ST-PA46 4.8(0.189) 300(11.82) 80 3.15 353 36 79 100 PA46
FS-370ST-PA46 4.8(0.189) 370(14.57) 98 3.86 353 36 79 100 PA46
FS-200HD-PA46 7.6(0.299) 200(7.87) 50 1.97 735 75 165 100 PA46
FS-300HD-PA46 7.6(0.299) 300(11.82) 80 3.15 735 75 165 100 PA46
FS-370HD-PA46 7.6(0.299) 370(14.57) 98 3.86 735 75 165 100 PA46
PACKAGING

Our products have multiple packaging options and provide design support.

  • All-inclusive OPP-PP bag

    All-inclusive OPP/PP bag

  • Hollow OPP-PE bag

    Hollow OPP/PE bag

  • Barrel-packed

    Barrel-packed

  • Blister packaging

    Blister packaging

  • Partitioned belt packaging

    Partitioned belt packaging

  • Boxed

    Boxed

  • Divider strip packaging divider box

    Divider strip packaging divider box

  • Outer box

    Outer box

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool




FAQs
If you have special customization needs or need to lower the price for bulk purchases, please contact us at Get in Touch.
GET IN TOUCH
Perhaps you have other needs?
We partner with you to transform specific application challenges into precision-engineered cable tie solutions, offering complete customization across:
Specialized Head Designs
tailored for your application needs
Custom Material Formulations
optimized for performance
Branded Packaging Solutions
enhancing your brand identity
Exact Color Matching
meeting your visual requirements
Similar products
94V-0 Grade Cable Ties
94V-0 Grade Cable Ties
V0 flame-retardant cable ties are widely used in environments requiring high fire resistance, such as electronics, data centers, automotive, and electrical equipment. Their V0 rating ensures quick self-extinguishing, reducing fire spread and enhancing safety.
Heat Stabilized Cable Ties
Heat Stabilized Cable Ties
High-temperature cable ties are used in aerospace, automotive, industrial equipment, and power plants. They provide stability and strength in extreme heat, making them ideal for cable management and fastening in high-temperature environments.
UV cable tie
UV cable tie
UV-resistant cable ties are perfect for outdoor use in solar power stations, communication towers, construction, and cable management. Their UV resistance ensures they remain durable and strong under prolonged sunlight exposure.
Low temperature tie
Low temperature tie
Cold-resistant cable ties are ideal for cold environments like cold chain logistics, refrigeration, outdoor cable management, and industrial applications in cold regions. They remain flexible and strong in low temperatures, ensuring reliable fastening and stability.
Metal Detectable Cable Ties
Metal Detectable Cable Ties
Metal detectable cable ties are widely used in food processing, pharmaceuticals, and medical equipment for bundling and securing items. Their metal content allows detection by metal detectors, preventing contamination and ensuring product quality and safety.
