Name: Nylon 612 Cable Ties
Brand: Tolerance
SKU: 00397
Rating: 4.9 (249 reviews)

Product Description

Industrial Nylon 612 (PA612) Cable Ties for Long-Term Outdoor and Solar Applications

All-Weather-Nylon-612-Self-Locking-Cable-Ties

Product Overview

Nylon 612 (PA612) cable ties are designed for long-term outdoor cable management in environments where standard nylon materials may show early aging. They are widely used in utility-scale solar PV systems, coastal infrastructure, and marine installations, where resistance to UV exposure, moisture, and chemical corrosion is critical.
PA612 offers a unique material balance of excellent UV resistance, low moisture absorption, and high chemical stability, helping ensure consistent fastening performance under prolonged outdoor exposure. Compared with conventional polyamides, PA612 maintains dimensional stability and mechanical reliability in demanding environments involving sunlight, humidity, and salt spray.

Typical Applications

PA612 nylon cable ties are commonly used in:

Utility-scale solar PV installations

Outdoor electrical and power distribution systems

Coastal and marine infrastructure

Industrial facilities exposed to UV, humidity, and chemicals

Features & Benefits

Designed for Long-Term Outdoor and Solar Installations

PA612 nylon cable ties are well-suited for applications requiring a long service life with minimal maintenance. The material’s resistance to ultraviolet radiation and environmental aging supports “install and leave” use cases, particularly in renewable energy and outdoor infrastructure projects.
In solar PV systems and exposed installations, PA612 cable ties help maintain secure bundling over time without premature embrittlement or loss of holding strength, even under continuous outdoor conditions.

Material Properties of PA612 Nylon Cable Ties

PA612 is characterized by low moisture absorption, typically around 2.7%–2.8% at 23°C and 50% relative humidity, which helps reduce expansion and contraction compared with standard nylon materials. This property contributes to stable fastening performance across humid, dry, and coastal climates.
The material also provides excellent chemical resistance, including resistance to salt spray, zinc chloride, and common industrial chemicals. This reduces the risk of stress cracking when cable ties are installed on galvanized steel structures or metal frames commonly used in solar and infrastructure projects.

Performance Stability in Harsh Environments

The polymer structure of PA612 offers improved dimensional and mechanical stability under long-term environmental stress. Unlike blended materials, these cable ties are manufactured from PA612 as a single polymer, ensuring consistent material behavior throughout extended service life.
This stability allows PA612 nylon cable ties to retain strength, flexibility, and secure locking performance under changing outdoor conditions, including temperature variation, humidity, and chemical exposure.

Specifications and Models

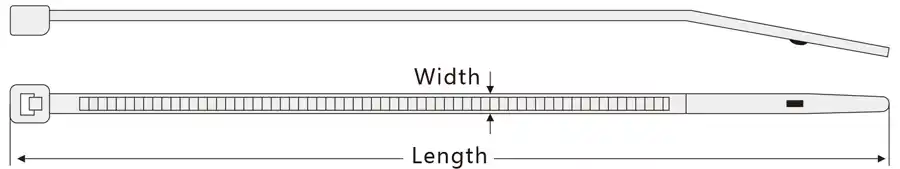

Nylon-12-Heavy-Duty-UV-Stabilized-Cable-Ties

Excellent

Good

Medium

Product Name	FSCAT Cable Ties
Type	TST	FST	FS	FS	FS
Material	Polyamide 6.6	Polyamide 6.6	Polyamide 612	Polyamide 12	Polyamide 6.6HS
Operating Temperature
Max.	85℃(185℉)	85℃(185℉)	85℃(185℉)	85℃(185℉)	110℃(230℉)
Min.	-40℃(-40℉)	-40℃(-40℉)	-40℃(-40℉)	-40℃(-40℉)	-40℃(-40℉)
UV light/ozone
Oils and greases
Solvents
Petrol
Flammability	UL94V-2	UL94V-2	UL94VHB	UL94VHB	UL94HB

Item No.	Width	Length	Max.Bundle Dia.		Min.Tensile Strength			Package	Material	Hand Tool
Item No.	mm/inch	mm/inch	mm	inch	N	kg	Lbs	Pcs/Bag	Material	Hand Tool
FS-100M-PA612	2.5(0.098)	100(3.94)	22	0.87	80	8.2	18	100	PA612
FS-120M-PA612	2.5(0.098)	120(4.72)	27	1.06	80	8.2	18	100	PA612
FS-150M-PA612	2.5(0.098)	150(5.91)	35	1.37	80	8.2	18	100	PA612
FS-160M-PA612	2.5(0.098)	160(6.30)	39.8	1.57	80	8.2	18	100	PA612
FS-200M-PA612	2.5(0.098)	200(7.87)	50	1.97	80	8.2	18	100	PA612
FS-150I-PA612	3.6(0.142)	150(5.91)	35	1.38	180	18.2	42	100	PA612
FS-200I-PA612	3.6(0.142)	200(7.87)	50	1.97	180	18.2	42	100	PA612
FS-250I-PA612	3.6(0.142)	250(9.84)	65	2.56	180	18.2	42	100	PA612
FS-280I-PA612	3.6(0.142)	280(11.02)	70	2.76	180	18.2	42	100	PA612
FS-300I-PA612	3.6(0.142)	300(11.81)	80	3.15	180	18.2	42	100	PA612
FS-350I-PA612	3.6(0.142)	350(13.78)	100	3.94	180	18.2	42	100	PA612
FS-370I-PA612	3.6(0.142)	370(14.57)	105	4.13	180	18.2	42	100	PA612
FS-400I-PA612	3.6(0.142)	400(15.75)	114.5	4.51	180	18.2	42	100	PA612
FS-200ST-PA612	4.8(0.189)	200(7.87)	50	1.97	222	22.6	50	100	PA612
FS-250ST-PA612	4.8(0.189)	250(9.84)	65	2.56	222	22.6	50	100	PA612
FS-280ST-PA612	4.8(0.189)	280(11.03)	70	2.76	222	22.6	50	100	PA612
FS-300ST-PA612	4.8(0.189)	300(11.81)	80	3.15	222	22.6	50	100	PA612
FS-350ST-PA612	4.8(0.189)	350(13.78)	90	3.54	222	22.6	50	100	PA612
FS-370ST-PA612	4.8(0.189)	370(14.57)	98	3.86	222	22.6	50	100	PA612
FS-380ST-PA612	4.8(0.189)	380(14.96)	102	4.02	222	22.6	50	100	PA612
FS-400ST-PA612	4.8(0.189)	400(15.75)	105	4.13	222	22.6	50	100	PA612
FS-430ST-PA612	4.8(0.189)	430(16.93)	120	4.72	222	22.6	50	100	PA612
FS-450ST-PA612	4.8(0.189)	450(17.72)	130	5.12	222	22.6	50	100	PA612
FS-500ST-PA612	4.8(0.189)	500(19.96)	150	5.91	222	22.6	50	100	PA612
FS-200HD-PA612	7.6(0.299)	200(7.87)	50	1.97	560	55.6	130	100	PA612
FS-250HD-PA612	7.6(0.299)	250(9.84)	65	2.56	560	55.6	130	100	PA612
FS-300HD-PA612	7.6(0.299)	300(11.81)	80	3.15	560	55.6	130	100	PA612
FS-350HD-PA612	7.6(0.299)	350(13.78)	90	3.54	560	55.6	130	100	PA612
FS-370HD-PA612	7.6(0.299)	370(14.57)	98	3.86	560	55.6	130	100	PA612
FS-380HD-PA612	7.6(0.299)	380(14.96)	102	4.02	560	55.6	130	100	PA612
FS-400HD-PA612	7.6(0.299)	400(15.75)	105	4.13	560	55.6	130	100	PA612
FS-430HD-PA612	7.6(0.299)	430(16.93)	120	4.72	560	55.6	130	100	PA612
FS-450EHD-PA612	7.6(0.299)	450(17.72)	130	5.12	560	55.6	130	100	PA612
FS-500EHD-PA612	7.6(0.299)	500(19.96)	150	5.91	560	55.6	130	100	PA612

PACKAGING

Our products have multiple packaging options and provide design support.

All-inclusive OPP/PP bag
Hollow OPP/PE bag
Barrel-packed
Blister packaging
Partitioned belt packaging
Boxed
Divider strip packaging divider box
Outer box

ACCESSORIES

Cable tie gun FSZ-800Z

The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.

Cable tie gun FSZ-800K

Cable tie gun TS-703

Cable tie gun ES-9

Cable tie gun ES-7

Technical Capability

The Locking Machanism of Cable Ties

This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties

Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.

Determination of Minimum Tensile Strength

The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E
