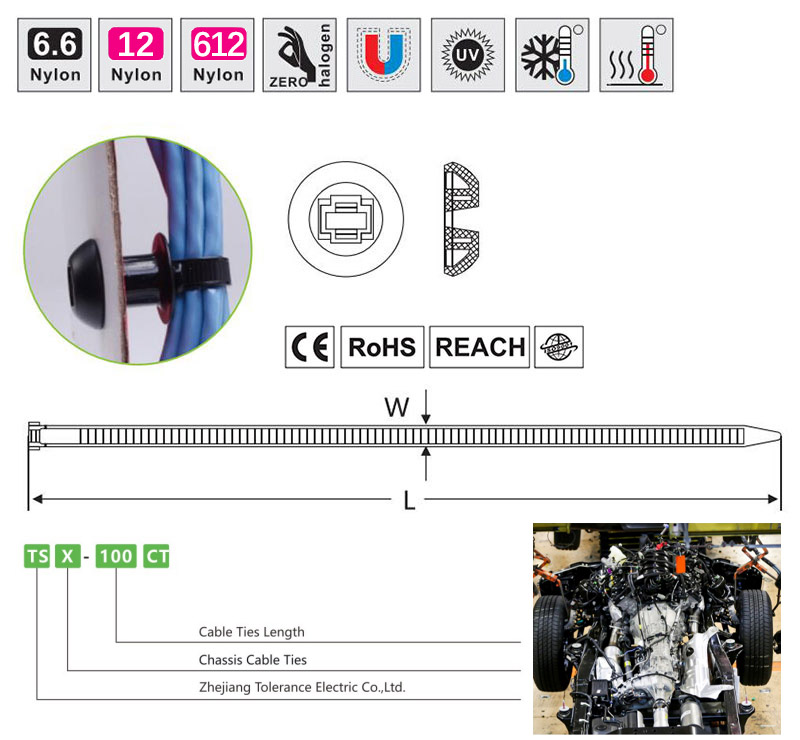

Specifically designed for installing automobile chassis wiring harnesses.

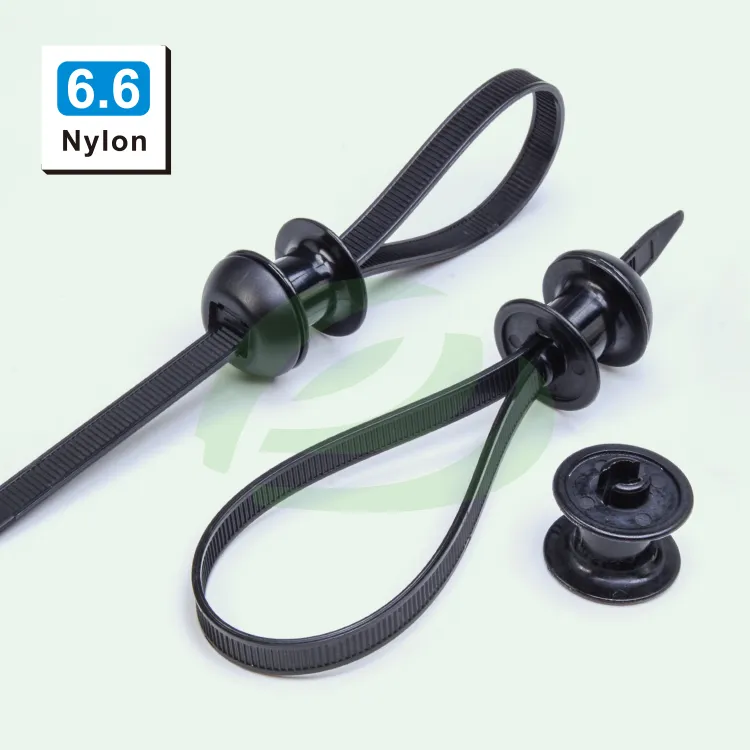

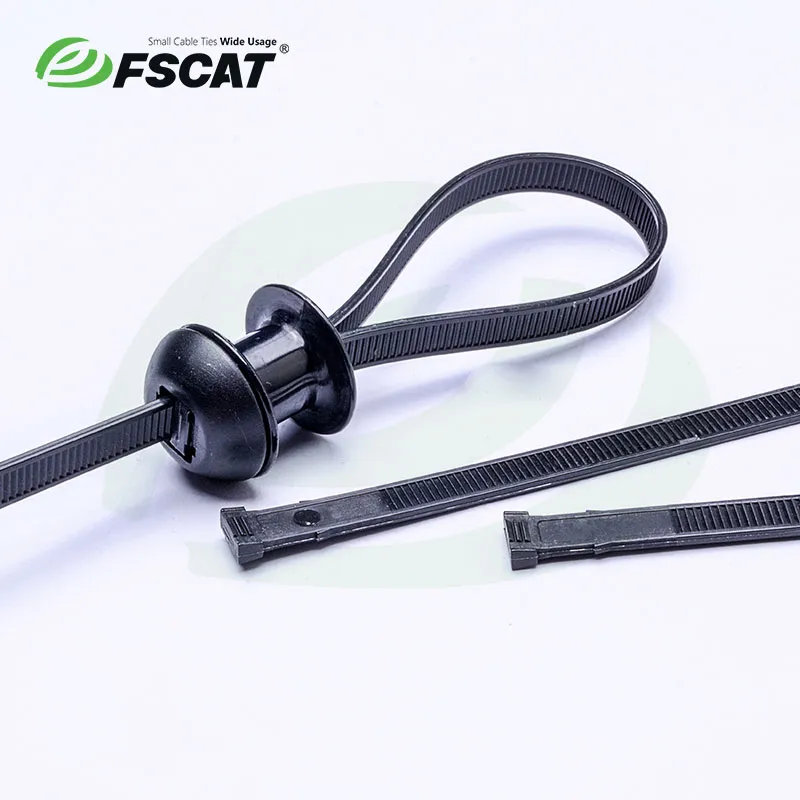

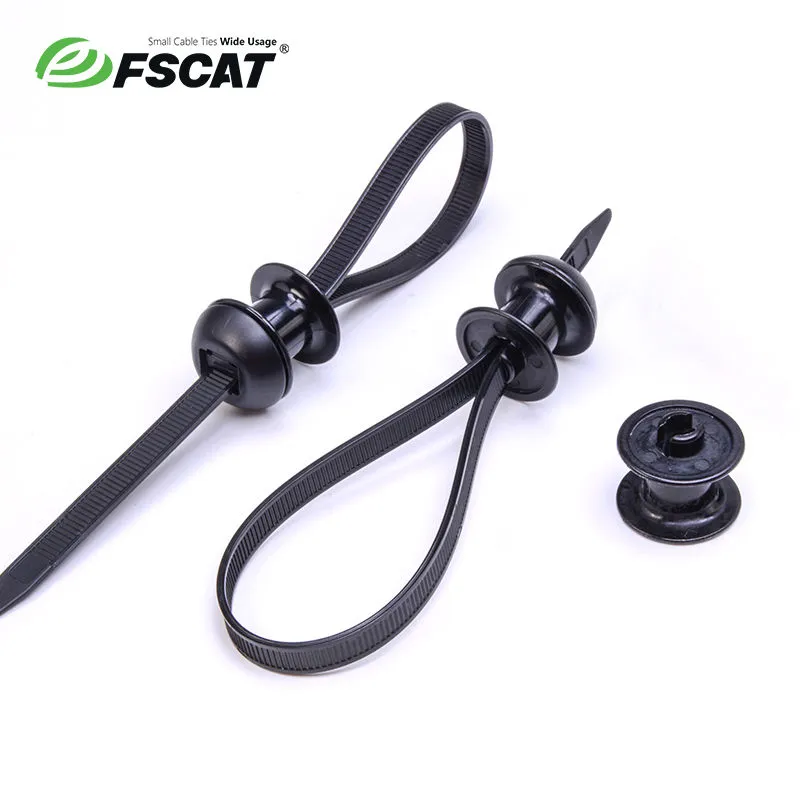

Head and belt body are separate structures.

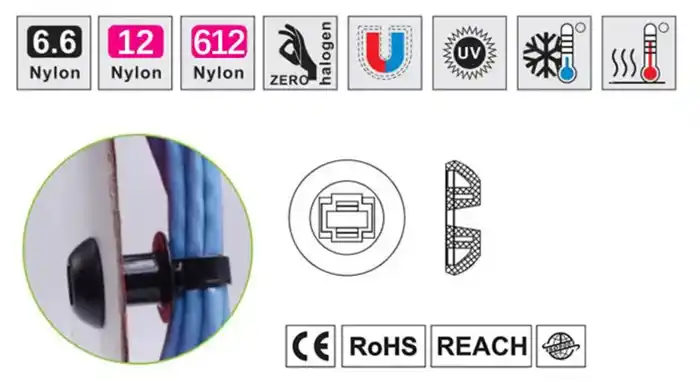

Includes spare isolation accessories for specialized wiring harness parts.
Widely used in automotive chassis wiring assembly.
Application

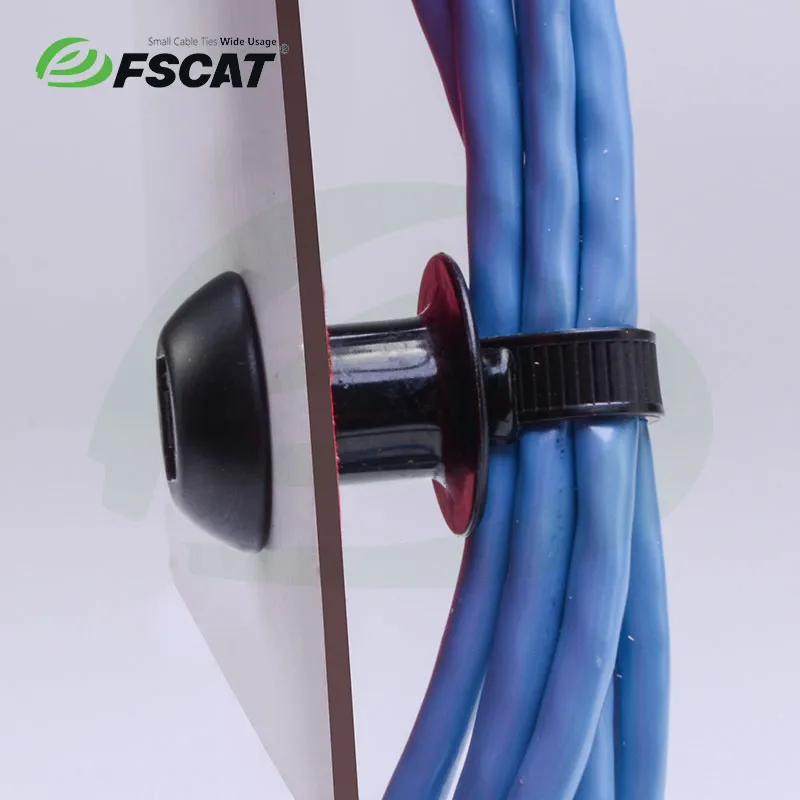

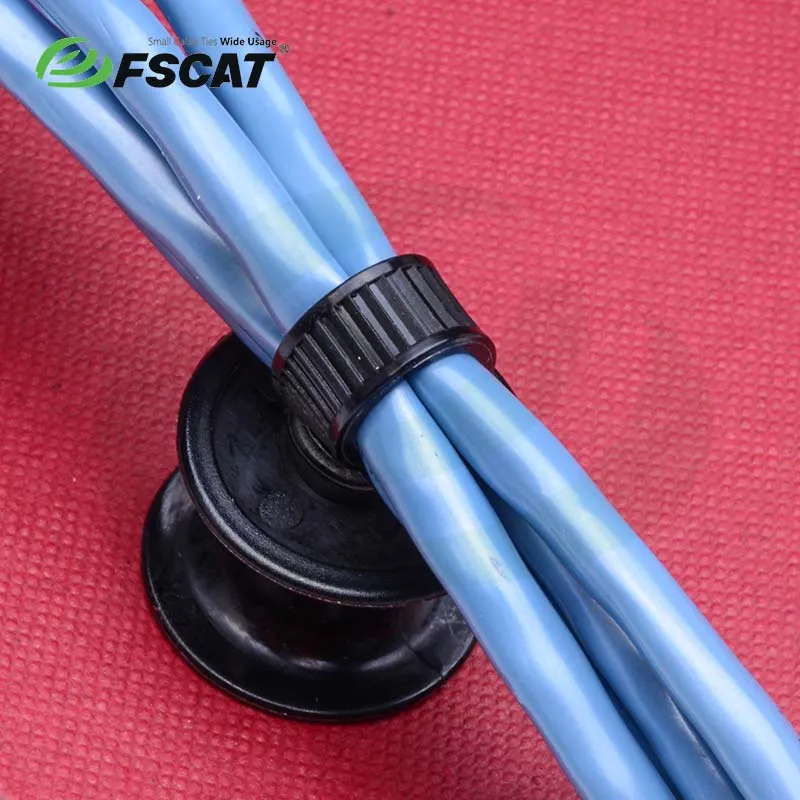

Chassis cable ties is a special cable tie designed for the installation of automobile chassis wiring harness. The head and the belt body are separated structures; there are spare isolation accessories to facilitate the use of special parts of the wiring harness; the chassis cable ties is widely used in the automobile chassis wiring harness In the assembly process，Chassis cable ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.
Nyon products
Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.
packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.
Here are our suggestion for the cable tie store:
MATERIAL: Polyamide 6.6
Material brand: /
Flammability of raw material : UL 94 - V2
Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -0°C ~+85°C.
Working temperature:-20°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.
Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.
Not resistant to phenols.

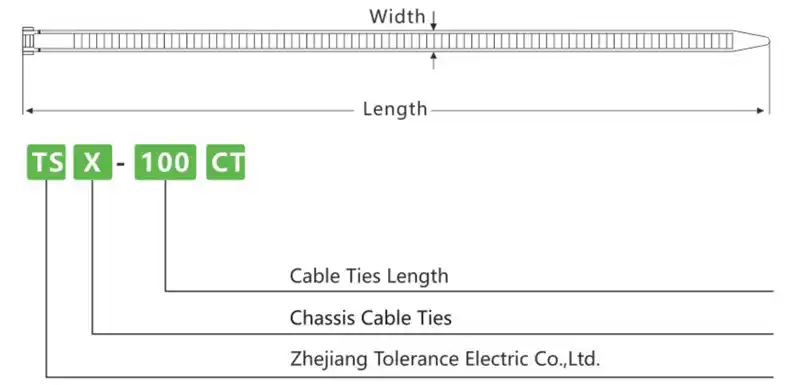

| Item No. | Width | Length | Max.Bundle Dia. | Min.Tensile Strength | Package | Material | |||
| mm/inch | mm/inch | mm | inch | N | kg | lbs | Pcs/Bag | ||
| TSX-250CT | 7.5(0.295) | 250(9.84) | 60 | 2.36 | 500 | 51 | 110 | 100 | PA6 |
| TSX-280CT | 7.5(0.295) | 280(11.02) | 65 | 2.56 | 500 | 51 | 110 | 100 | PA6 |
