Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -10°C ~+85°C.
Working temperature:-40°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.
Certifications
For lower prices on bulk purchases, please contact us at
W12.4mm Type
ADHERING TO THE HIGHEST STANDARDS OF EXCELLENCE

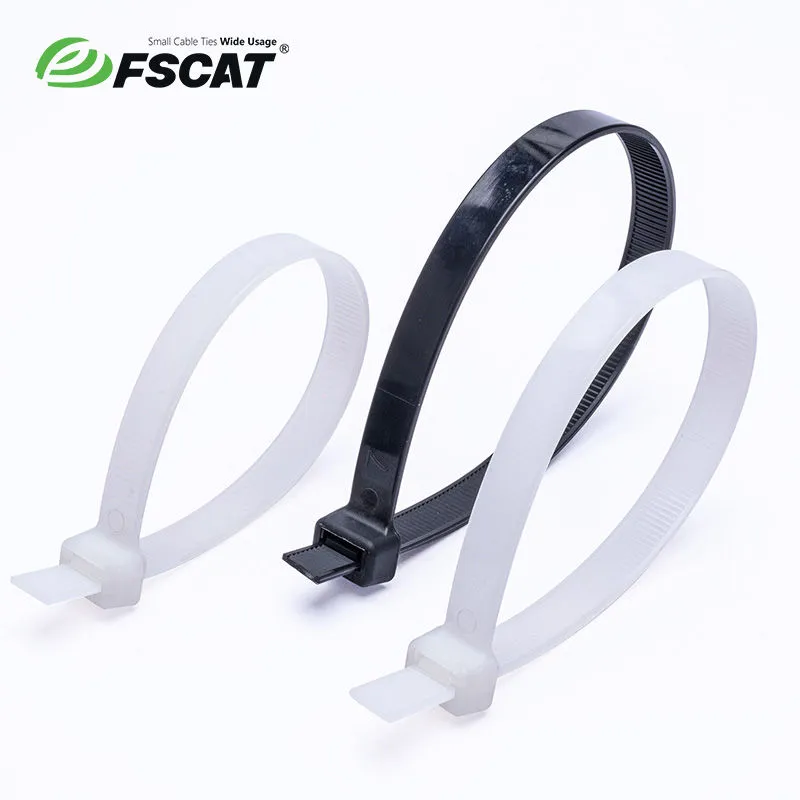

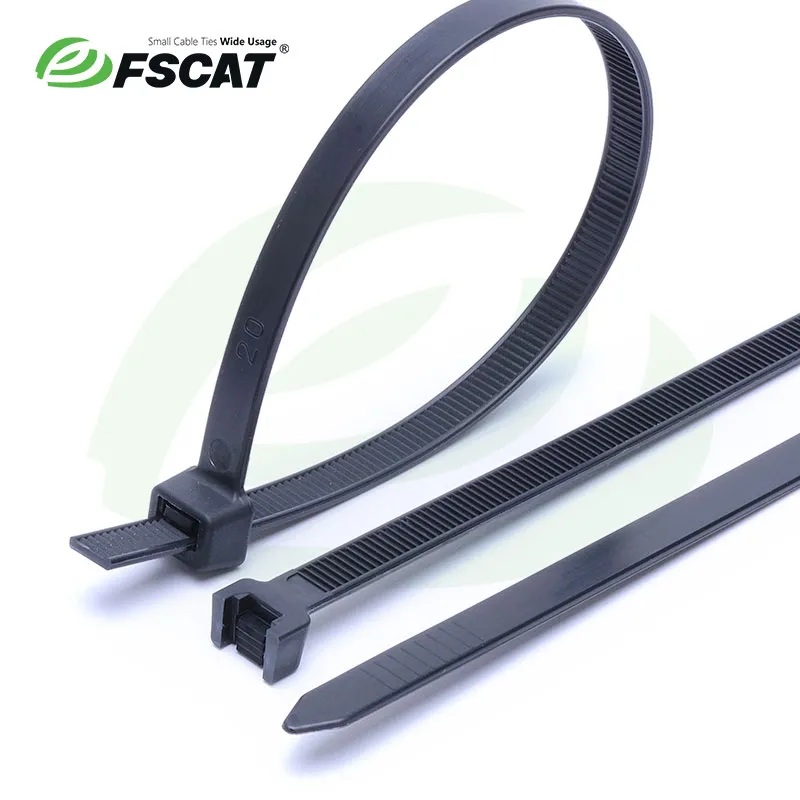

Ultra Heavy Duty Cable Ties are the strongest in the industry with the capability of supporting bundles up to 112KG(250 lbs). The one piece construction allows for consistent performance and reliability. Available lengths of the Ultra Heavy Duty Cable Ties range from 230MM--1020MM( 9”--40”). Natural colored ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Cable Tie Express stocks the 112KG(250 lbs) cable ties in standard packages of 50. Ultra Heavy Duty Cable Ties may also go by the names ultra-heavy duty zip ties, tie wraps, or wire ties.

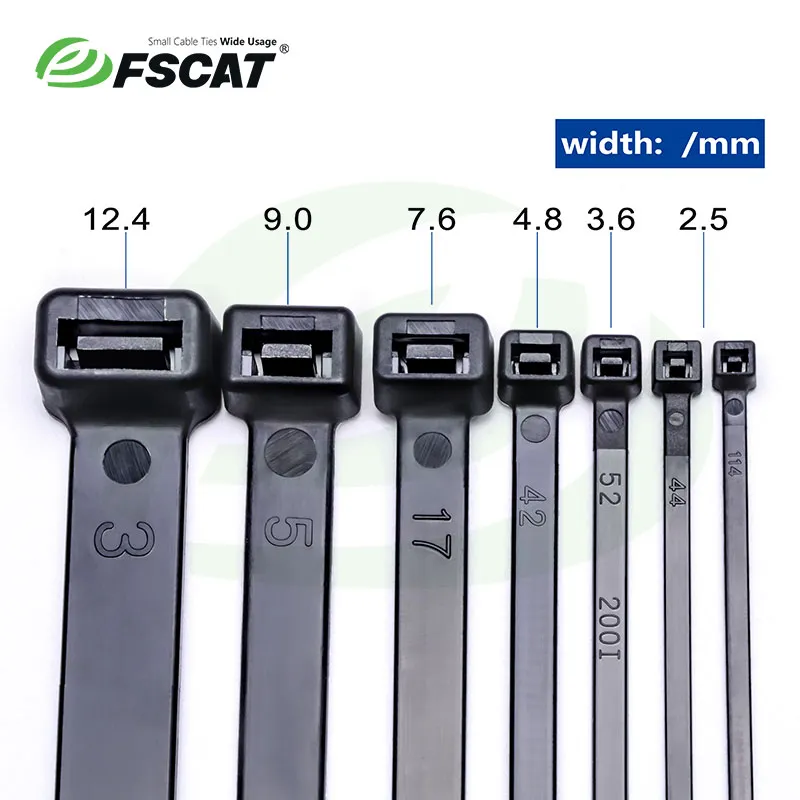

Standard self - locking cable ties come in various specifications, including 2.5mm mini ties, 3.6mm medium ties, 4.8mm standard ties, 7.6mm heavy - duty ties, 9mm extra - heavy - duty ties, and 12.4mm ultra - extra - heavy - duty ties. These ties are made from high - strength nylon66 material, providing excellent durability and tensile strength, making them suitable for various industrial and everyday applications. The self - locking design ensures reliable fastening, easy installation, and removal, making them ideal for cable bundling, cable management, and other fastening needs. The different specifications offer flexibility to meet diverse requirements ranging from light to heavy bundling, widely used in electronics, automotive, home decoration, and industrial manufacturing.
cable ties are available in both bulk 1,000 pieces bags and smaller 100 pieces bags. A full range of standard and fluorescent colors of the Miniature ties are available.
MATERIAL: Polyamide 6.6
Material brand: Huafon626F; Invista 4820L
Flammability of raw material : UL 94 - V2
Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -10°C ~+85°C.
Working temperature:-40°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.
Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.
Not resistant to phenols.
Carbon black addiction gives a better UV resistance (only for Black Cabe Ties).
Nyon products
Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.
packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.
Here are our suggestion for the cable tie store:
Bubble box packaging for supermarket
| Item No. | Width | Length | Max.Bundle Dia. | Min.Tensile Strength | Package | Material | Hand Tool | ||
| mm/inch | mm/inch | mm/inch | N | kg | lbs | Pcs/Bag | |||
| TST-230HSD | 12.4(0.488) | 230(9.06) | 57(2.24) | 1140 | 116.3 | 250 | 100 | PA66 |
Cable tie gun FSZ-800K |
| TST-290HSD | 12.4(0.488) | 290(11.42) | 76(2.99) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-380HSD | 12.4(0.488) | 380(14.96) | 103(4.07) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-480HSD | 12.4(0.488) | 480(18.90) | 136(5.35) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-530HSD | 12.4(0.488) | 530(20.87) | 156(6.14) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-580HSD | 12.4(0.488) | 580(22.83) | 168(6.61) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-650HSD | 12.4(0.488) | 650(25.59) | 195(7.68) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-750HSD | 12.4(0.488) | 750(29.52) | 200(7.87) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-800HSD | 12.4(0.488) | 800(31.50) | 230(9.06) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-850HSD | 12.4(0.488) | 850(33.46) | 240(9.45) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-920HSD | 12.4(0.488) | 920(36.22) | 278(10.95) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-1020HSD | 12.4(0.488) | 1020(40.16) | 295(11.61) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-1220HSD | 12.4(0.488) | 1020(48.03) | 375(14.78) | 1140 | 116.3 | 250 | 100 | PA66 | |
| TST-1530HSD | 12.4(0.488) | 1530(60.23) | 450(17.72) | 1140 | 116.3 | 250 | 100 | PA66 | |
⌾Excellent 〇 Good △Medium
| Product Name | FSCAT Cable Ties | ||||
| Type | TST | FST | FS | FS | FS |
| Material | Polyamide 6.6 | Polyamide 6.6 | Polyamide 612 | Polyamide 12 | Polyamide 6.6HS |
| Operating Temperature | |||||
| Max. | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 110℃(230℉) |
| Min. | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) |
| UV light/ozone | △ | △ | ⌾ | ⌾ | 〇 |
| Oils and greases | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Solvents | 〇 | 〇 | 〇 | 〇 | ⌾ |
| Petrol | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Flammability | UL94V-2 | UL94V-2 | UL94VHB | UL94VHB | UL94HB |
