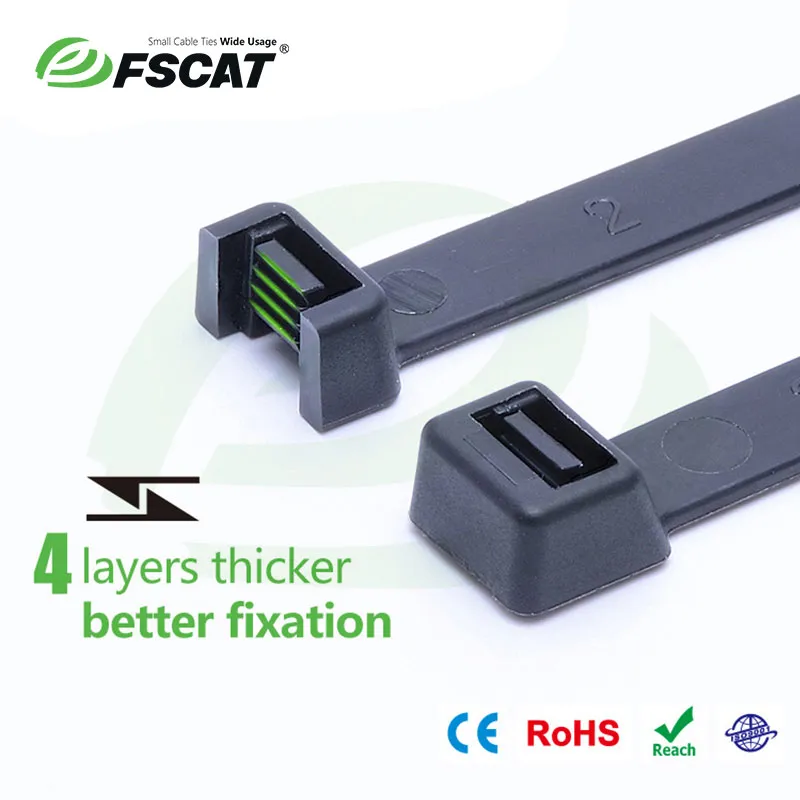

Miniature Cable Ties

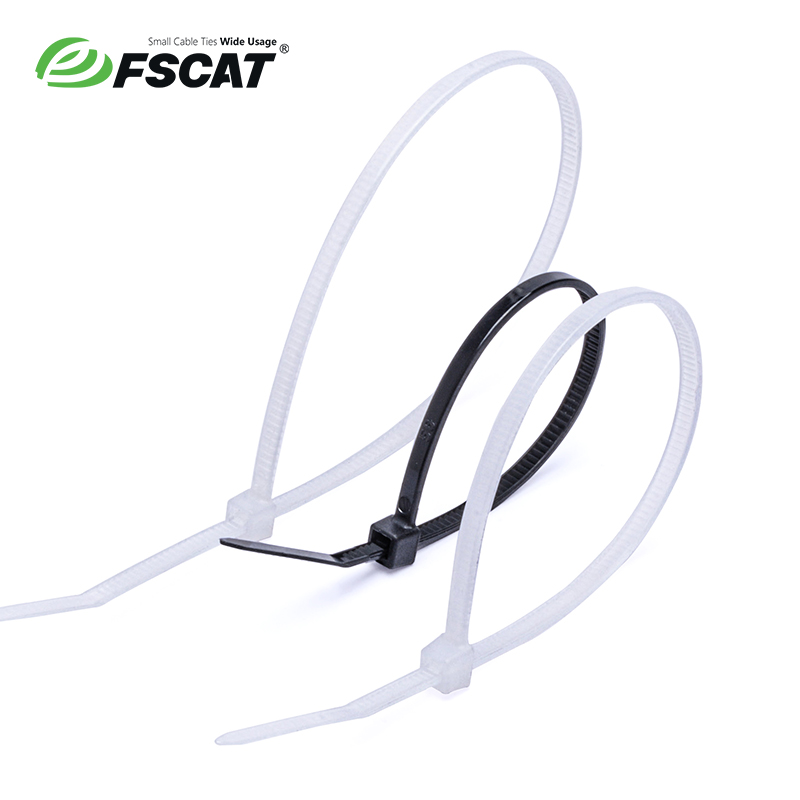

Miniature cable ties
Miniature cable ties

Application

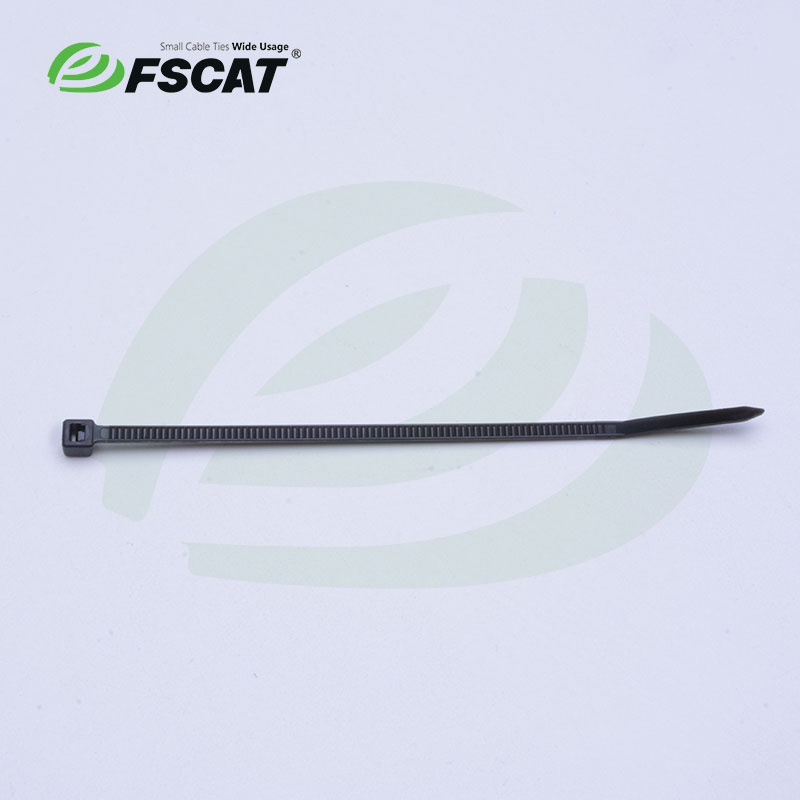

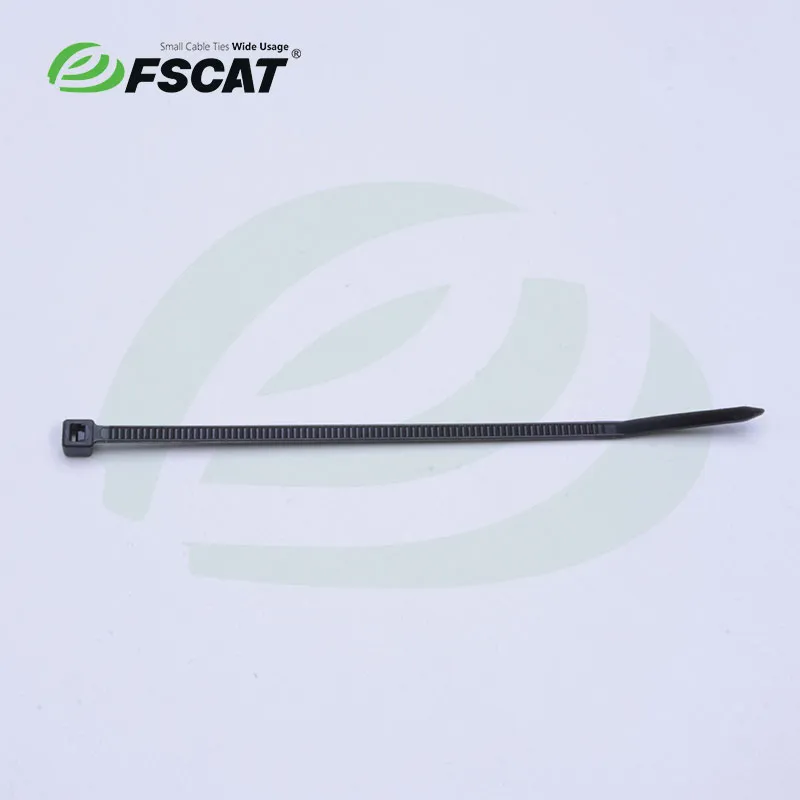

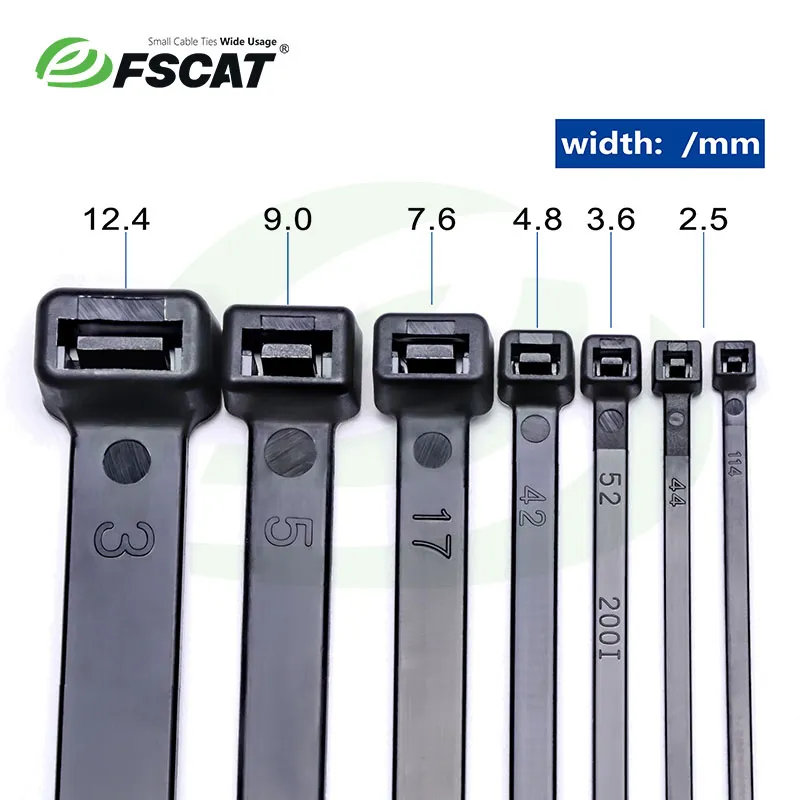

W2.5mm Type

LENGTH, TENSILE STRENGTH, AND BUNDLE DIAMETER - CRITICAL ELEMENTS IN DETERMINING THE RIGHT TIE FOR THE APPLICATION.

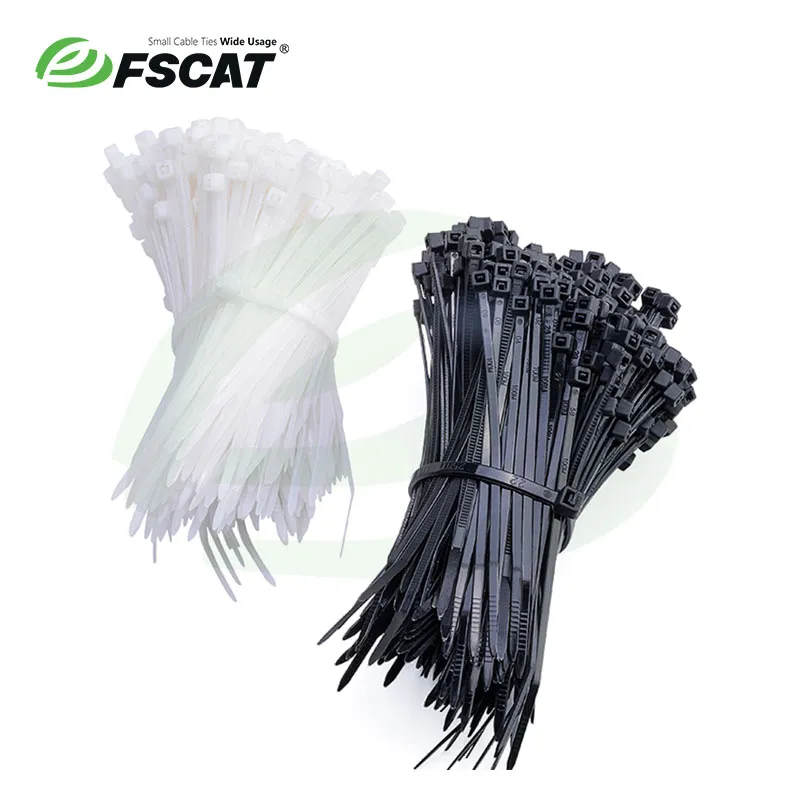

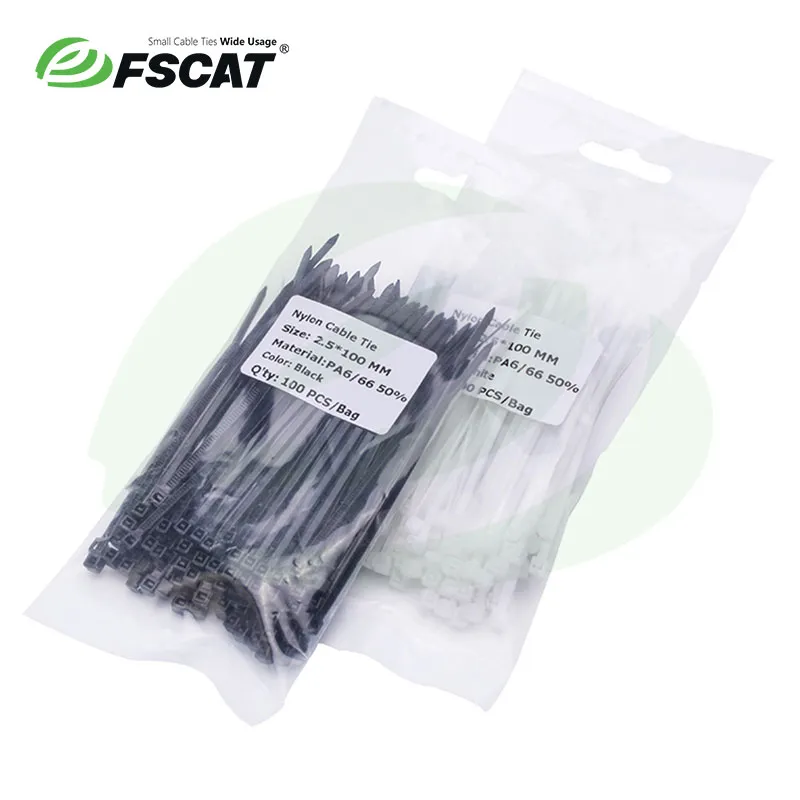

Miniature cable ties offer the ideal solution for small, light duty cable and wire bundling applications up to 8KG (18 lbs). The one piece construction allows for consistent performance and reliability. A very low insertion force is required with the Miniature cable ties. Natural ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Zhejiang Tolerance stocks the Miniature cable ties in a variety of lengths from 60mm--380mm(2.36”-15”). The Miniature 8KG(18 lb)cable ties are available in both bulk 1000 piece bags and smaller 100 piece bags. A full range of standard and fluorescent colors of the Miniature ties are available.



Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

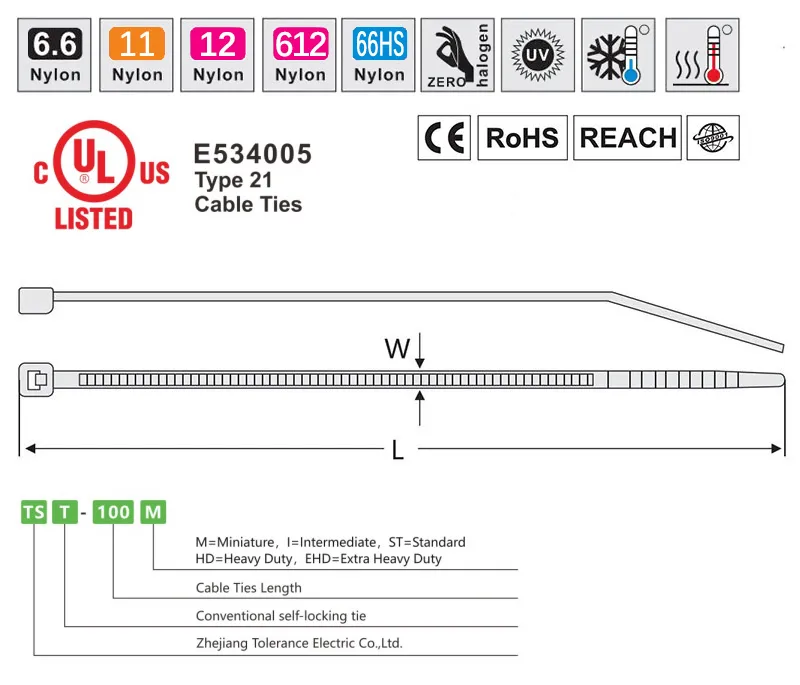

plane figure

Item No,Width,Length,Max Bundle Dia.,Min Bundle Dia.,Min.Tensile Strength,Hand Tool


Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

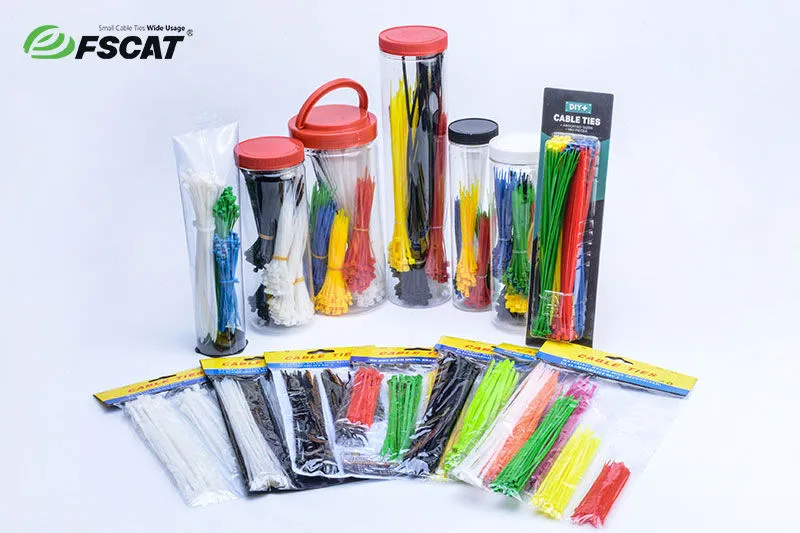

Bubble box packaging for supermarket

Cable Ties,Miniature Cable Ties,Bubble box packaging
