Standard Cable Ties

Standard Cable Ties
Standard Cable Ties

Application

W4.8mm Type

THESE CABLE TIES ARE THE MOST POPULAR MARKET.

Standard 22KG (50 lb) cable ties or zip ties are among the most popular cable ties currently being sold. The one piece construction allows for consistent performance and reliability. They offer the perfect solution in a wide variety of applications in industry, wire bundling, and cable management. With a maximum tensile strength of 22KG( 50 lbs), they are available in a full range of lengths from100MM--920MM( 4”--36”). Natural ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. In addition to Natural and UV Black, Standard 22KG(50 lb) ties are available in eight standard and five fluorescent colors. Zhejiang Tolerance stocks the Standard 22KG(50 lb) cable ties in bulk packages of 1000 and 500 and smaller package quantities of 100 and 50 pieces per bag.



Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

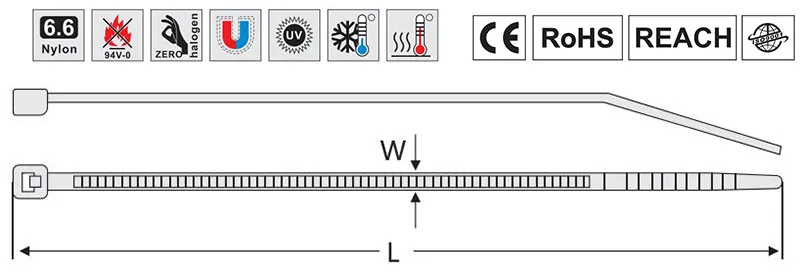

plane figure

Item No,Width,Length,Max Bundle Dia.,Min Bundle Dia.,Min.Tensile Strength,Hand Tool


Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. packaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

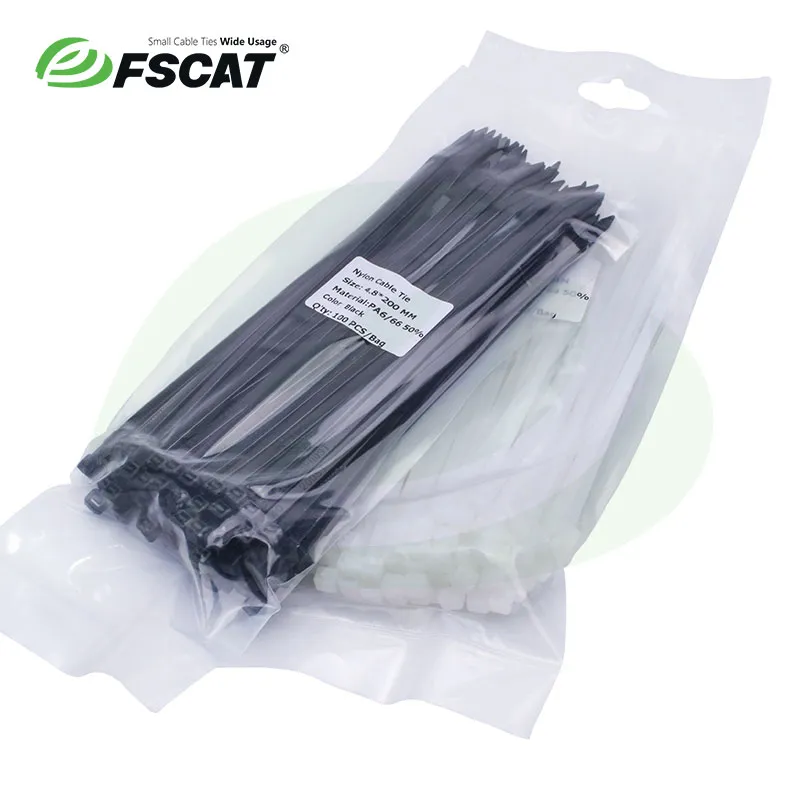

Bubble box packaging for supermarket

Bubble box packaging
