Heavy Duty Cable Ties

Heavy Duty Cable Ties
Heavy Duty Cable Ties

Application

W7.6mm Type

LENGTH, TENSILE STRENGTH, AND BUNDLE DIAMETER - CRITICAL ELEMENTS IN DETERMINING THE RIGHT TIE FOR THE APPLICATION.

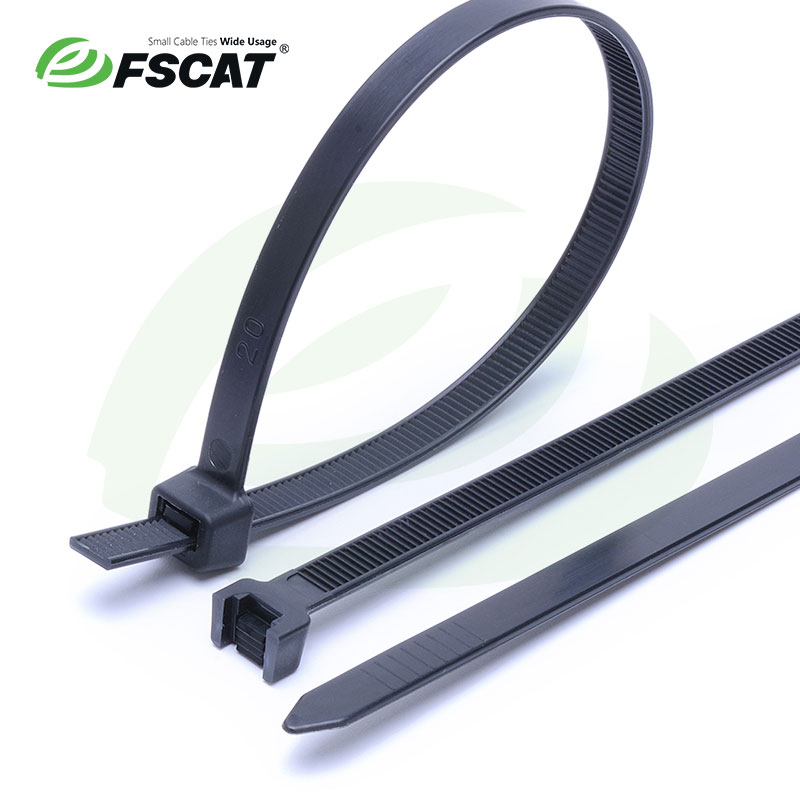

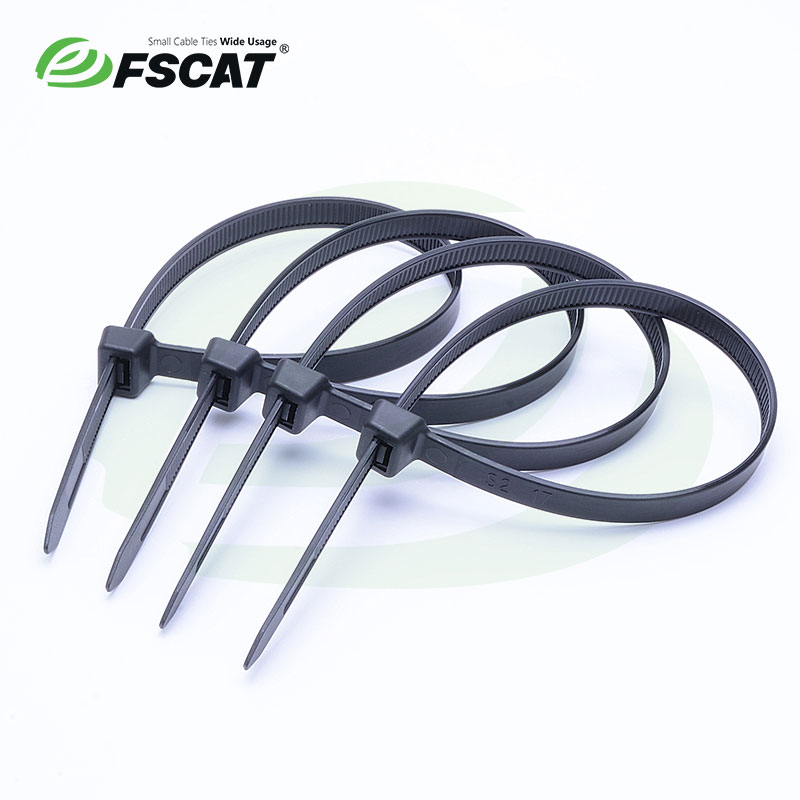

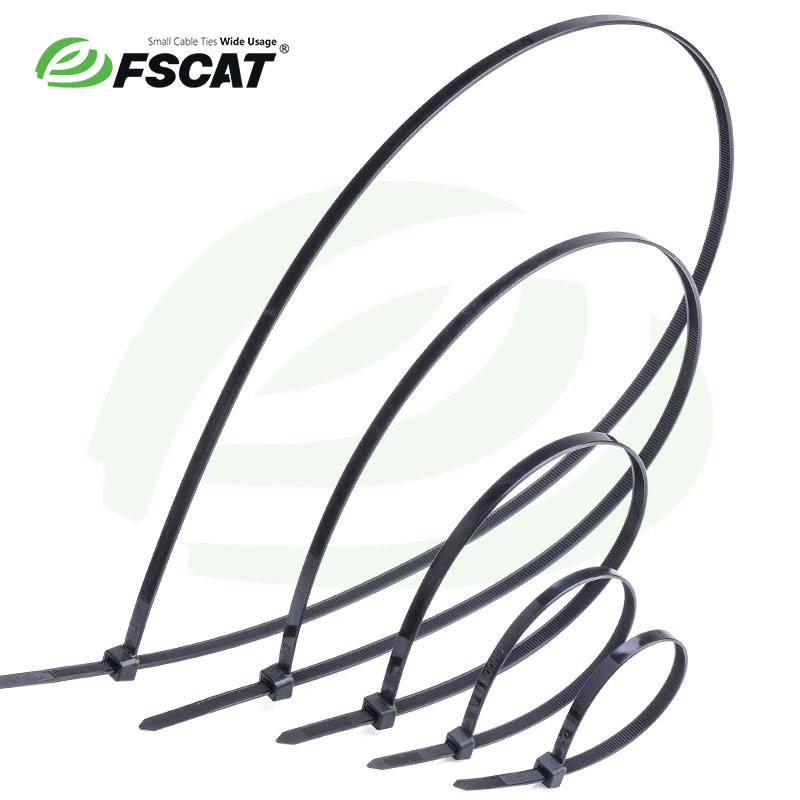

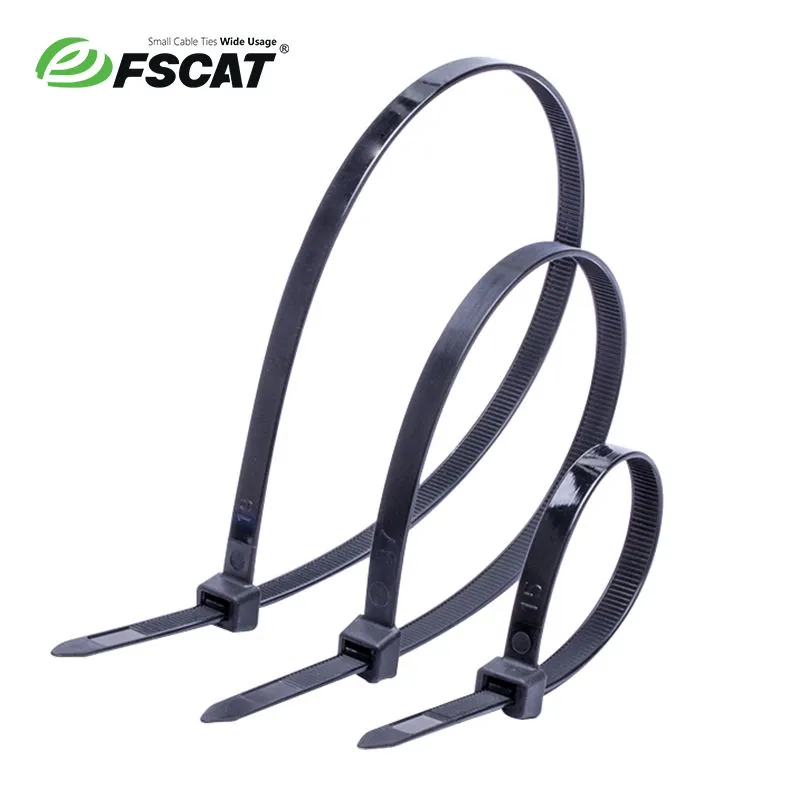

Heavy duty cable ties (or zip ties) are effective in applications requiring 54KG(120 lb) tensile strengths. The one piece construction allows for consistent performance and reliability.The 54KG(120 lb) cable ties are available in lengths from150MM--760MM( 6” – 30”). Natural cable ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Zhejiang Tolerance stocks the 54KG(120 lb) cable ties in standard packages of 100 or 50 depending upon the weight and length of the cable tie.



Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

plane figure

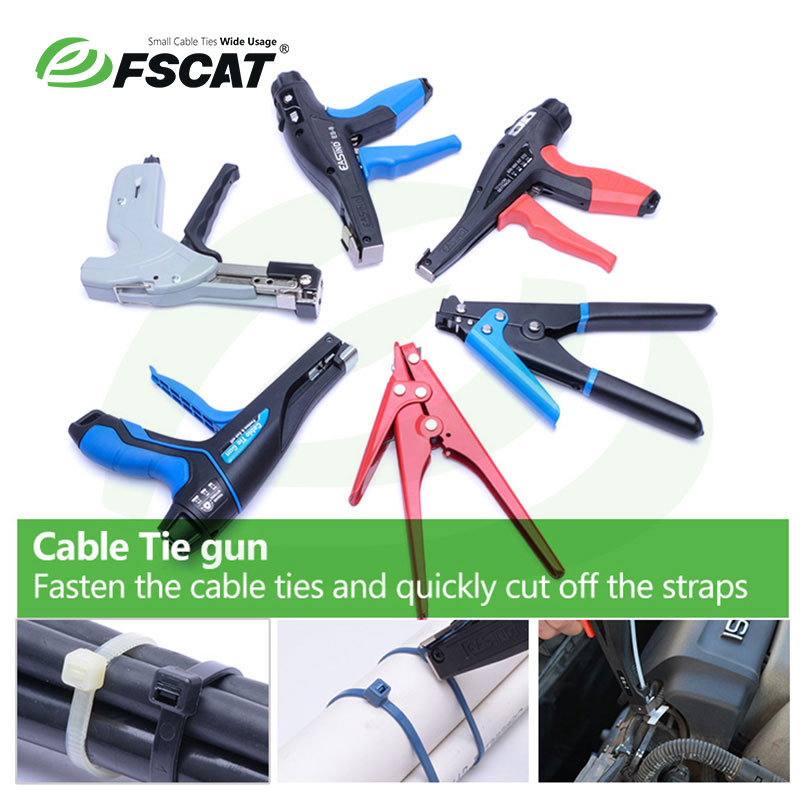

Item No,Width,Length,Max Bundle Dia.,Min Bundle Dia.,Min.Tensile Strength,Hand Tool


Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. packaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

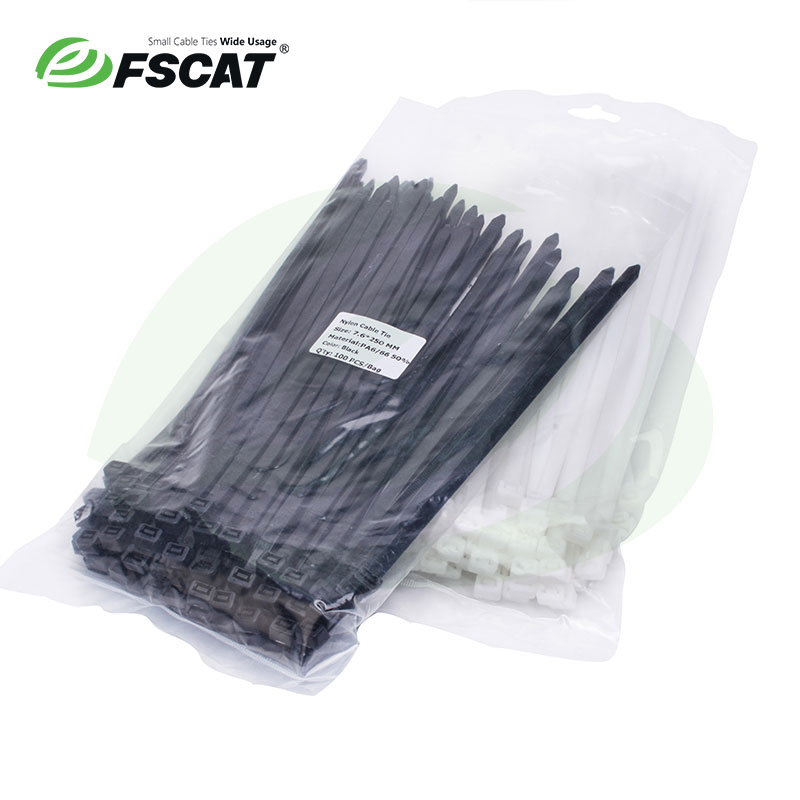

Bubble box packaging for supermarket

Bubble box packaging for supermarket
