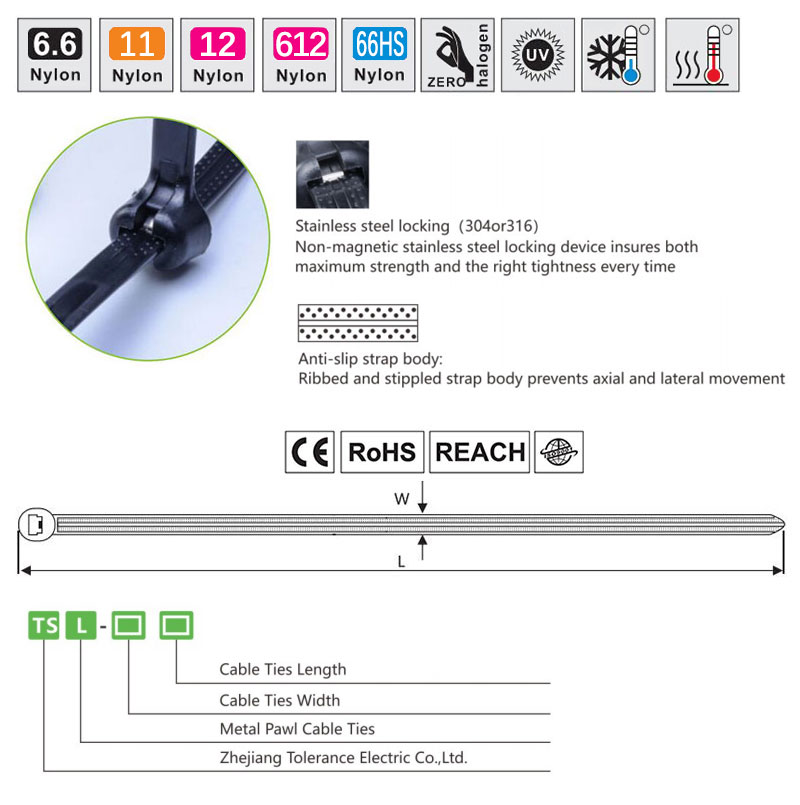

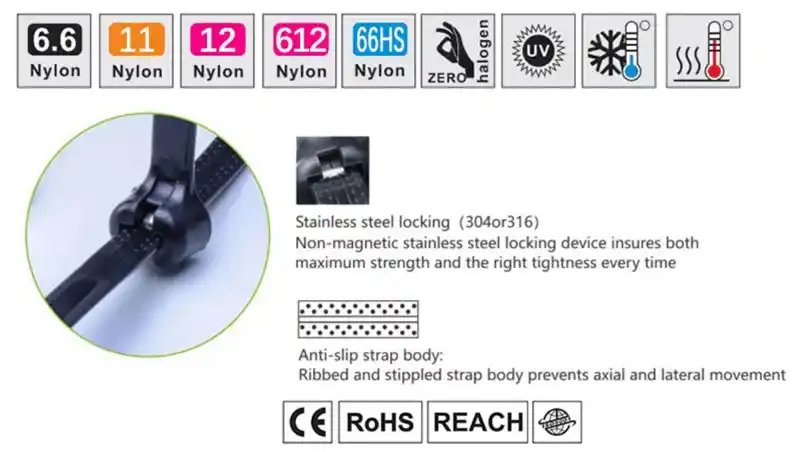

Features: Non-magnetic stainless steel locking device, smooth body design for flexible bundling.
Temperature: -40°C to +85°C; short-term up to +110°C
Chemical Resistance: Resistant to bases, oils, and solvents; limited resistance to acids; not resistant to phenols.
UV Resistance: Enhanced with carbon black (for black ties).

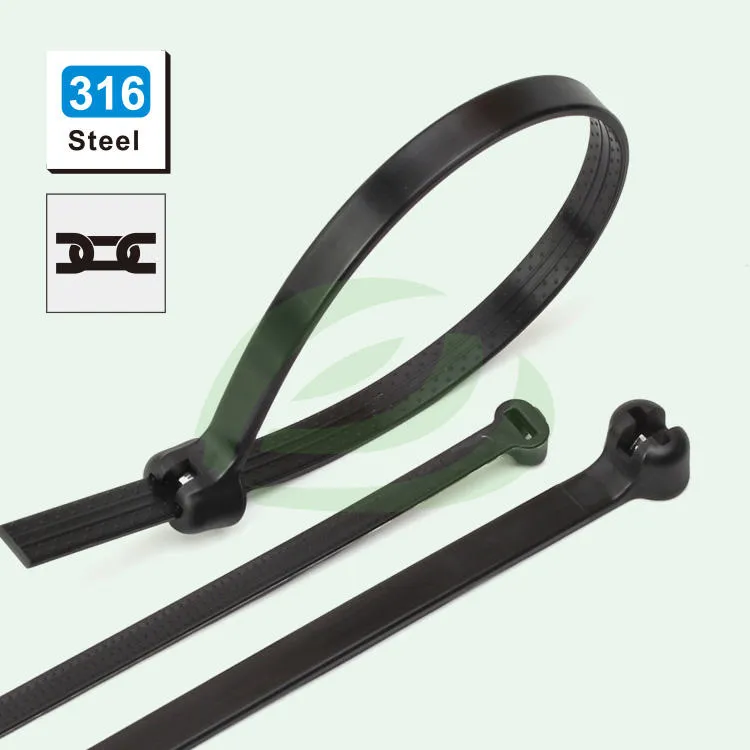

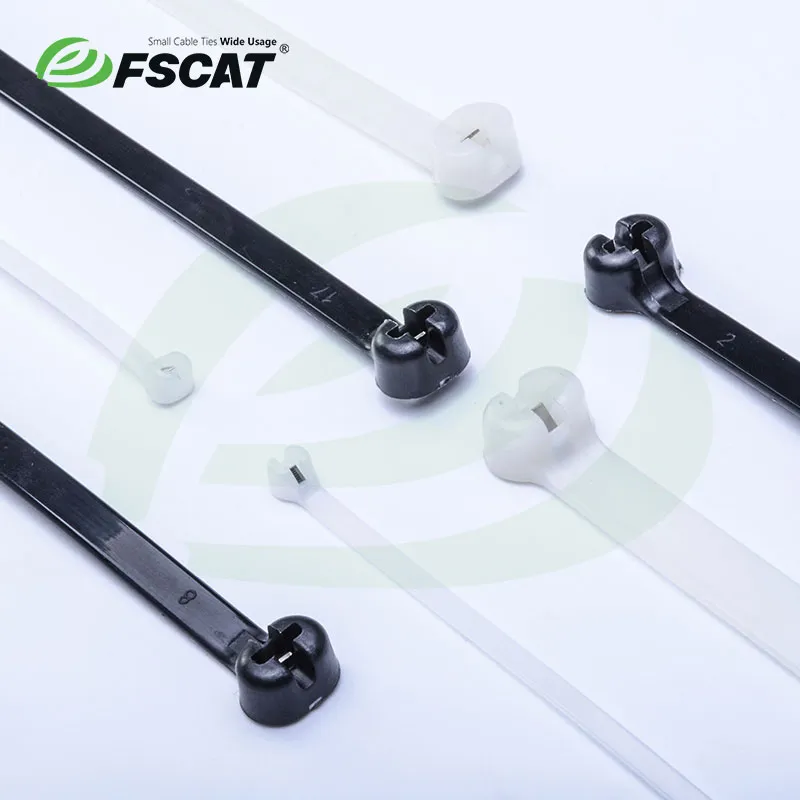

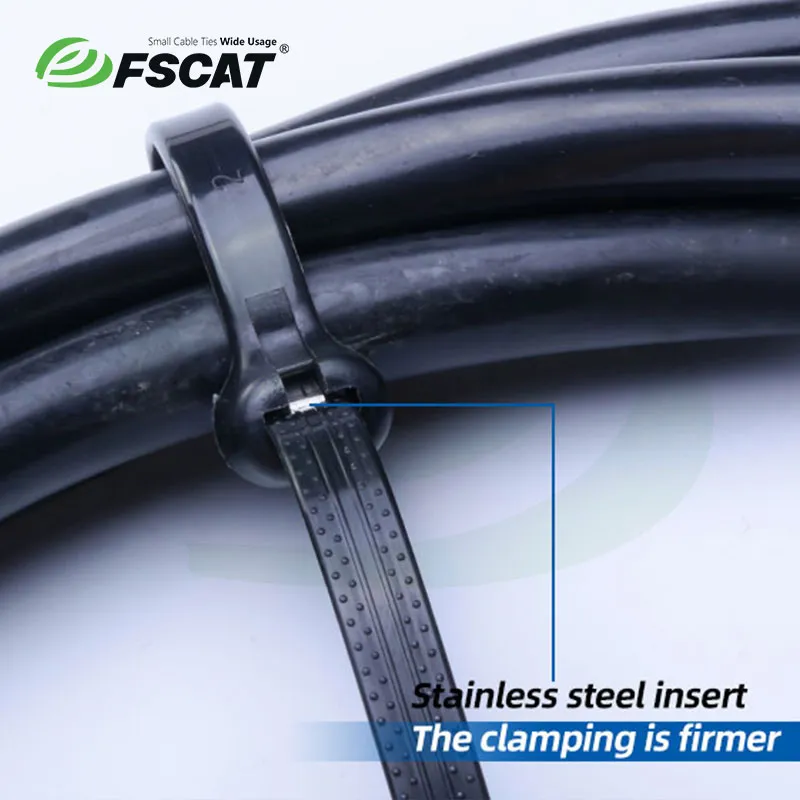

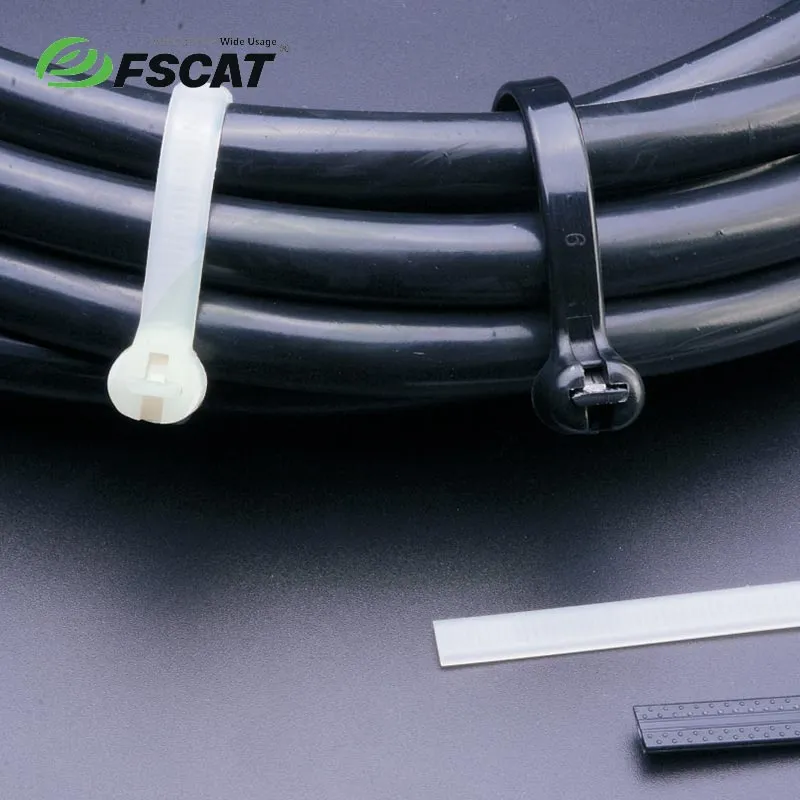

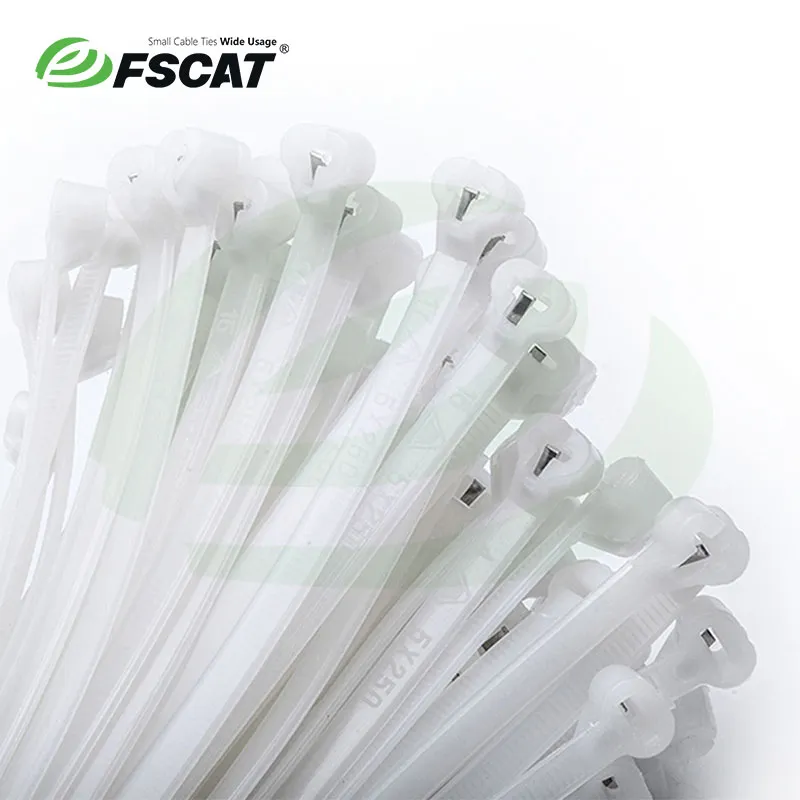

Metal Pawl cable ties have a non-magnetic stainless steel locking device in the head and a smooth body design that allows for the cable tie to be any size within the bundle diameterare, Metal Pawl cable ties (zip ties heavy duty) available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.
Metal Pawl cable ties have a non - magnetic stainless steel locking device in the head and a smooth body design that allows the cable tie to be any size within the bundle diameter. Metal Pawl cable ties available in bulk 1,000 or 500 pieces bags or smaller 100 pieces bags.
MATERIAL: Polyamide 6.6
Material brand: Huafon626F; Invista 4820L
Flammability of raw material : UL 94 - V2
Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation temperature: -10°C ~+85°C.
Working temperature:-40°C ~+85°C.
Max sustaiaable tempeature for short time:+110°C.
Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.
Not resistant to phenols.
Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)
Nyon products
Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.
packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.
Here are our suggestion for the cable tie store:
Bubble box packaging for supermarket

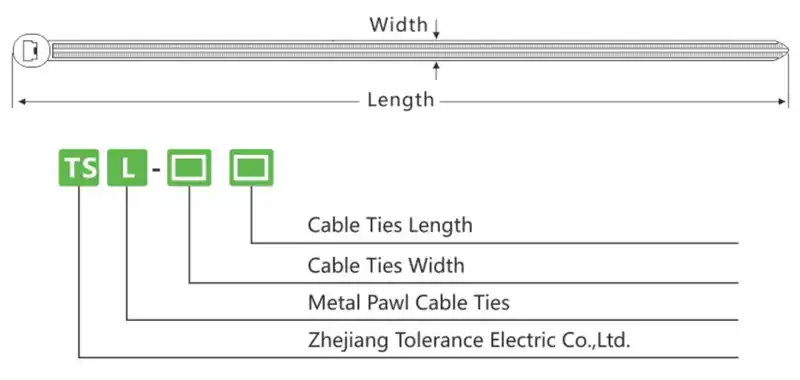

| Item No. | Width | Length | Max.Bundle Dia. | Min.Tensile Strength | Package | Material | Hand Tool | |||
| mm/inch | mm/inch | mm | inch | N | kg | lbs | Pcs/Bag | |||
| TSL-2.4-102 | 2.4(0.094) | 102(4.02) | 23 | 0.91 | 80 | 8.2 | 18 | 100 | PA66 |
Cable tie gun FSZ-800K |
| TSL-2.4-201 | 2.4(0.094) | 201(7.91) | 51 | 2.01 | 80 | 8.2 | 18 | 100 | PA66 | |
| TSL-3-100 | 3.0(0.118) | 100(3.94) | 22 | 0.87 | 80 | 8.2 | 18 | 100 | PA66 | |
| TSL-3.6-155 | 3.6(0.142) | 155(6.10) | 35 | 1.38 | 180 | 18.2 | 40 | 100 | PA66 | |
| TSL-3.6-284 | 3.6(0.142) | 284(11.18) | 80 | 3.15 | 180 | 18.2 | 40 | 100 | PA66 | |
| TSL-3.6-368 | 3.6(0.142) | 368(14.49) | 104 | 4.09 | 180 | 18.2 | 40 | 100 | PA66 | |
| TSL-3.8-200 | 3.8(0.145) | 200(7.84) | 50 | 1.97 | 180 | 18.2 | 40 | 100 | PA66 | |
| TSL-4.8-186 | 4.8(0.189) | 186(7.32) | 45 | 1.77 | 220 | 22.43 | 50 | 100 | PA66 | |
| TSL-4.8-250 | 4.8(0.189) | 250(9.84) | 65 | 2.56 | 220 | 22.43 | 50 | 100 | PA66 | |
| TSL-4.8-295 | 4.8(0.189) | 295(11.61) | 79 | 3.11 | 220 | 22.43 | 50 | 100 | PA66 | |
| TSL-4.8-361 | 4.8(0.189) | 361(14.21) | 100 | 3.94 | 220 | 22.43 | 50 | 100 | PA66 | |
| TSL-4.8-376 | 4.8(0.189) | 376(14.80) | 107 | 4.21 | 220 | 22.43 | 50 | 100 | PA66 | |
| TSL-6-200 | 6.0(0.236) | 236(7.87) | 50 | 1.97 | 200 | 22.43 | 50 | 100 | PA66 | |
| TSL-7-221 | 7(0.276) | 221(8.7) | 221 | 8.7 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-7-300 | 7(0.276) | 300(11.81) | 300 | 11.81 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-7-378 | 7(0.276) | 378(14.88) | 378 | 14.88 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-7-460 | 7(0.276) | 460(18.11) | 460 | 18.11 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-7-538 | 7(0.276) | 538(21.18) | 538 | 21.18 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-7-699 | 7(0.276) | 699(27.52) | 699 | 27.52 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-8-240 | 8(0.315) | 240(9.45) | 240 | 9.45 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-8-300 | 8(0.315) | 300(11.81) | 300 | 11.81 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-8-350 | 8(0.315) | 350(13.78) | 350 | 13.78 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-8-400 | 8(0.315) | 400(15.75) | 400 | 15.75 | 498 | 50.8 | 112 | 100 | PA66 | |
| TSL-10-300 | 10(0.394) | 300(11.81) | 300 | 11.81 | 550 | 56 | 124 | 100 | PA66 | |
| TSL-10-350 | 10(0.394) | 350(13.78) | 350 | 13.78 | 550 | 56 | 124 | 100 | PA66 | |
| TSL-10-400 | 10(0.394) | 400(15.75) | 400 | 15.75 | 550 | 56 | 124 | 100 | PA66 | |
| TSL-10-450 | 10(0.394) | 450(17.72) | 450 | 17.72 | 550 | 56 | 124 | 100 | PA66 | |
⌾Excellent 〇 Good △Medium
| Product Name | FSCAT Cable Ties | ||||
| Type | TST | FST | FS | FS | FS |
| Material | Polyamide 6.6 | Polyamide 6.6 | Polyamide 612 | Polyamide 12 | Polyamide 6.6HS |
| Operating Temperature | |||||
| Max. | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 110℃(230℉) |
| Min. | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) |
| UV light/ozone | △ | △ | ⌾ | ⌾ | 〇 |
| Oils and greases | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Solvents | 〇 | 〇 | 〇 | 〇 | ⌾ |
| Petrol | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Flammability | UL94V-2 | UL94V-2 | UL94VHB | UL94VHB | UL94HB |
Yes, we have CE, SGS, ROHS, REACH and ISO9001
Yes, we accept, our common pack is plastic bag, if you have requirement for package, we can design it.
Yes, we can send free sample to you, it is kindly for you to pay the freight cost.
Our main market is in Europe,such as Italy, Russia, South Africa, Germany ect.
Payment: 30% T/T at time of order ,70% T/T before delivery.
