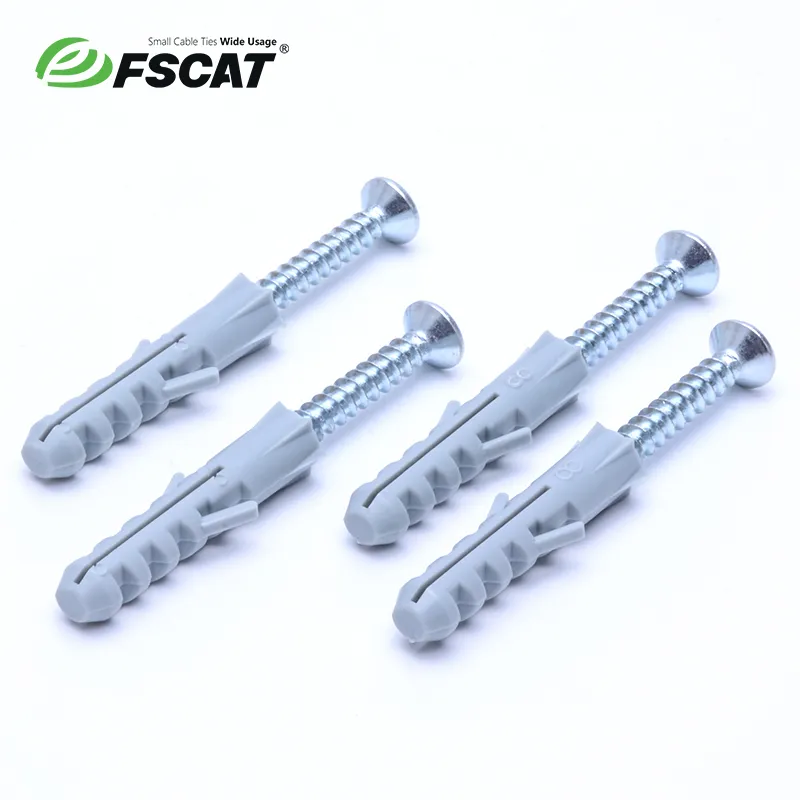

Expand Plugs

Expand Plugs
Expand Plugs
Expand Plugs
Expand Plugs

Geometry of the expansion pipe, in the solidstructure of the objectin the expansion

To prevent rotation of the structural design, when using the screw does not rotate in the airto follow

Material: PE,

Color: Mostly grey and white, other colors arealso available

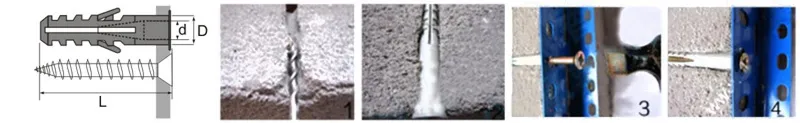

ichnography,Effect picture

Actualuse case:

Effect picture

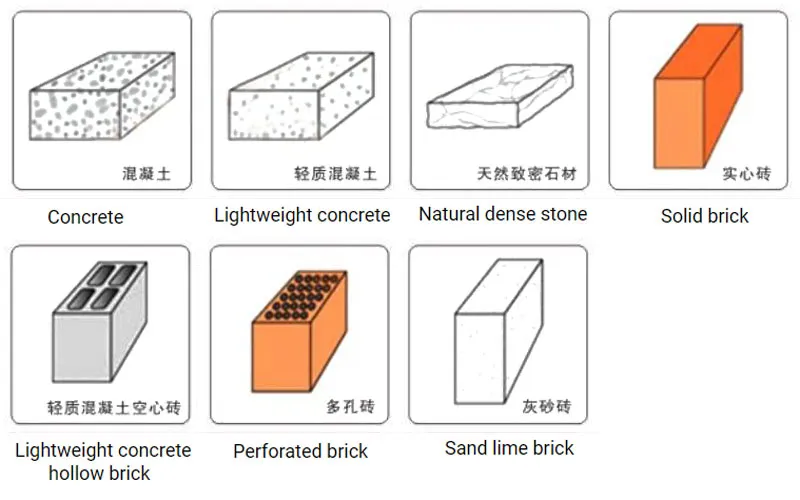

Concrete,Lightweight concrete,Natural dense stone,Solid brick,Lightweight concrete hollow brick,Perforated brick,Sand lime brick

Unit: mm

Part No.

L

D

d

Screw

Packing

mm

mm

mm

mm

Pcs/bag

TPEN-05

25.3

5.0

3.5

Φ3.0×25

100 pcs/bag

TPEN-06

29.1

6.0

4.8

Φ4.0×30

TPEN-07

35.0

7.0

5.3

Φ4.0×35

TPEN-08

37.9

8.0

5.8

Φ4.0×40

TPEN-10

47.8

10.0

8.3

Φ4.0×50

TPEN-12

57.5

12.0

10.0

Φ6.0×60

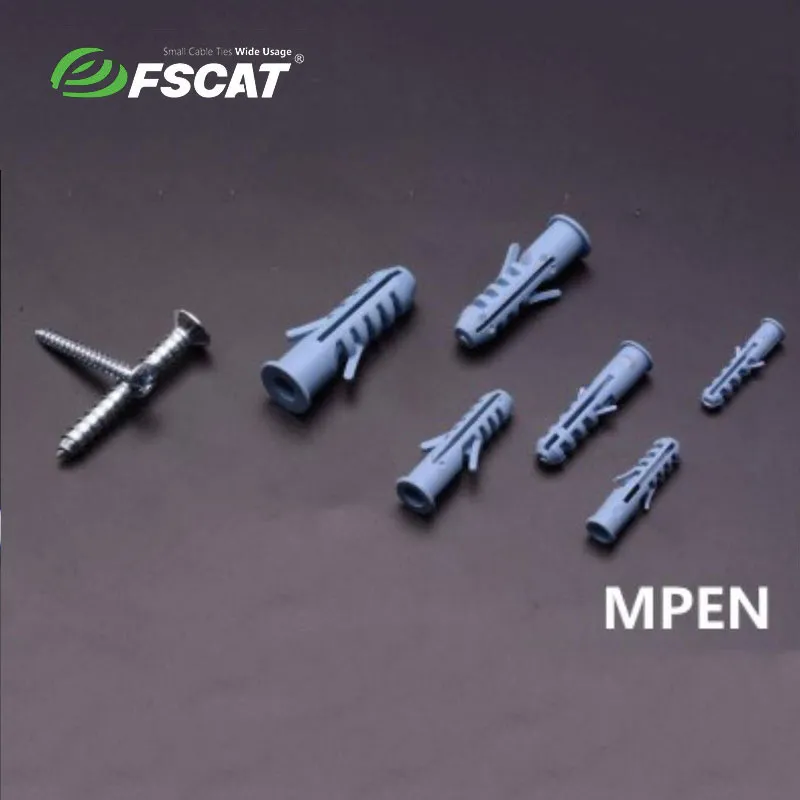

MPEN-06

29.1

6.0

4.8

Φ4.0×30

MPEN-07

35.0

7.0

5.3

Φ4.0×35

MPEN-08

35.7

8.0

5.8

Φ4.0×35

MPEN-10

36.8

10.0

8.3

Φ4.0×35

MPEN-12

37.9

12.0

10.0

Φ4.0×40

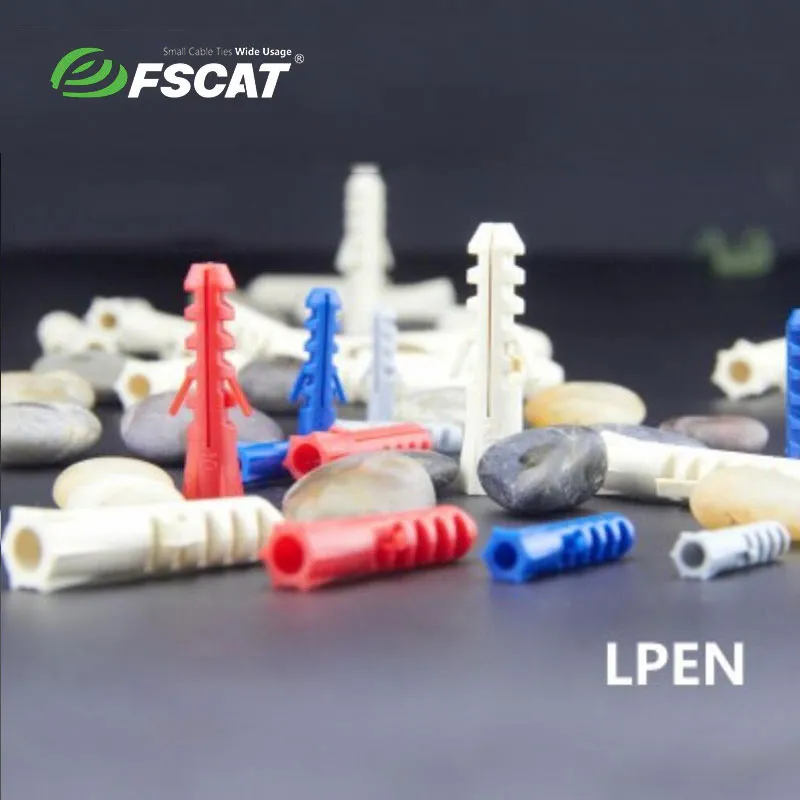

LPEN-07

30.0

7

4.8

Φ4.5×30

LPEN-08

38.6

8

4.8

Φ4.5×40

LPEN-10

47.2

10

6.7

Φ5.0×50

LPEN-12

53.5

12

7.7

Φ6.0×60
