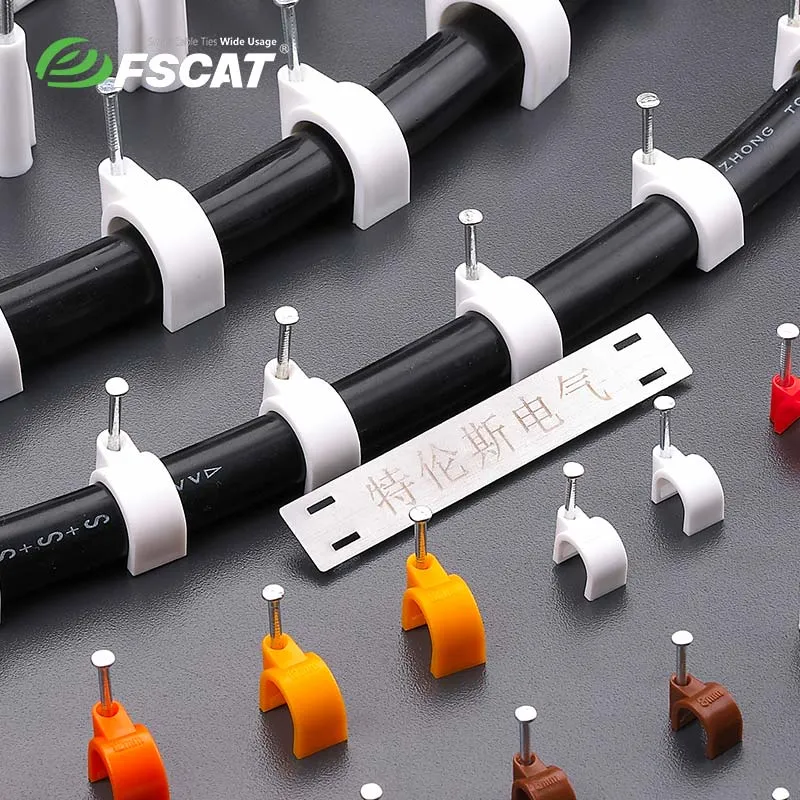

Circle Cable Clips

Circle Cable Clips
Circle Cable Clips

Fixable, good elasticity, to bear collision, unable broken.
Inserted nail, nail stick to plastic seat, savetime and cost down.
Material: PE, (Nail) Medium carbon steel.
Color: Mostly grey and white, other colors arealso available.

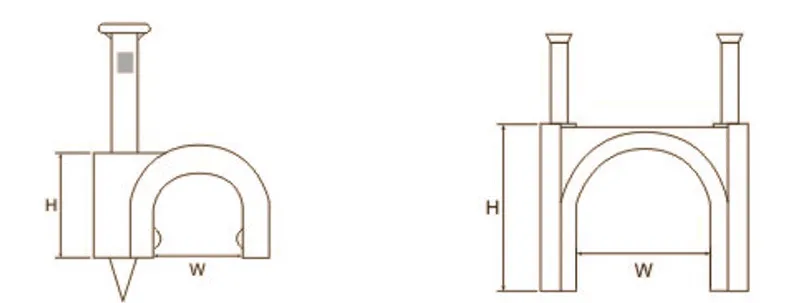

ichnography

Main Market: India, Bengal, Indonesia, China, Iraq, Syria.

ITEM NO

H

W

Nail Size

COLOR

mm

mm

mm

Betan Round

4.6

7.4

1.6x16 (India Market)

White

Grey

Red

Blue

Black



Betan Rectangular

3.2

5.9

1.6×16(India Market)

TSR-2.5MM

3.6

2.7

1.47×14

TSR-3.5MM

4.2

3.5

1.47×14

TSR-4MM

5.3

4.0

1.6×14

TSR-5MM

6.0

5.0

1.6×14

TSR-6MM

8.0

6.0

1.8×16

TSR-7MM

8.7

7.0

1.8×18

TSR-8MM

9.5

8.0

1.9×19

TSR-9MM

11.0

9.0

2.0×22

TSR-10MM

12.0

10.0

2.1×23

TSR-12MM

13.5

12.0

2.2×25

TSR-14MM

16.5

14.0

2.3×30

TSR-16MM

18.0

16.0

2.3×30

TSR-17MM

20.0

17.0

2.6×38

TSR-18MM

20.5

18.0

2.6×38

TSR-20MM

22.5

20.0

2.7×40 / 2.6×38

TSR-22MM

23.5

22.0

2.9×43

TSR-25MM

26.5

25.0

3.1×50 / 2.7×45

TSR-30MM(DOUBLE)

32.5

30.0

3.5×55

TSR-32MM(DOUBLE)

34.5

32.0

3.5x55

TSR-35MM(DOUBLE)

38.0

35.0

3.5x60

TSR-40MM(DOUBLE)

43.8

40.0

3.5x65

TSR-50MM(DOUBLE)

52.8

50.0

4.2×79
