Self Adhesive Tie Mount

cable Tie Mount
cable Tie Mount
Self Adhesive Tie Mount
Self Adhesive Tie Mount
Self Adhesive Tie Mount
Self Adhesive Tie Mount
cable Tie Mounts

Material: ABS,UL approved Nylon 66, 94 V-2
Color: Natural, available in other colors.

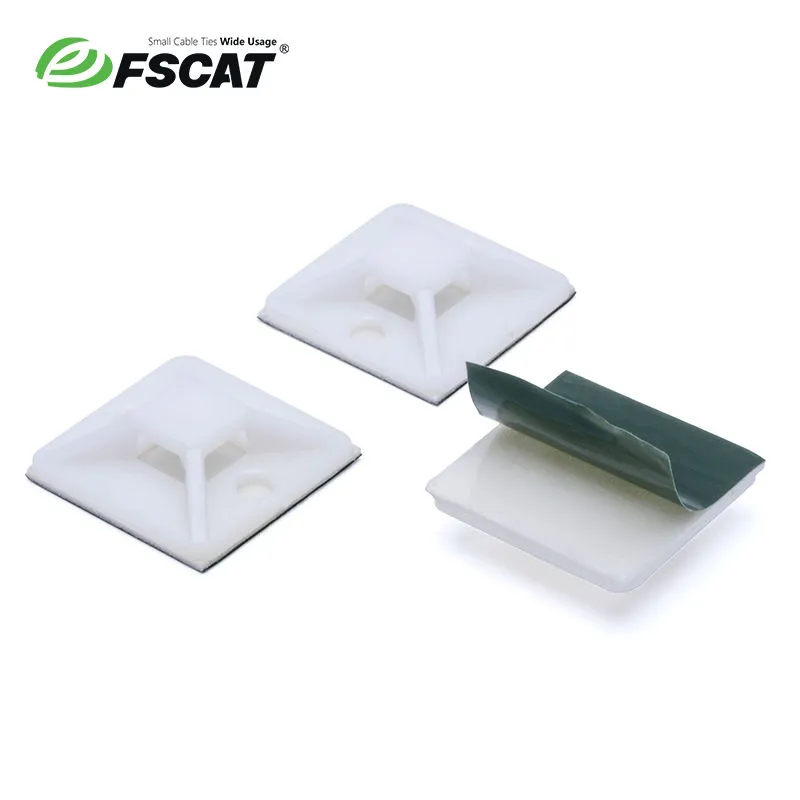

SELF-ADHESIVE TIE MOUNTS is designed to support light weight wire bundles when properly applied on any clean, smooth, grease-free surface. For heavy support. mounting hole is provided for screws.To apply , simply peel off backing paper and Apply mount to surface. After that, cable ties can be inserted to secure wire bundes.

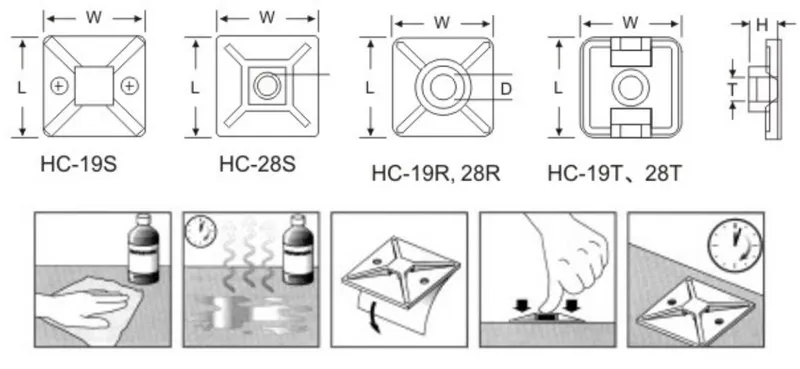

Specification, method of operation

Unit: mm

ITEM NO

L×W

H

Mounting Hole (D)

Cable Tie Hole (T)

HC-19S

19×19

4.8



4.5

HC-28S

28×28

6.6

6.2

5.4

HC-19R

19×19

5.9

4.5

4.2

HC-28R

28×28

6.6

5.2

6.0

HC-19T

19×19

5.2

4.1

4.1

HC-28T

28×28

8.6

4.1

5.8
