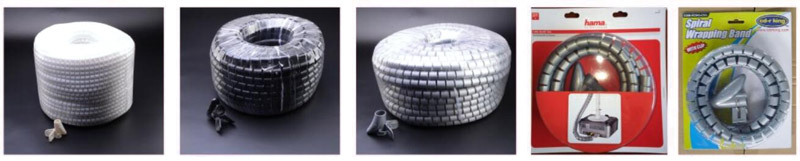

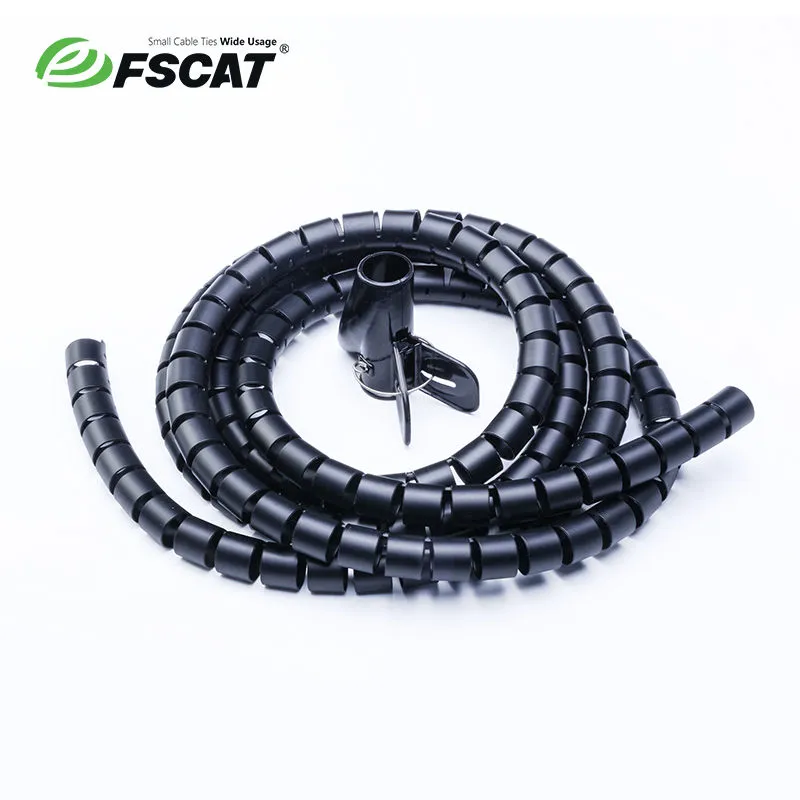

Cable Tidy (Attached Clip)

Cable Tidy (Attached Clip)
Cable Tidy (Attached Clip)
Cable Tidy (Attached Clip)
Cable Tidy (Attached Clip)
Cable Tidy (Attached Clip)

Material: PE
Color: Standard in natural. Black and other are colors available upon request.

Description:

1.Flexible construction enable bands to follow wire ways easily.
2.Durable, reusable with retained spiral strength.
3.Fix ends of band with cable ties and spiral wire bundles in clockwise direction to complete works.
4.Expand spiral range almost without limit. An economical way of cable binding. Easily applied to electric harness, cables and wire bundles. Cut-to-fit versatility in convenient roll-form.

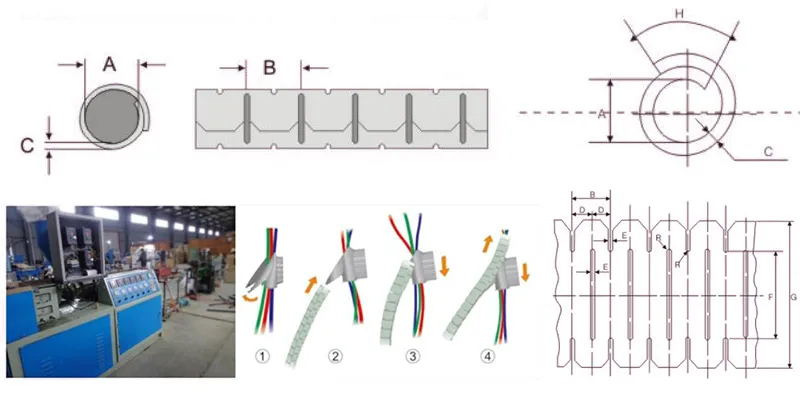

Operation demonstration,ichnography

ITEM NO

A

B

C

MAX DIA

D

E

F

T

H

HS-10

8

10

0.7

9.0

5.0

1.5

20.0

34.0

5~8

HS-15

13

14

0.9

15

7.0

2.0

37.0

53.0

6~10

HS-20

18

18

1.0

20

9.0

2.0

52.0

72.0

10~15

HS-25

23

21

1.1

25

10.5

2.2

64.0

88.0

12~17

HS-30

27

23

1.2

29

11.5

2.3

78.0

100.0

15~20

HS-35

33

29

1.3

35

14.5

2.8

98.0

125.0

18~25
