Material: Polyamide 12/PA612
Material Brand: /
Flammability of Raw Material: UL 94HB
Humidity Absorption: 2,7%-2,8% (23℃ -50% R.H.)
Installation Temperature: -10℃~+85℃
Working Temperature: -40℃~+85℃
Max Sustainable Temperature For Short Time: +110℃
Certifications
For lower prices on bulk purchases, please contact us at
The standard for PA12 cable ties is over 3,0o0 hours of UV exposure continuously in a UV chamber. The UV strength is equivalent to about 20 years of weather resistance.
Highly resistant to chemicals such as chlorides, suitable for solar galvanized steel installation.
Excellent performance in challenging environments such as offshore, oil rigs, melting snow and freezing cold areas.
Low hygroscopicity-saturation is about 1% at 23°C and 50% relative humidity.
Excellent salt and chemical resistance.
Better impact performance.
△ Excellent 〇 Good ⌾ Medium
| Product Name | FSCAT Cable Ties | ||||
| Type | TST | FST | FS | FS | FS |
| Material | Polyamide 6.6 | Polyamide 6.6 | Polyamide 612 | Polyamide 12 | Polyamide 6.6HS |
| Operating Temperature | |||||
| Max. | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 85℃(185℉) | 110℃(230℉) |
| Min. | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) | -40℃(-40℉) |
| UV light/ozone | △ | △ | ⌾ | ⌾ | 〇 |
| Oils and greases | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Solvents | 〇 | 〇 | 〇 | 〇 | ⌾ |
| Petrol | ⌾ | ⌾ | ⌾ | ⌾ | ⌾ |
| Flammability | UL94V-2 | UL94V-2 | UL94VHB | UL94VHB | UL94HB |

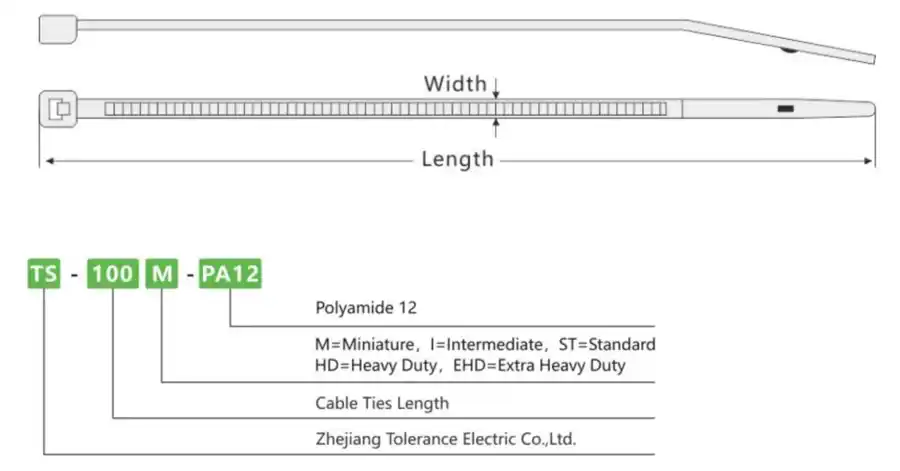

| Item No. | Width | Length | Max.Bundle Dia. | Min.Tensile Strength | Package | Material | Hand Tool | |||
| mm/inch | mm/inch | mm | inch | N | kg | ibs | Pcs/Bag | |||
| FS-100M-PA12 | 2.5(0.098) | 100(3.94) | 22 | 0.87 | 80 | 8.2 | 18 | 100 | PA12 |
Cable tie gun FSZ-800K |
| FS-120M-PA12 | 2.5(0.098) | 120(3.94) | 27 | 1.06 | 80 | 8.2 | 18 | 100 | PA12 | |
| FS-150M-PA12 | 2.5(0.098) | 150(5.91) | 35 | 1.37 | 80 | 8.2 | 18 | 100 | PA12 | |
| FS-160M-PA12 | 2.5(0.098) | 160(6.30) | 39.8 | 1.57 | 80 | 8.2 | 18 | 100 | PA12 | |
| FS-200M-PA12 | 2.5(0.098) | 200(7.87) | 50 | 2.56 | 80 | 8.2 | 18 | 100 | PA12 | |
| FS-150I-PA12 | 3.6(0.142) | 150(5.97) | 35 | 1.38 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-200I-PA12 | 3.6(0.142) | 200(7.87) | 50 | 0.19 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-250I-PA12 | 3.6(0.142) | 250(9.84) | 65 | 2.56 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-280I-PA12 | 3.6(0.142) | 280(11.02) | 70 | 2.76 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-300I-PA12 | 3.6(0.142) | 300(11.81) | 80 | 3.15 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-350I-PA12 | 3.6(0.142) | 350(13.78) | 100 | 3.94 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-370I-PA12 | 3.6(0.142) | 370(14.57) | 105 | 4.13 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-400I-PA12 | 3.6(0.142) | 400(15.75) | 114.5 | 4.51 | 180 | 18.2 | 42 | 100 | PA12 | |
| FS-200ST-PA12 | 4.8(0.189) | 200(7.87) | 50 | 1.97 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-250ST-PA12 | 4.8(0.189) | 250(9.84) | 65 | 2.56 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-280ST-PA12 | 4.8(0.189) | 280(11.03) | 70 | 2.76 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-300ST-PA12 | 4.8(0.189) | 300(11.81) | 80 | 3.15 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-350ST-PA12 | 4.8(0.189) | 350(13.78) | 90 | 3.54 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-370ST-PA12 | 4.8(0.189) | 370(14.57) | 98 | 3.86 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-380ST-PA12 | 4.8(0.189) | 380(14.96) | 102 | 4.72 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-400ST-PA12 | 4.8(0.189) | 400(15.75) | 105 | 4.13 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-430ST-PA12 | 4.8(0.189) | 430(16.93) | 120 | 4.72 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-450ST-PA12 | 4.8(0.189) | 450(17.72) | 130 | 5.12 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-500ST-PA12 | 4.8(0.189) | 500(19.96) | 150 | 5.91 | 222 | 22.6 | 50 | 100 | PA12 | |
| FS-200HD-PA12 | 7.6(0.299) | 200(7.87) | 50 | 1.97 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-250HD-PA12 | 7.6(0.299) | 250(9.84) | 65 | 2.56 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-300HD-PA12 | 7.6(0.299) | 300(11.81) | 80 | 3.15 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-350HD-PA12 | 7.6(0.299) | 350(13.78) | 90 | 3.54 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-370HD-PA12 | 7.6(0.299) | 370(14.57) | 98 | 3.86 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-380HD-PA12 | 7.6(0.299) | 380(14.96) | 102 | 4.72 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-400HD-PA12 | 7.6(0.299) | 400(15.75) | 105 | 4.13 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-430HD-PA12 | 7.6(0.299) | 430(16.93) | 120 | 4.72 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-450EHD-PA12 | 7.6(0.299) | 450(17.72) | 130 | 5.12 | 560 | 55.6 | 130 | 100 | PA12 | |
| FS-550EHD-PA12 | 7.6(0.299) | 500(19.96) | 150 | 5.91 | 560 | 55.6 | 130 | 100 | PA12 | |
Material: Polyamide 12/PA612
Material Brand: /
Flammability of Raw Material: UL 94HB
Humidity Absorption: 2,7%-2,8% (23℃ -50% R.H.)
Installation Temperature: -10℃~+85℃
Working Temperature: -40℃~+85℃
Max Sustainable Temperature For Short Time: +110℃
Good resistance to bases, oils, greases, oil derivatives, chloriated solvents. Limited resistance to acids. Not resistant to phenols.
Carbon black addition gives a better UV resistance (only for Black Cabe Ties)
