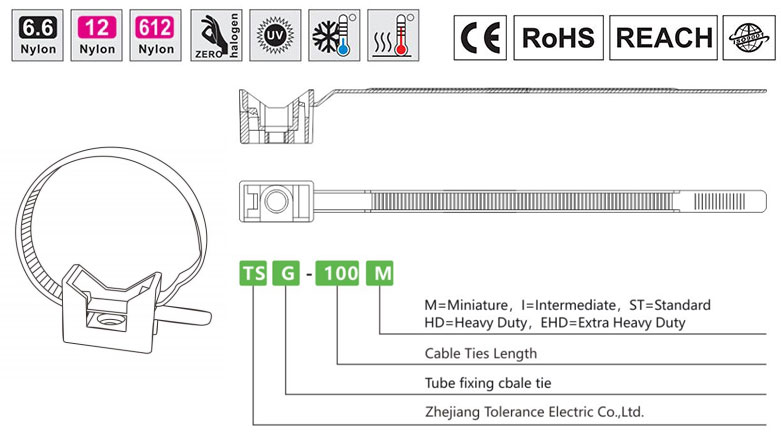

Tube Fixing Cbale Tie

Tube Fixing Cbale Tie
Tube Fixing Cbale Tie

Material: Polyamide 6.6
Material Brand: Huafon626F; Invista 4820L
Flammability of Raw Material: UL 94-V2
Humidity Absorption: 2,7%-2,8% (23℃ -50% R.H.)
Installation Temperature: -10℃~+85℃
Working Temperature: -40℃~+85℃
Max Sustainable Temperature For Short Time: +110℃

If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

Tubular cable ties are used for securing and organizing pipes, tubes, and cables. They are widely used in construction, industrial equipment, and automotive applications. Their design provides stable fastening for various pipe diameters, ensuring a tidy and secure piping system.



Feature&benefits


Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

 Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Features & Benefits
Specifications and Models

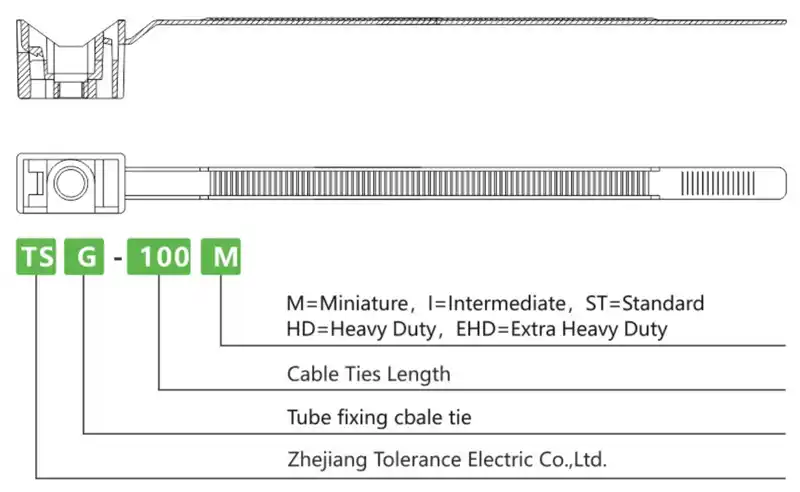

Technical Information

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Package Material
mm/inch mm/inch mm inch N kg ibs Pcs/Bag
TSG-180D 7.6(0.299) 180(7.09) 35 1.38 196 20 50 100 PA66
TSG-280DL 7.6(0.299) 180(7.09) 60 2.36 196 20 50 100 PA66
PACKAGING

Our products have multiple packaging options and provide design support.

  • img

    Cable tie packaging

  • img

    Outer box packaging

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool




FAQs
Perhaps you have other needs?
We partner with you to transform specific application challenges into precision-engineered cable tie solutions, offering complete customization across:
Specialized Head Designs
tailored for your application needs
Custom Material Formulations
optimized for performance
Branded Packaging Solutions
enhancing your brand identity
Exact Color Matching
meeting your visual requirements
Similar products
Marker Cable Ties (ldentification cable ties)
Marker Cable Ties (ldentification cable ties)
Signage cable ties are used to secure and install signs, labels, and indicators. They are widely applied in industrial, construction, transportation, and public facilities. These ties provide stable fastening, ensuring that signs remain visible and secure in various environments.
Mountable Head Cable Ties
Mountable Head Cable Ties
Fixed-head cable ties are widely used in electronics, cable management, automotive repairs, and construction projects. Their fixed-head design prevents slipping or loosening during use, ensuring stable bundling, making them ideal for applications requiring long-term, secure fastening.
Double Head Cable Tie
Double Head Cable Tie
Dual-head cable ties are perfect for applications needing two-point or dual bundling. They are used in cable management, pipe securing, and equipment installation, allowing two separate fixing points with a single tie for added flexibility and efficiency.
Double Locking Cable Tie
Double Locking Cable Tie
Dual-lock cable ties feature external serrations designed for high-vibration environments, providing consistent strength and minimizing wear on sensitive wires, cables, and hoses. The locking teeth face outward to enhance gripping and durability.
Flat-Head Cable Ties
Flat-Head Cable Ties
Flat-head cable ties are ideal for securing wire bundles to frames or handlebars, and for use in various devices and construction. Their smooth head design minimizes potential damage and ensures a secure, stable hold.
