Push-Mount Ties

Reusable push-mount cable ties
Reusable push-mount cable ties

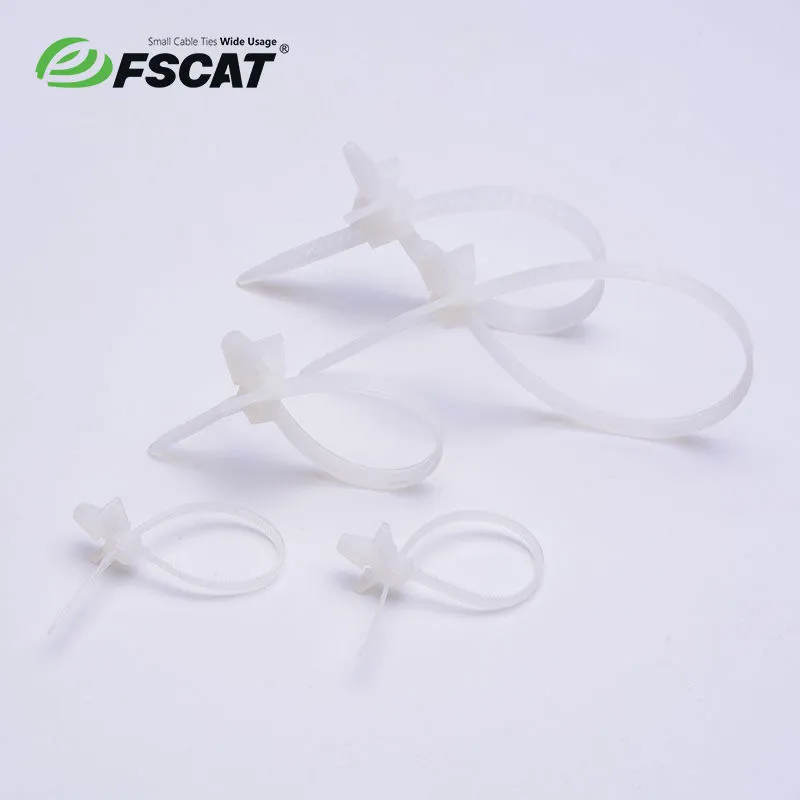

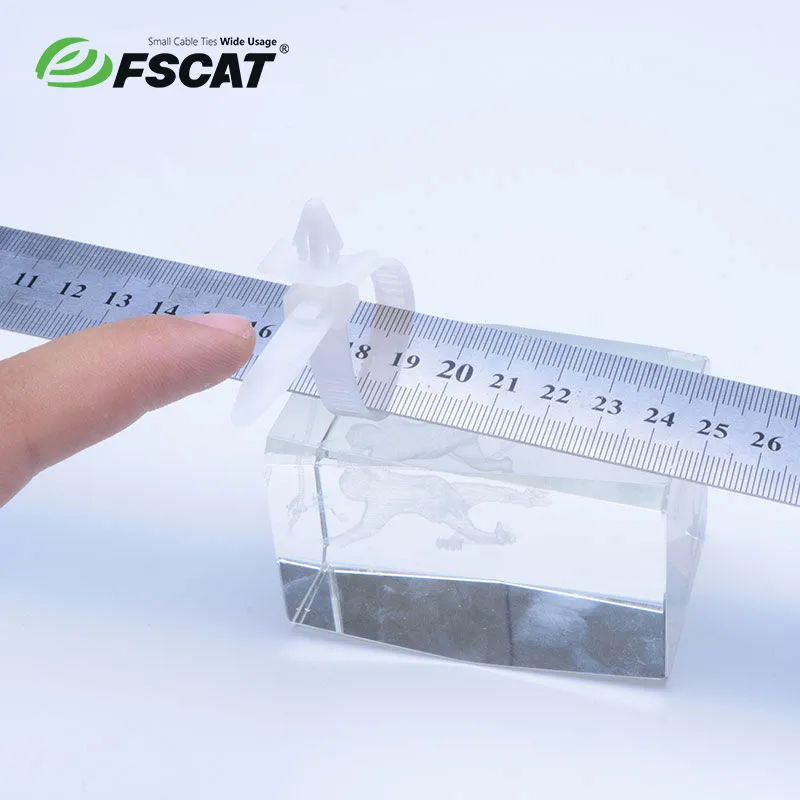

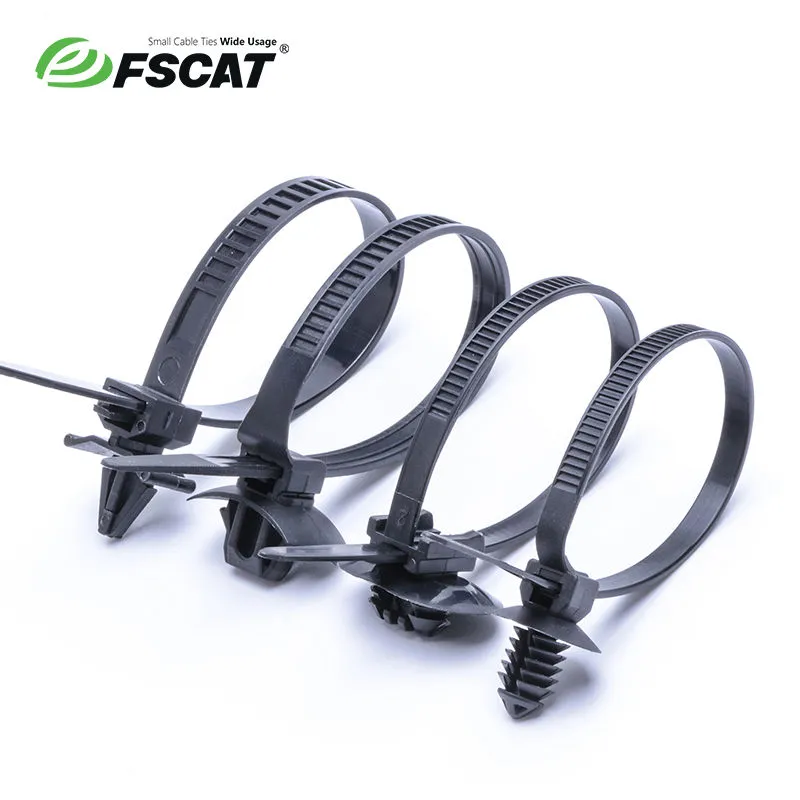

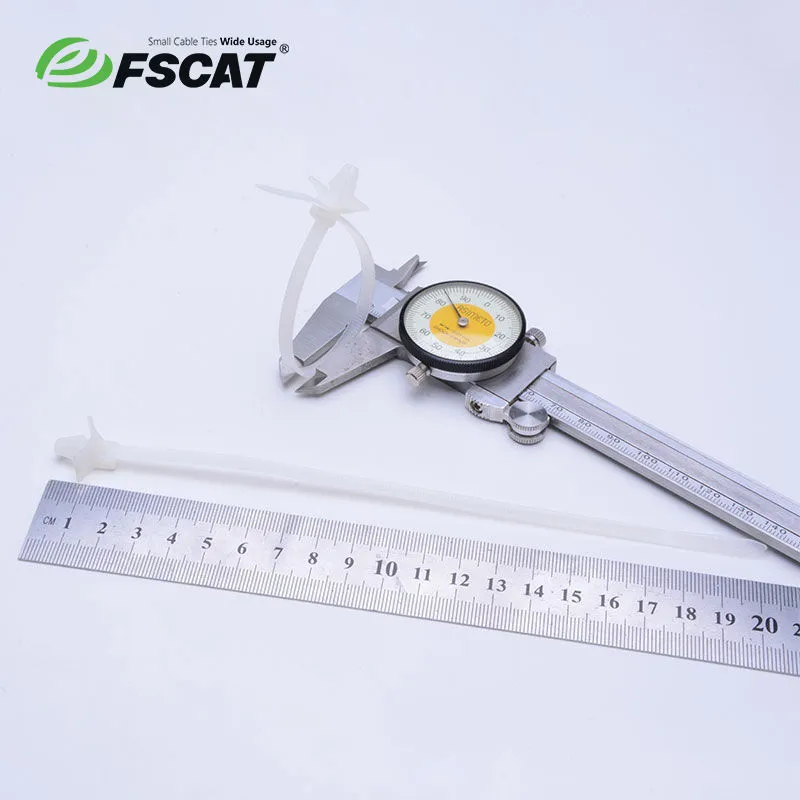

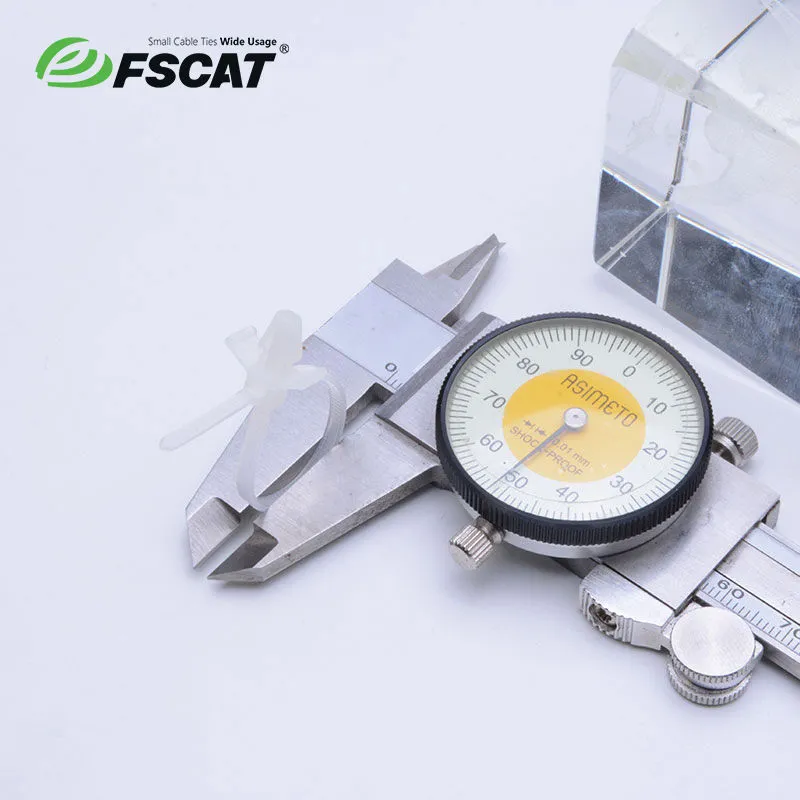

Push-Mount Type
Push-Mount Type
Push-Mount Type
Push-Mount Type
Push-Mount Type
Push-Mount Type

Combines cable tie, mount, and fastener in one part.
Designed for one-step fastening applications.
Anchor easily presses into pre-drilled holes for secure locking.
Provides constant tension for stable and secure installation.
Curved tip facilitates easy pickup and fast initial threading.

If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

Product Feature

◇Combines cable tie, mount and fastener into a single part.
◇Used to attach bundles to another surfacesuch as a flat panel.
◇Anchor is easy pressed into a pre-formedhole and locks in place.
◇Wings provide constant tension for a stable,secure, and rattle-free installation.
◇Curved tip is easy to pick up from flat surfaces and allows fa ster initial th reading to speed installation.
◇For indoor or outdo or use



Application

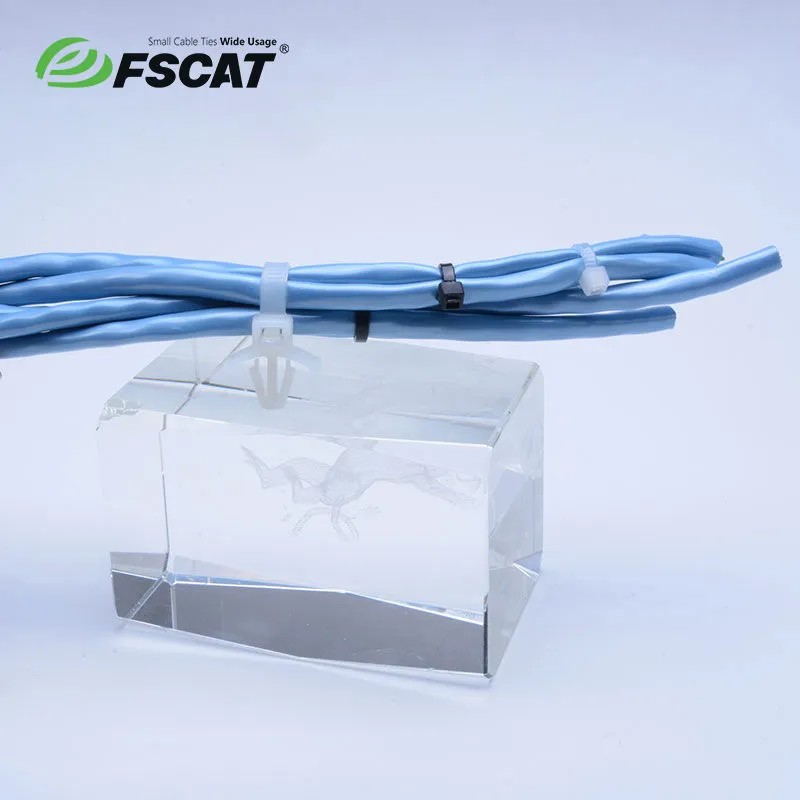

Push Mount cable ties are recommended when an application requires one step fastening. The push mount portion of the cable tie is found outside the head of the tie and is pushed into a predrilled hole and locks into place. Push Mount cable ties provide a constant tension and enable a stable and secure fixture. The one piece construction with a push mount feature outside the head of the tie allows for consistent performance and reliability. Natural mounting hole cable ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Packaging of both styles of the Push Mount cable ties is in bulk 1000 or 500 piece bags or smaller 100 piece bags.

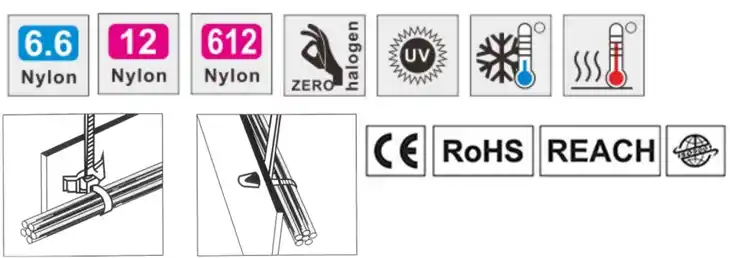

plane figure;CE,RoHS,REACH,ISO9001



Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Features & Benefits
Specifications and Models

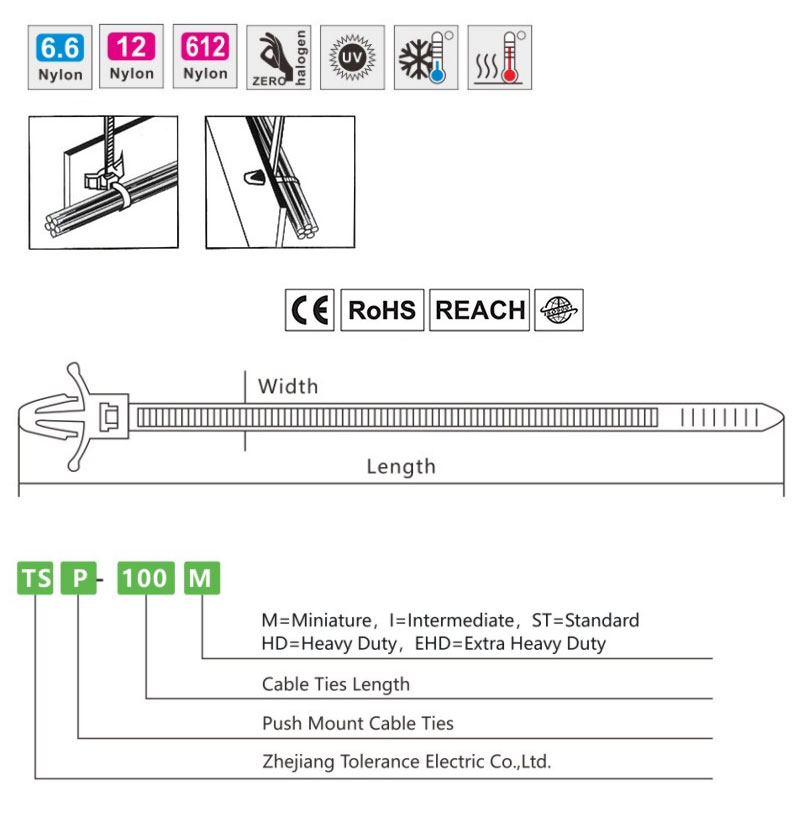

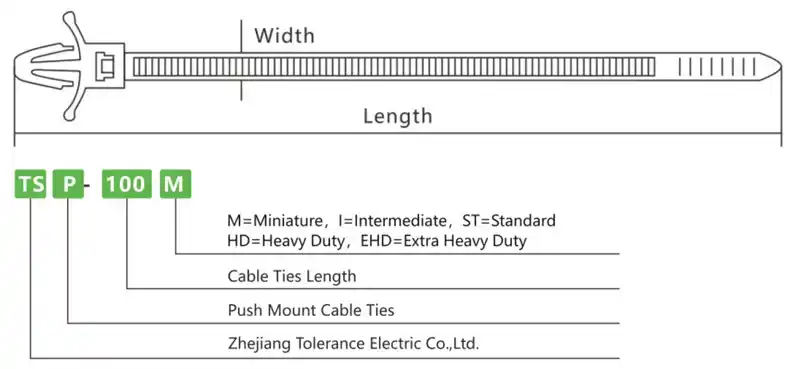

Technical Information

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Material
mm/inch mm/inch mm inch N kg lbs
TSP2.5-100M 2.5(0.098) 100(3.94) 22 0.86 80 8.2 18 PA66
TSP3.6-1301 3.6(0.142) 130(5.12) 32 1.26 180 18.2 42 PA66
TSP3.6-1501 3.6(0.142) 150(5.91) 35 1.37 180 18.2 42 PA66
TSP3.6-169I 3.6(0.142) 169(6.66) 38 1.49 180 18.2 42 PA66
TSP4.8-100ST 4.8(0.189) 100(3.94) 22 0.86 222 22.6 50 PA66
TSP4.8-130ST 4.8(0.189) 130(5.12) 32 1.26 222 22.6 50 PA66
TSP4.8-160ST 4.8(0.189) 160(6.30) 36 1.42 222 22.6 50 PA66
TSP4.8-190ST 4.8(0.189) 190(7.48) 46 1.81 222 22.6 50 PA66
TSP7.6-150HD 7.6(0.299) 150(5.91) 35 1.37 560 57.1 130 PA66
TSP7.6-175HD 7.6(0.299) 175(6.89) 42 1.65 560 57.1 130 PA66
PACKAGING

Our products have multiple packaging options and provide design support.

  • All-inclusive OPP-PP bag

    All-inclusive OPP/PP bag

  • Hollow OPP-PE bag

    Hollow OPP/PE bag

  • Barrel-packed

    Barrel-packed

  • Blister packaging

    Blister packaging

  • Partitioned belt packaging

    Partitioned belt packaging

  • Boxed

    Boxed

  • Divider strip packaging divider box

    Divider strip packaging divider box

  • Outer box

    Outer box

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool
