Material: Polyamide 6.6HS
Material Brand: /
Flammability of Raw Material: UL 94HB
Humidity Absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation Temperature: -25℃~+85℃
Working Temperature: -40℃~+105℃
Max Sustainable Temperature For Short Time: +120℃
Certifications
For lower prices on bulk purchases, please contact us at
Automotive cable ties with threaded heads allow secure fastening using a nut, making them ideal for wiring harnesses on vehicle frames, engines, or dashboards. They offer strong resistance to vibration, heat, and harsh conditions, ensuring reliable cable management in automotive applications.
Material: Polyamide 6.6HS
Material Brand: /
Flammability of Raw Material: UL 94HB
Humidity Absorption: 2,7%-2,8% (23°C -50% R.H.)
Installation Temperature: -25℃~+85℃
Working Temperature: -40℃~+105℃
Max Sustainable Temperature For Short Time: +120℃
Good resistance to bases, oils, greases, oil derivatives, chloriated solvents. Limited resistance to acids. Not resistant to phenols.

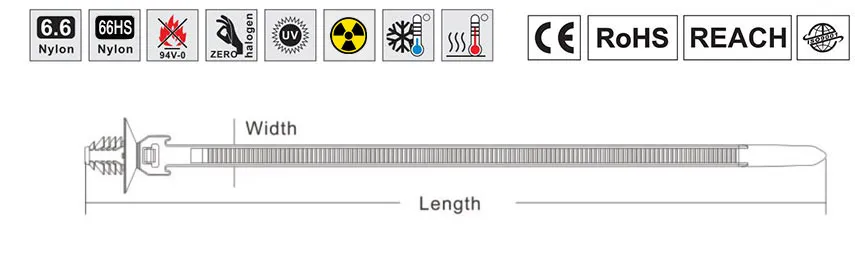

| Item No. | Width | Length | Fit Hole | Panel Thickness | Diameter | Material | Temperature (℃) |
| mm/inch | mm/inch | (mm) | (mm) | ⌀ | |||
| T50SOSFT6E | 4.6(0.18") | 165(6.50") | 6.5-7.0 | 0.75-3.0 | 1-35 | PA66HS | -40℃ to+105℃ |
