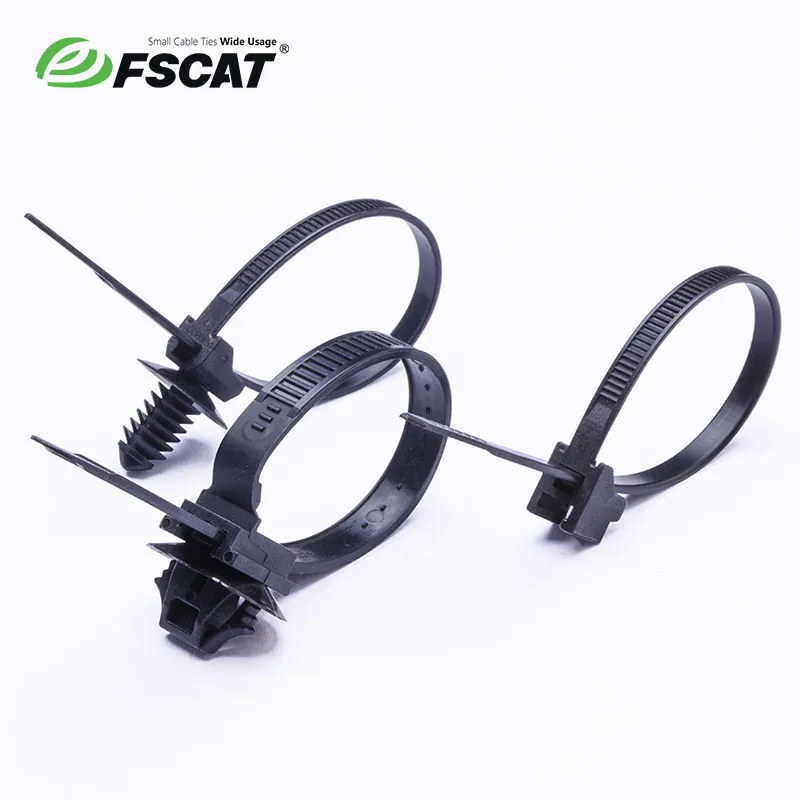

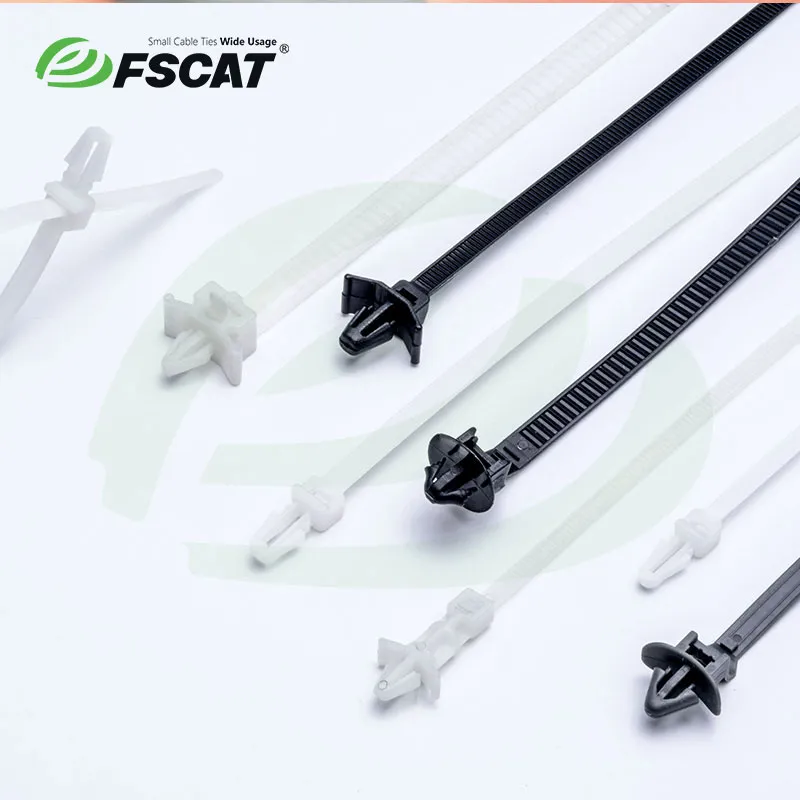

Name: Automobile Cable Ties
Brand: Tolerance
SKU: 00184
Rating: 4.1 (142 reviews)

Product Description

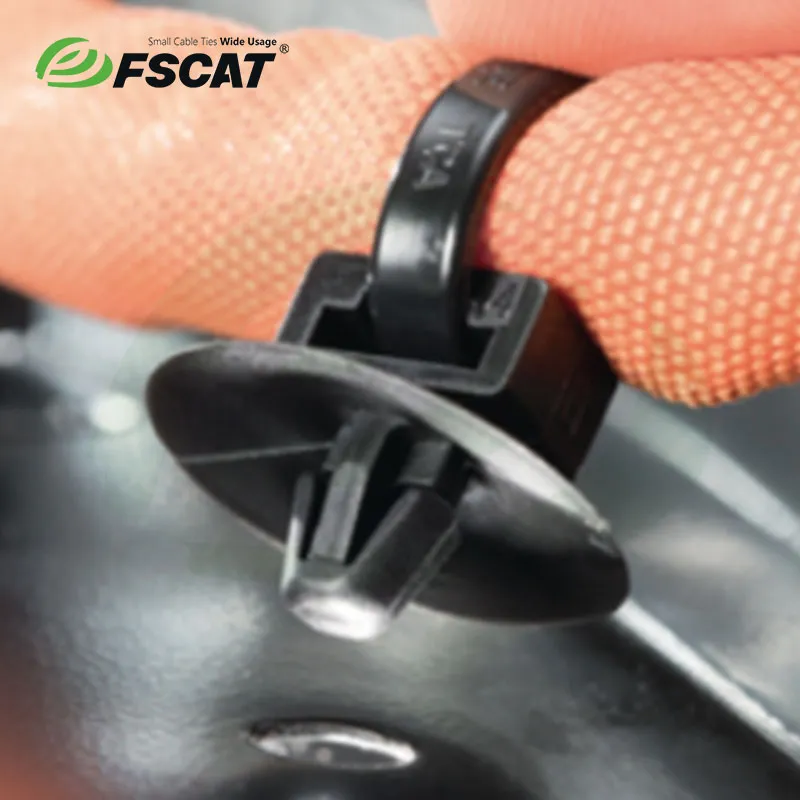

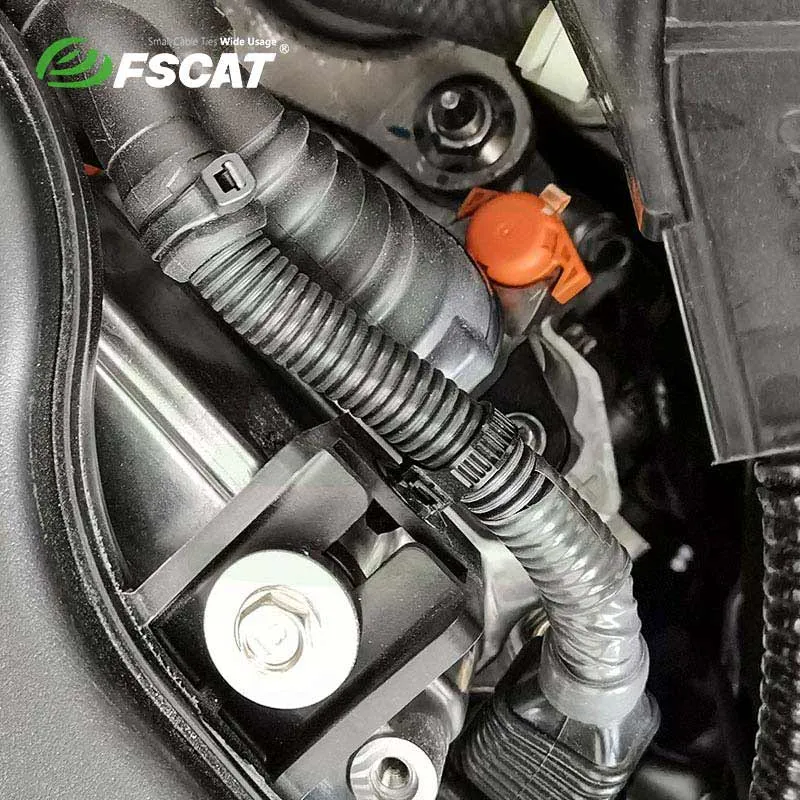

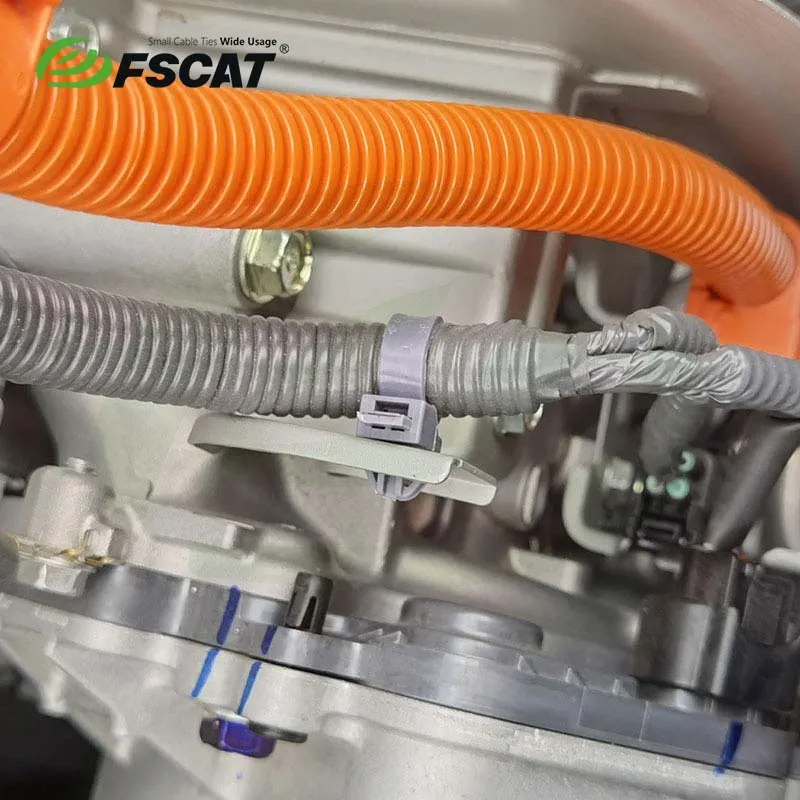

Automotive push-mount cable ties are used for securing and organizing wire harnesses in vehicles. They quickly insert into pre-drilled holes and lock in place, ensuring stable positioning in areas like the engine bay or undercarriage where secure fastening is critical.

Application

Automobile Cable Ties is a big concept name. There are nearly 100 designs. Different car types use different car ties. Our company can provide the types of car ties in the catalog. Customers are also welcome to design and produce them.Automobile Cable Ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

Technical Information

Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

plane figure;CE,RoHS,REACH,ISO9001

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCE packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.

Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Bubble box packaging for supermarket

Cable Ties,Miniature Cable Ties,Bubble box packaging

Product Specification

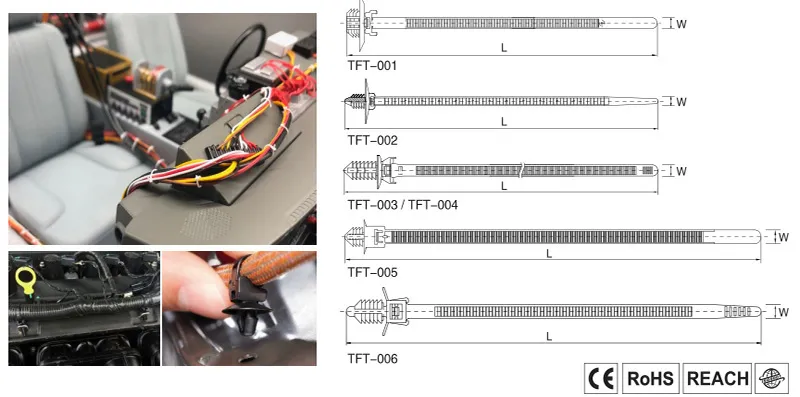

Item No.	Length		Width		Max.Bundle Φ		Min.Loop Tensile Strength			Mounting Hole Φ mm(inch)	Panel Thickness mm(inch)
Item No.	mm	inch	mm	inch	mm	inch	N	Kgf	lbf	Mounting Hole Φ mm(inch)	Panel Thickness mm(inch)
TFT-001	153	6.02	5.0	0.20	36	1.42	178	18.2	40	Φ7.0X13.0(0.28X0.51)	0.8~1.5(0.32x0.06)
TFT-002	186	7.32	4.8	0.19	42	1.65	133	13.6	30	Φ7.0(0.30)	1.0~2.5(0.04x0.10)
TFT-003	210	8.25	4.8	0.19	50	1.97	218	22.2	49	Φ7.0X7.8(0.29X0.31)	6.0~8.0(0.24x0.32)
TFT-004	113	4.44	4.8	0.19	25	0.98	218	22.2	49	Φ7.0X7.8(0.29X0.31)	6.0~8.0(0.24x0.32)
TFT-005	210	8.25	6.5	0.26	50	1.97	218	22.2	49	Φ9.0(0.351)	1.0~2.8(0.04x0.11)
TFT-006	115	6.10	4.8	0.19	35	1.38	133	13.6	30	Φ7.5X8.0(0.30X0.32)	8.0~1.6(0.03x0.06)

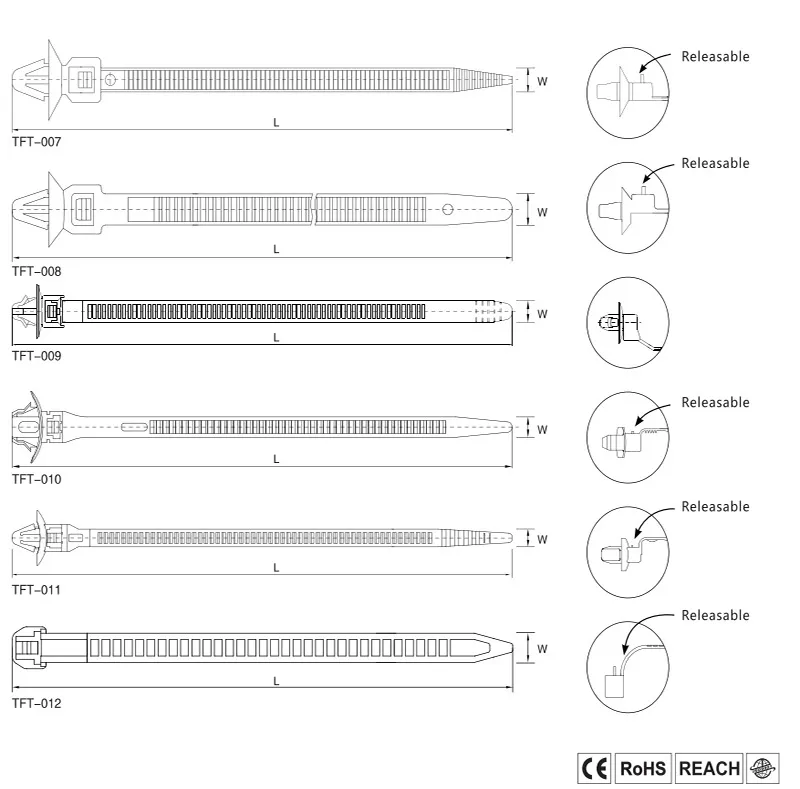

Item No.	Length		Width		Max.Bundle Φ		Min.Loop Tensile Strength			Mounting Hole Φ mm(inch)	Panel Thickness mm(inch)
Item No.	mm	inch	mm	inch	mm	inch	N	Kgf	lbf	Mounting Hole Φ mm(inch)	Panel Thickness mm(inch)
TFT-007	110	4.33	4.8	0.19	22	0.87	133	13.6	30	Φ5.7(0.22)	1.0~3.0(0.04x0.12)
TFT-008	154	6.06	6.6	0.26	35	1.38	178	18.2	40	Φ5.8(0.23)	1.0~3.0(0.04x0.12)
TFT-009	165	6.50	6.4	0.25	35	1.38	392	40.0	80	Φ6.5(0.26)	1.0~3.0(0.04x0.12)
TFT-010	174	6.86	6.5	0.26	43	1.69	147	15.0	33	Φ12.7(0.50)	1.0~2.5(0.04x0.10)
TFT-011	170	6.69	5.5	0.22	40	1.57	178	18.2	40	Φ6.5(0.26)	1.0~2.8(0.04x0.11)
TFT-012	134	5.26	7.1	0.28	33	1.30	392	40.0	88
