Spiral Wrapping Bands
Spiral Wrapping Bands
Spiral Wrapping Bands
Spiral Wrapping Bands
Spiral Wrapping Bands
Spiral Wrapping Bands

Material: PE
Color: Standard in natural.Black and other are colors available upon request.

Description:

1.Flexible construction enable bands to follow wire ways easily.
2.Durable, reusable with retained spiral strength.
3.Fix ends of band with cable ties and spiral wire bundles in clockwise direction to complete works.
4.Expand spiral range almost without limit. An economical way of cable binding. Easily applied to electric harness,cables and wire bundles. Cut-to-fit versatility in convenient roll-form.

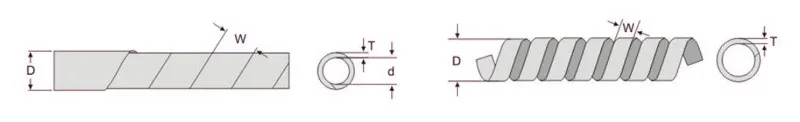

ichnography

ITEM NO

d

D

W

Wrapping Range

SWB-03

1.5

3.0

4.0

1.5-10

SWB-06

4.0

6.0

7.0

4-50

SWB-08

6.0

8.0

10.8

6-60

SWB-10

8.0

10.0

11.4

7.5-60

SWB-12

9.0

12.0

14.0

9-65

SWB-15

12.0

15.0

15.0

12-75

SWB-19

15.0

19.0

18.0

15-100

SWB-24

20.0

24.0

19.5

20-130

SWB-30

26.0

30.0

43.0

26-150

Spiral Wrapping Bands
