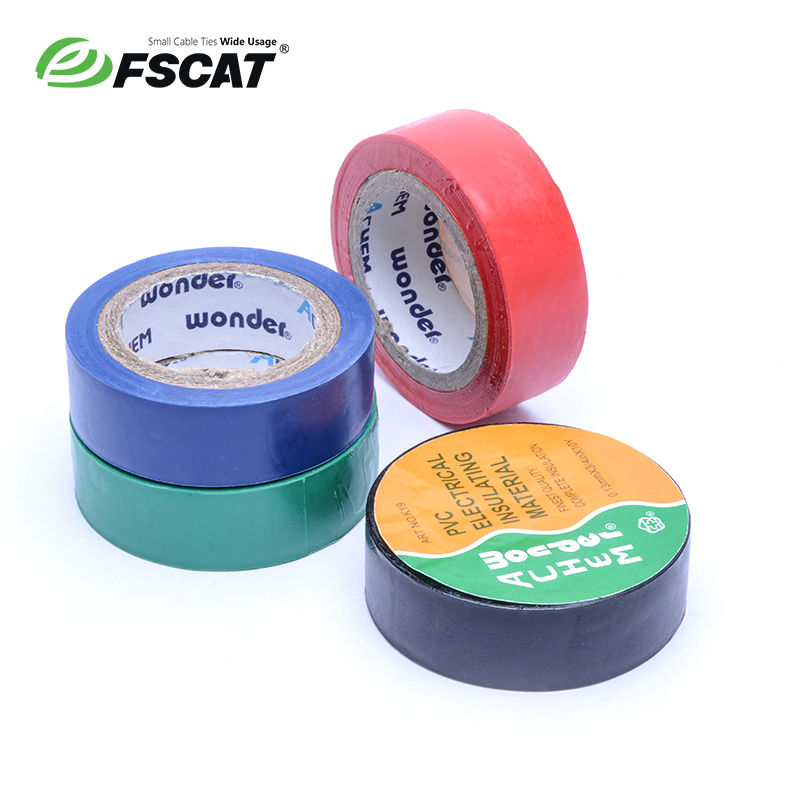

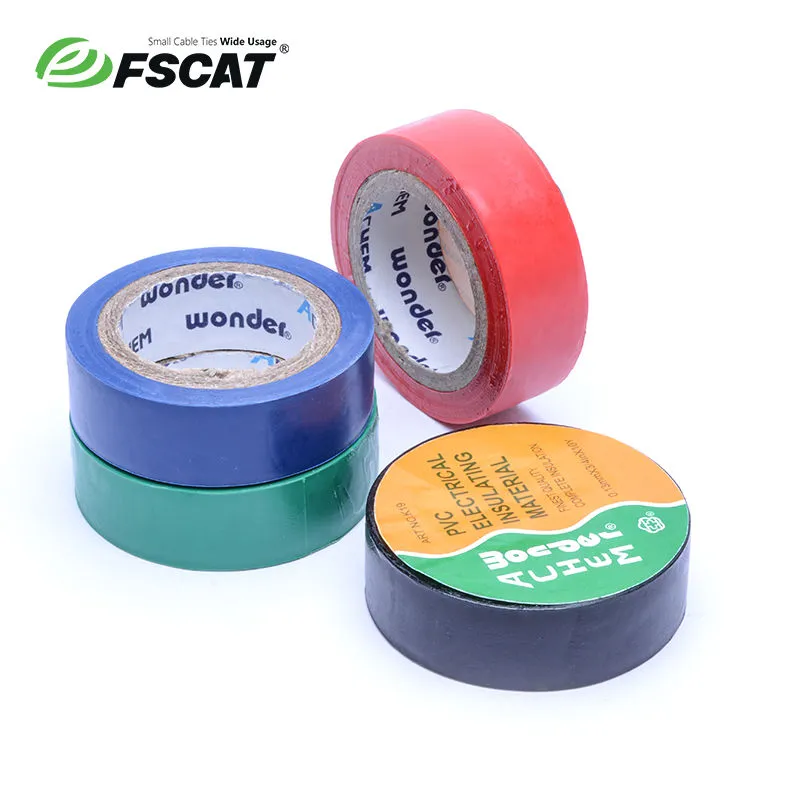

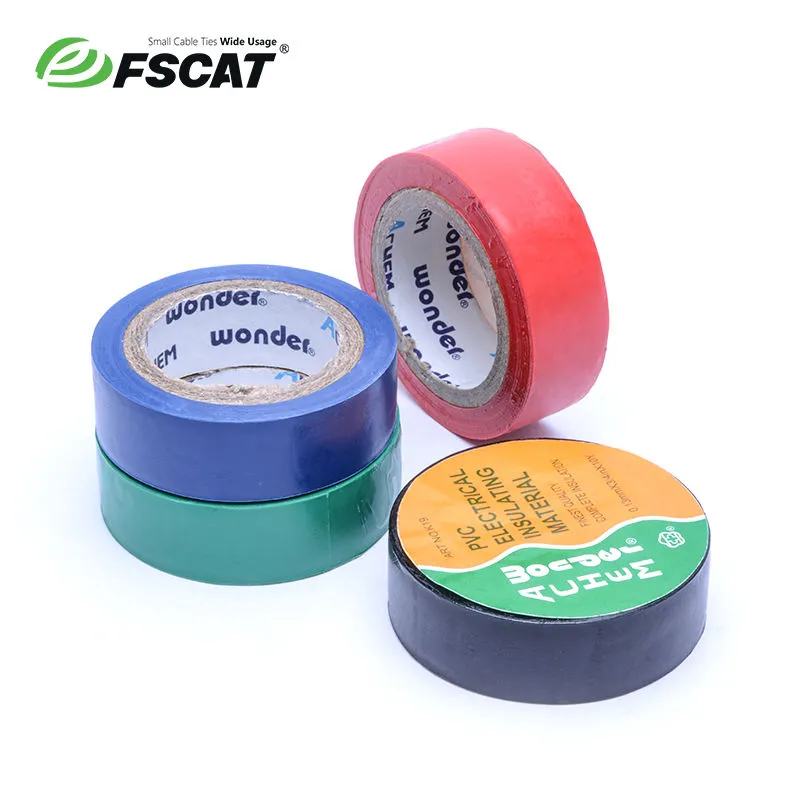

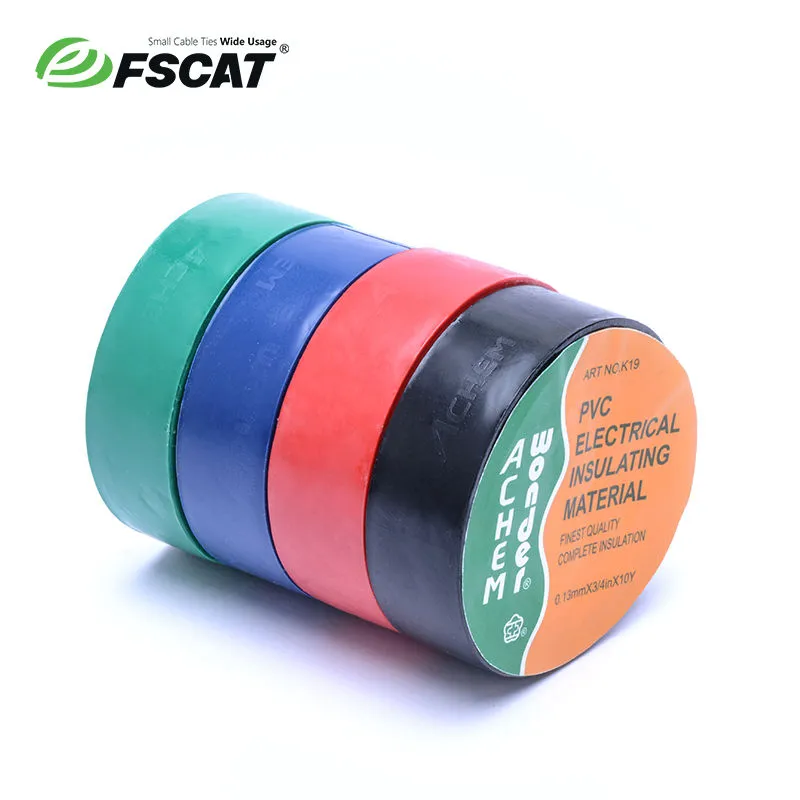

PVC Insulating Tape
PVC Insulating Tape
PVC Insulating Tape
PVC Insulating Tape
PVC Insulating Tape
PVC Insulating Tape

Basic composition of tape: Tread, Bottom Glue, PVC Film
Adhesive Tape basic features:
Has good insulation, pressure weathering and other characteristics Has good adhesive properties. Red,Yellow, Blue, White, Black, Green and other Colors, and can print guest marks.
Use:

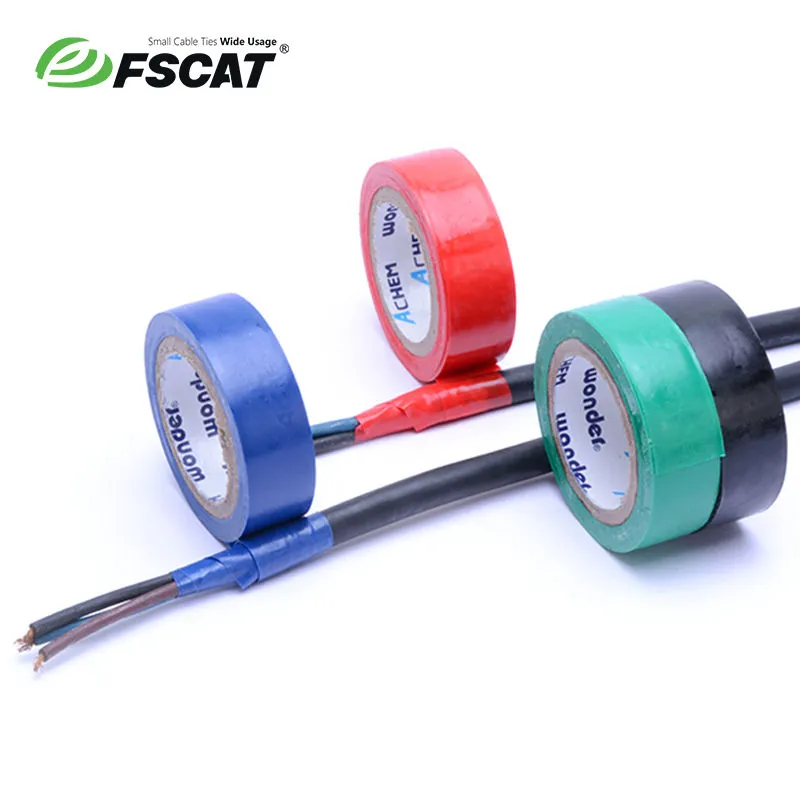

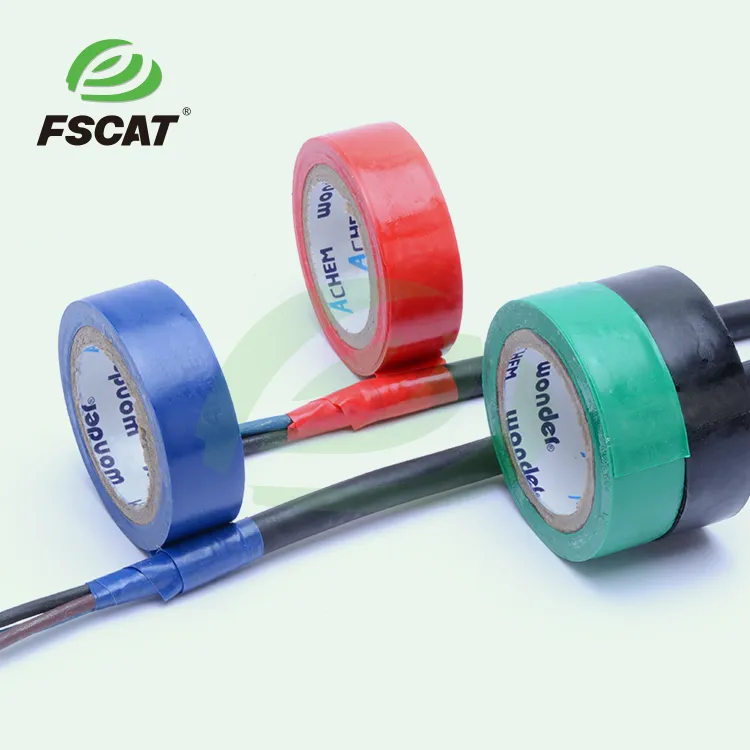

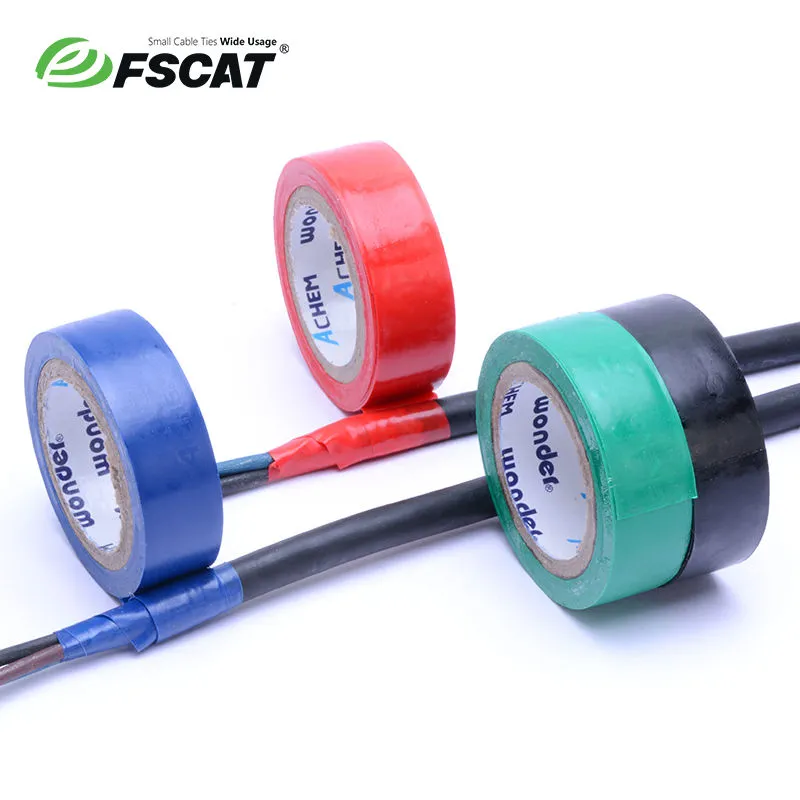

Main insulation for cable connector below 600V.
General Cable pipe bundle.
600V line tag color following.
Electronic Electrical insulation protection for the industry.

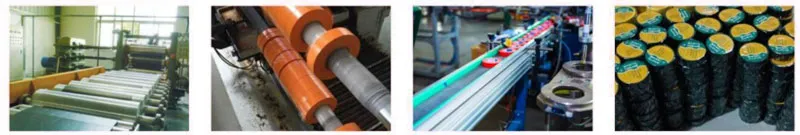

PVC insulation tape manufacturing process



ITEN No.

Substrate

Glue Type

Thickness

(mm)

Peel force

(N/cm)

Tensile Strength

(N/cm)

Elongation

(%)

Temperature resistance

(℃)

Breakdown strength

(KV/mm)

100D

PVC

Rubber

0.10

1.5

14

160

80

≥40

110D

PVC

Rubber

0.11

1.5

15

160

80

≥40

130D

PVC

Rubber

0.13

1.5

17

160

80

≥40

150D

PVC

Rubber

0.15

1.5

20

180

80

≥40

165D

PVC

Rubber

0.165

1.5

22

180

80

≥40

180D

PVC

Rubber

0.18

1.5

26

180

80

≥40

190D

PVC

Rubber

0.19

1.5

28

200

80

≥40

200D

PVC

Rubber

0.20

1.5

28

200

80

≥40

100Z

PVC

Rubber

0.10

1.5

14

160

80

≥40

110Z

PVC

Rubber

0.11

1.5

15

160

80

≥40

130Z

PVC

Rubber

0.13

1.5

17

160

80

≥40

150Z

PVC

Rubber

0.15

1.5

20

180

80

≥40

165Z

PVC

Rubber

0.165

1.5

22

180

80

≥40

180Z

PVC

Rubber

0.18

1.5

26

180

80

≥40

190Z

PVC

Rubber

0.19

1.5

28

180

80

≥40

200Z

PVC

Rubber

0.20

1.5

28

200

80

≥40



Adhesive Type

Thickness (mm)

Width (mm)

Length (m)

Convention model

Rubber solver type

0.130±0.030

19~1030±1

6 yds, 8 yds, 10 yds,

20 yds, 25 yds,

5m, 10m, 20m,

25m, 30m etc...

0.13mm×19mm×8yds

0.150±0.030

0.13mm×19mm×10yds

0.180±0.030

0.13mm×19mm×20yds

0.200±0.030

0.15mm×15mm×10m

0.250±0.030

0.15mm×19mm×20m

0.500±0.030

0.15mm×25mm×25m
