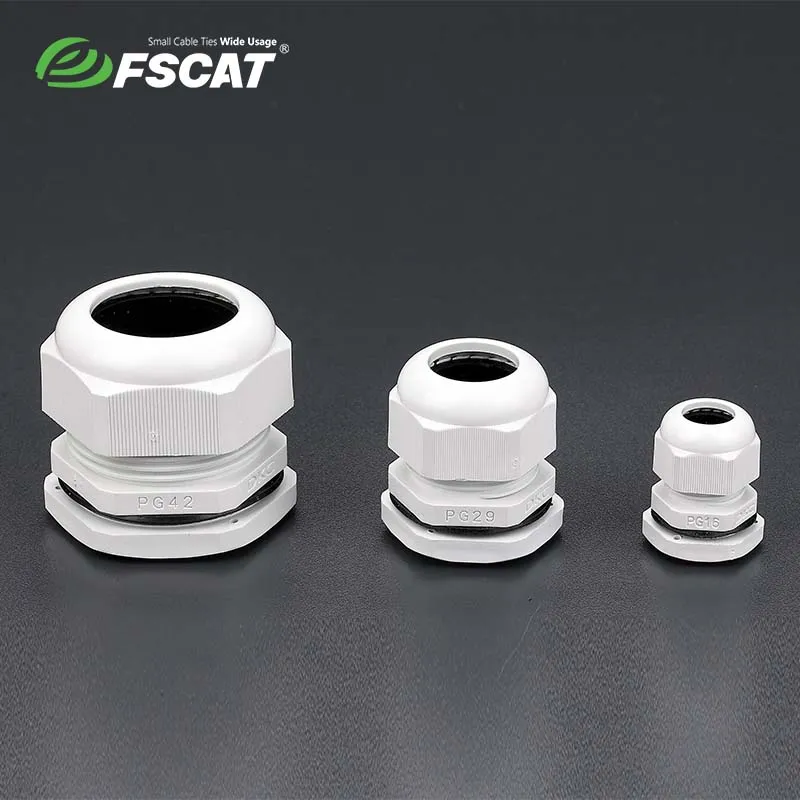

Product Overview
◇Thread: PG thread
◇Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A.C.E parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
◇Protection degree: lP68
◇Working temperature: -40℃ to 100℃
◇Features: The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid , alcohol, oil, grease and common solvency.
◇Colours: Black (RAL9005)、gray (RAL7035), other color available upon request.
|
Product Model |
Applicable to cable |
Thread diameter (C1) |
Thread length (C2) |
Wrench diameter |
|
|
Normal |
Thickened |
||||
|
PG7 |
3~6.5 |
2~5 |
12.5 |
8 |
16 |
|
PG9 |
4~8 |
2~6 |
15.2 |
8 |
19 |
|
PG11 |
5~10 |
3~7 |
18.6 |
8 |
22 |
|
PG13.5 |
6~12 |
5~9 |
20.4 |
10 |
24 |
|
PG16 |
10~14 |
7~12 |
22.5 |
10 |
27 |
|
PG19 |
12~16 |
10~13 |
24 |
10 |
27 |
|
PG21 |
13~18 |
9~16 |
28.3 |
10 |
33 |
|
PG25 |
16~21 |
13~18 |
30 |
11 |
35 |
|
PG29 |
18~25 |
13~20 |
37 |
12 |
42 |
|
PG36 |
22~32 |
20~26 |
47 |
14 |
52 |
|
PG42 |
32~38 |
25~31 |
54 |
14 |
60 |
|
PG48 |
37~44 |
29~35 |
59.3 |
15 |
64 |
|
PG63 |
42~50 |
32~40 |
71 |
28 |
77 |
|

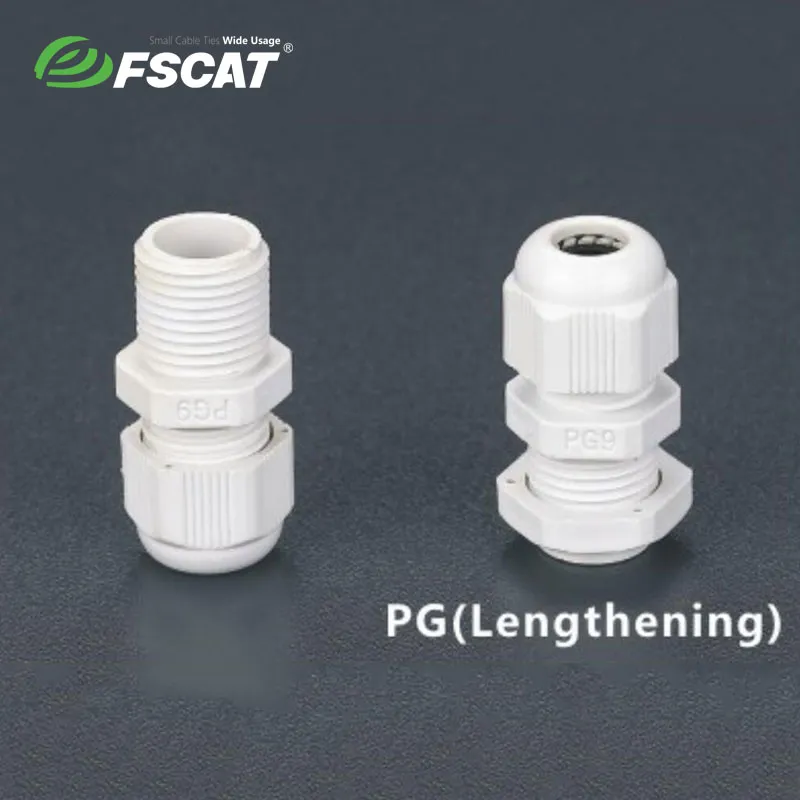

PG7L |
3~6.5 |
2~5 |
12.5 |
15 |
16 |
|
PG9L |
4~8 |
2~6 |
15.2 |
15 |
19 |
|
PG11L |
5~10 |
3~7 |
18.6 |
15 |
22 |
|
PG13.5L |
6~12 |
5~9 |
20.4 |
15 |
24 |
|
PG16L |
10~14 |
7~12 |
22.5 |
15 |
27 |
|
PG19L |
12~16 |
10~13 |
24 |
15 |
27 |
|
PG21L |
13~18 |
9~16 |
28.3 |
15 |
33 |
|
PG29L |
18~25 |
13~20 |
37 |
18 |
42 |
|
PG36L |
22~32 |
20~26 |
47 |
18 |
52 |
|
PG42L |
32~38 |
25~31 |
54 |
18 |
60 |
|
PG48L |
37~44 |
29~35 |
59.3 |
18 |
64 |
