Pipe Clip

Pipe Clip
Pipe Clip
Pipe Clip
Pipe Clip
Pipe Clip

Material: PE

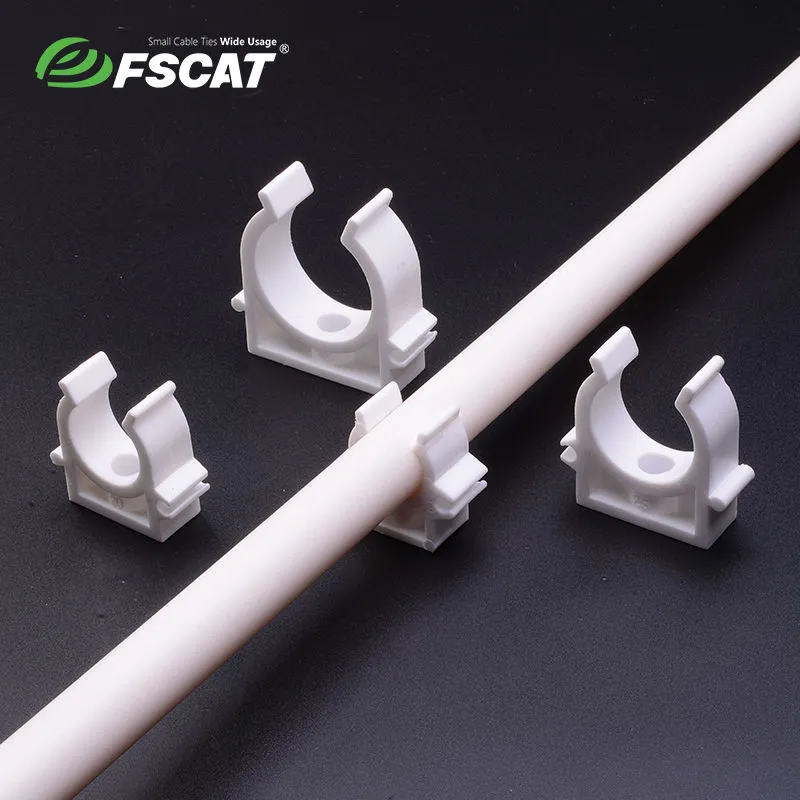

Screw the pipe clip to the wall, and push the pipe or cable into clip to fasten.

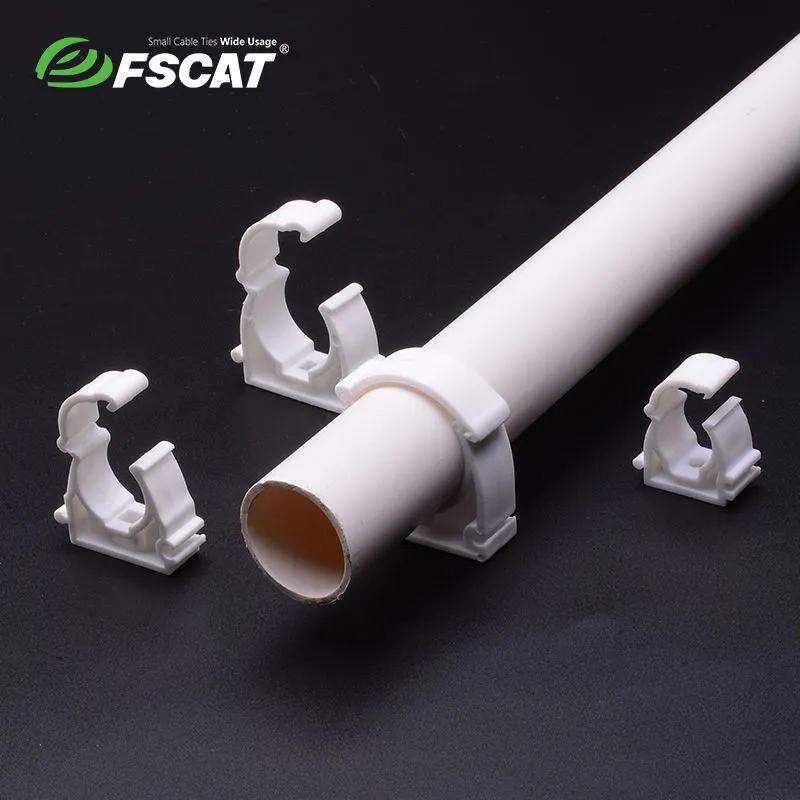

Can be unlimited extended ( even between different items) with special buckle design on the sides. Pipe or cable is fastened to the clip in order. Easy application.

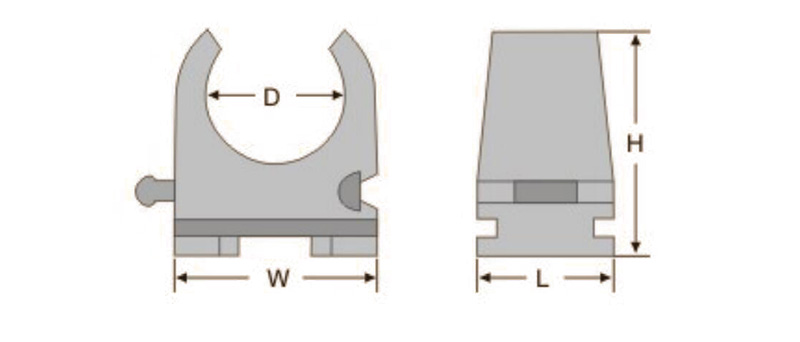

ichnography

Unit: mm

ITEM NO

D

W

L

     H

TPS-16

16.0

21.5

13.7

     30.2

TPS-20

20.0

27.5

13.2

     34.4

TPS-25

25.0

32.4

13.2

     40.7

TPS-32

32.0

40.2

15.1

     47.3

Unit: mm

ITEM NO

D

W

L

H

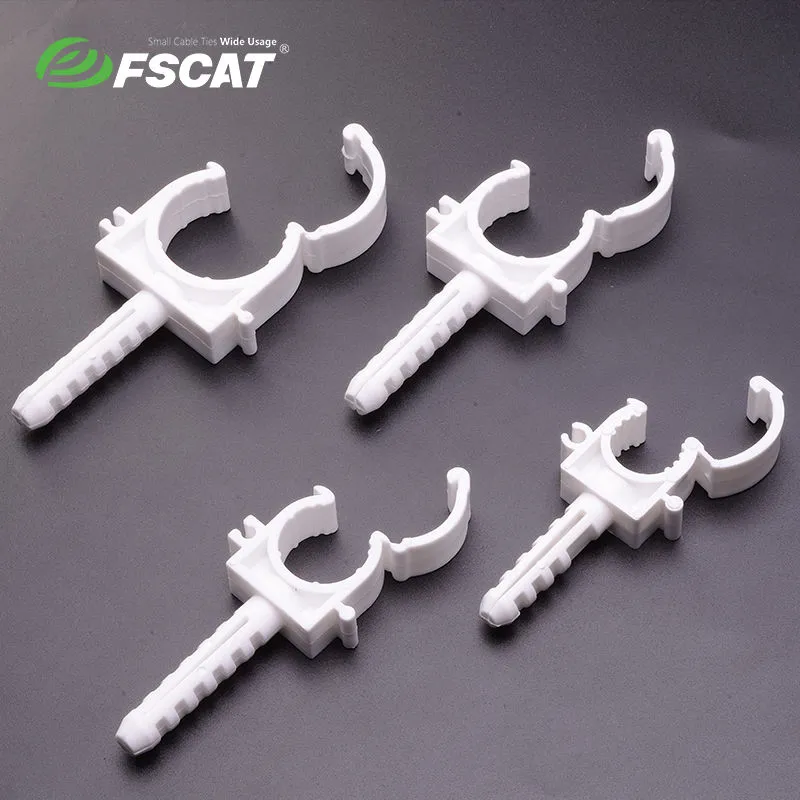

TPB-16

16.0

22.5

 13.2

71.5

(9.5×38.5)

TPB-20

20.0

26.1

 13.5

80.1

(9.5×44.4)

TPB-25

25.0

31.2

 14.0

84.8

(9.8×43.5)

TPB-32

32.0

39.9

 13.8

93.4

(9.8×44.5)

Unit: mm

ITEM NO

D

W

L

     H

TPW-16

16.0

22.5

14.0

     28.2

TPW-20

20.0

30.4

11.8

     36.2

TPW-25

25.0

35.2

13.8

    40.8

TPW-32

32.0

42.1

14.9

    47.2

Unit: mm

ITEM NO

D

W

L

     H

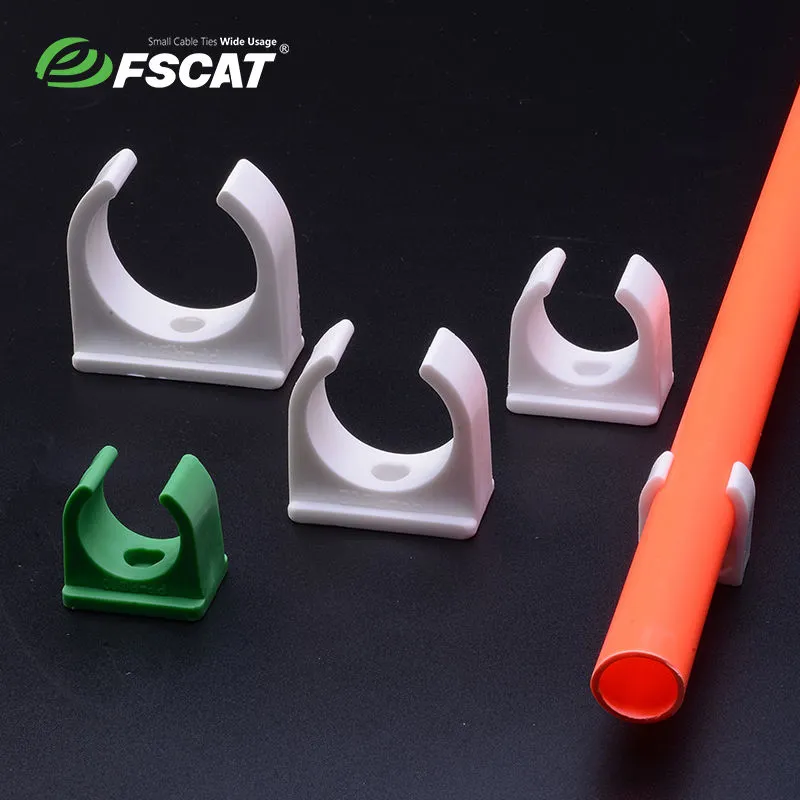

TPC-16

16.0

19.7

10.0

     21.5

TPC-20

20.0

28.1

21.4

    26.5

TPC-25

25.0

32.5

21.1

    30.8

TPC-32

32.0

38.7

20.9

    37.9

TPC-40

40.0

47.3

20.9

    45.2
