Releasable Ties

Releaseable cable ties
Releaseable cable ties
Releasable Type
Releasable cable tie,Releasable zip tie
Releasable zip tie
Releasable cable tie
Releasable Type cable tie
Releasable Type
Releasable Type

Construction:

integral structure
designed with a release function at the tie head
Performance: Offers consistent performance and reliability

Material Options:

Natural: Preferred for indoor use
UV Black:  with greater UV resistance

If you have special customization needs or need to lower the price for bulk purchases, please contact us.
Get in Touch
Product Description

Product Feature

◇Extended release tab permits easy releaseand re-usewhere changes are anticipated duringdevelopment production, or servicing in the field.
◇One-piece construction for consistentperformance and reliability.
◇Curved tip is easy to pick up from flat surfaceand allows faster initial th reading to speedinstallation.
◇A variety of materials is available for specificapplications.
◇Fnrindoor or outdoor use.



Application

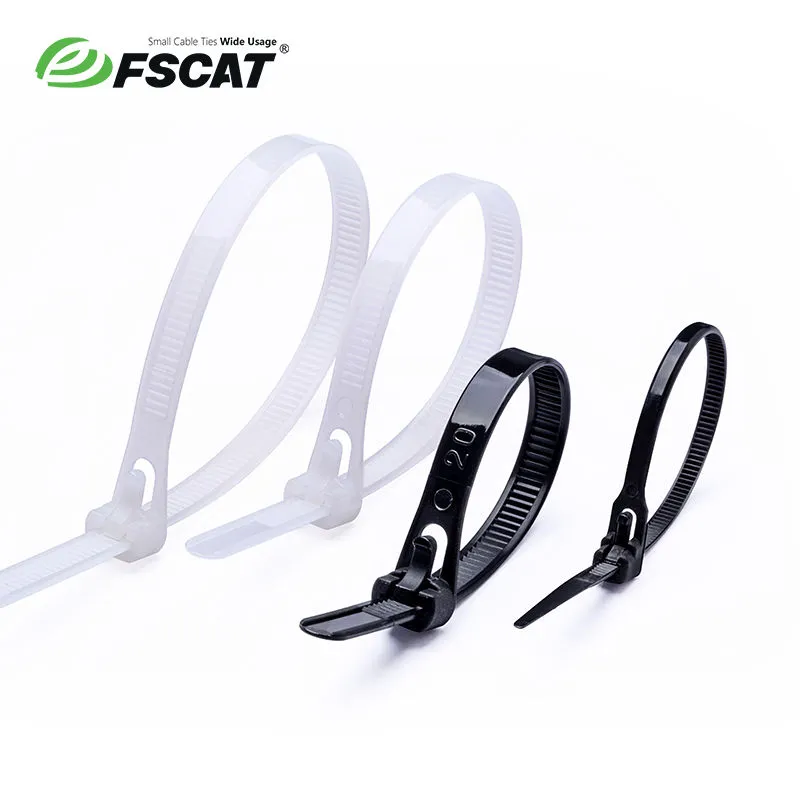

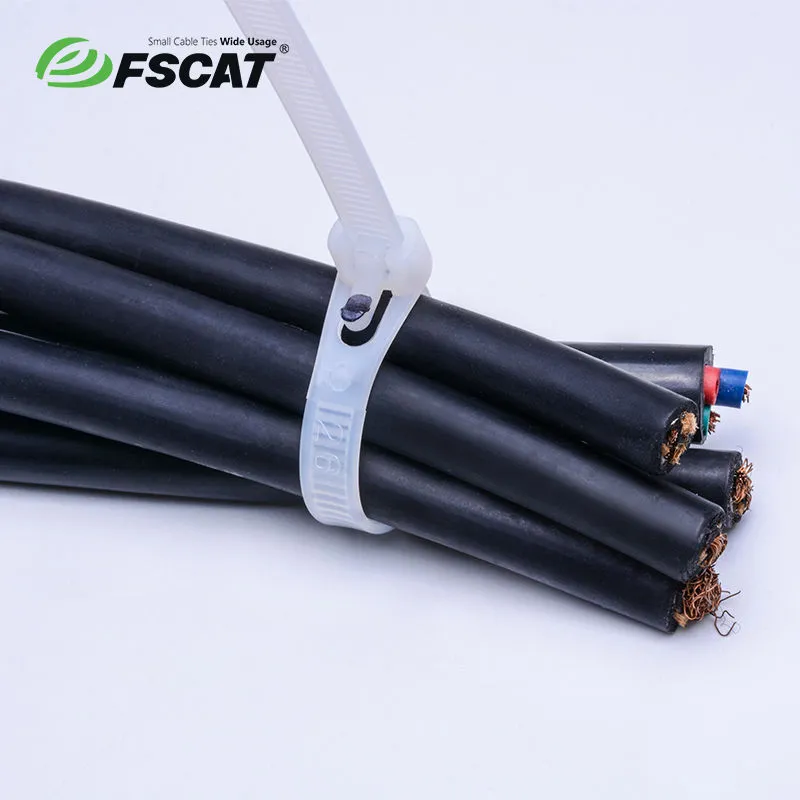

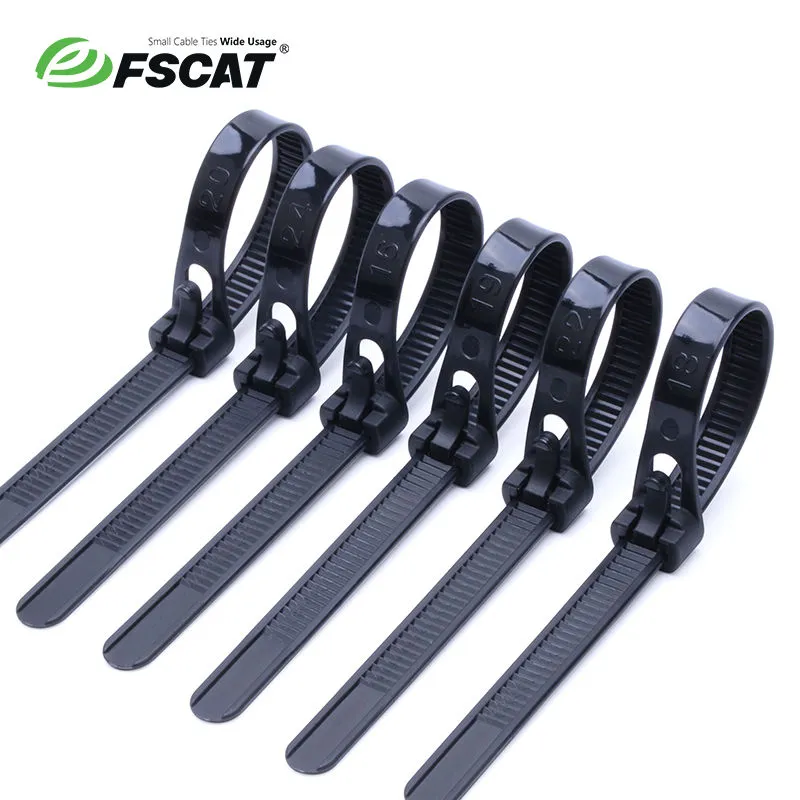

Releasable cable ties offer the perfect solution for those applications requiring reuse or reinstallation of a cable tie.  The one piece construction with a releasable feature designed as part of the head of the tie allows for consistent performance and reliability.  Natural releasable cable ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Releasable cable ties are available in two different designs.  One design has an extended pawl or locking mechanism in the head of the tie which can be released with a thumbnail force.  The second design has a large horizontal tab feature which releases the tie with a push onto the tab. Releasable Tab Cable Ties are available in lengths from 150MM--400MM(6” – 15.8”) and have a 22KG(50 lb) tensile strength. Releasable Tab cable ties are available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

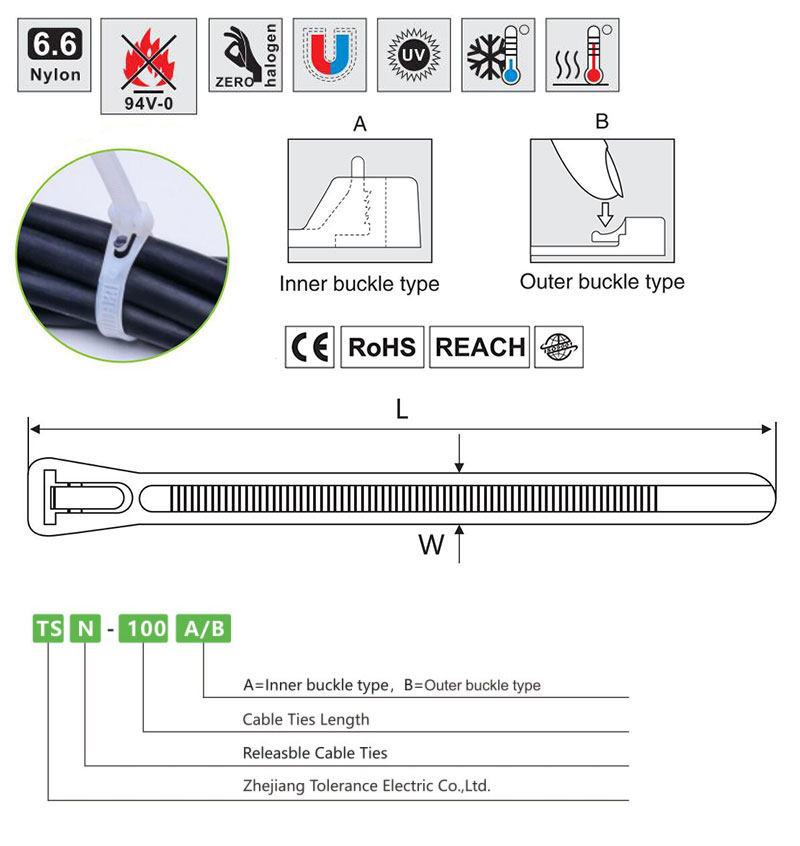

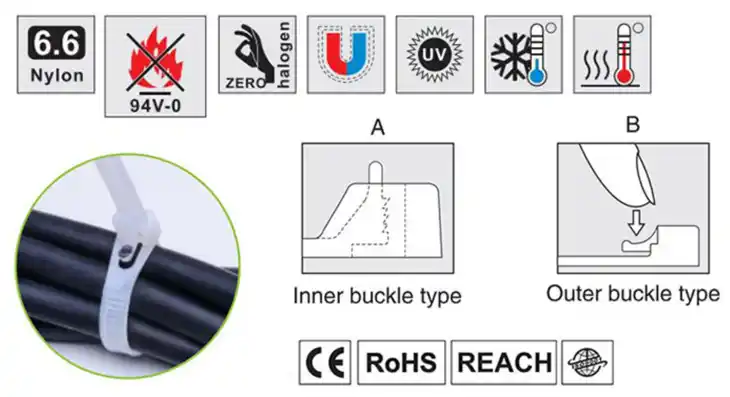

plane figure;CE,RoHS,REACH,ISO9001;Inner buckle type,Outer buckle type

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;



Features & Benefits
Specifications and Models

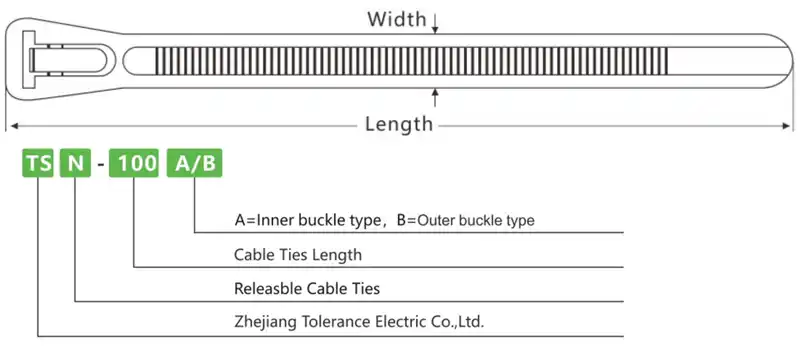

Technical Information

Item No. Width Length Max.Bundle Dia. Min.Tensile Strength Package Material
mm/inch mm/inch mm inch N kg lbs Pcs/Bag
TSN-200A 4.8(0.189) 200(7.87) 50 1.97 220 22.6 50 100 PA66
TSN-300A 4.8(0.189) 300(11.81) 80 31.5 220 22.6 50 100 PA66
TSN-380A 4.8(0.189) 370(14.96) 106 4.2 220 22.6 50 100 PA66
TSN-150B 7.6(0.299) 150(5.91) 35 1.38 220 22.6 50 100 PA66
TSN-200B 7.6(0.299) 200(7.87) 50 1.97 220 22.6 50 100 PA66
TSN-250B 7.6(0.299) 250(9.84) 66 2.6 220 22.6 50 100 PA66
TSN-300B 7.6(0.299) 300(11.81) 82 3.23 220 22.6 50 100 PA66
TSN-350B 7.6(0.299) 350(13.78) 90 3.54 220 22.6 50 100 PA66
TSN-370B 7.6(0.299) 370(14.96) 102 4.02 220 22.6 50 100 PA66
TSN-400B 7.6(0.299) 400(15.75) 110 4.33 220 22.6 50 100 PA66
TSN-500B 7.6(0.299) 500(19.69) 150 5.91 220 22.6 50 100 PA66
TSN-610B 7.6(0.299) 610(24.02) 180 7.09 220 22.6 50 100 PA66
TSN-760B 7.6(0.299) 760(29.92) 205 8.07 220 22.6 50 100 PA66
PACKAGING

Our products have multiple packaging options and provide design support.

  • All-inclusive OPP-PP bag

    All-inclusive OPP/PP bag

  • Hollow OPP-PE bag

    Hollow OPP/PE bag

  • Barrel-packed

    Barrel-packed

  • Blister packaging

    Blister packaging

  • Partitioned belt packaging

    Partitioned belt packaging

  • Boxed

    Boxed

  • Divider strip packaging divider box

    Divider strip packaging divider box

  • Outer box

    Outer box

ACCESSORIES
Cable tie gun FSZ-800Z
Cable tie gun FSZ-800Z
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun FSZ-800K
Cable tie gun FSZ-800K
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun TS-703
Cable tie gun TS-703
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-9
Cable tie gun ES-9
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Cable tie gun ES-7
Cable tie gun ES-7
The nylon cable tie tool gun secures and cuts ties efficiently, ideal for cable management in electronics, furniture, and construction. It ensures stable binding pressure and neat cuts, saving time and ensuring organization.
Technical Capability

The Locking Machanism of Cable Ties


This technology is used in 90% of all polyamide (PA)cable ties applied by Tolerance. in order to cover a varietyof applications, thereare diferent variants of this system, for example: releasable verslons and in-line versions, These are one-piece cable ties, that thepawl is moulded as an integral part of the cable tie, thereby building in inherent strenaths.

Locking technology

Positive locking is achieved by engaging the pawl with the strap serrations. This allows the cable tie to perform to the publishedminimum tensile strength, that is the load that the cable tie can hold under application,

The Locking Machanism of Ball LockType Stainless Steel Cable Ties


Made of stainless steel grades 304 or 316, the MlG range of cable ties has no serations on the strap and are threaded parallel throughthe head, glding undera metal bal-bearing locking mechanism.By using the GlT-705 appication toolthe cable tie is tensioned andthe strap cut to a flush finish.

Locking technology

The strap is locked into the head by means of the smalbal-bearing.The ball locks into the smal end of thewedged shapedhousing, forming a positive locking with the strap.


Determination of Minimum Tensile Strength


The minimum tensile strength is a critical selection criterion for cable ties. it expresses how much loada cable tie can bear. This minimum tensile strenath is determined in accordance with the MilitarySpecificationand Standards of the UsA. Test conditions are precisely defined in MlL-S-23190E

  • Conditioning of the test pieces
  • Construction of the test apparatus
  • Application of the tie on a split test probe
  • Test speed
The test procedure to determine minimum tensile strength

The cable tie is fixed onto a split mandrel test probe with the suitable cable tie application tool
