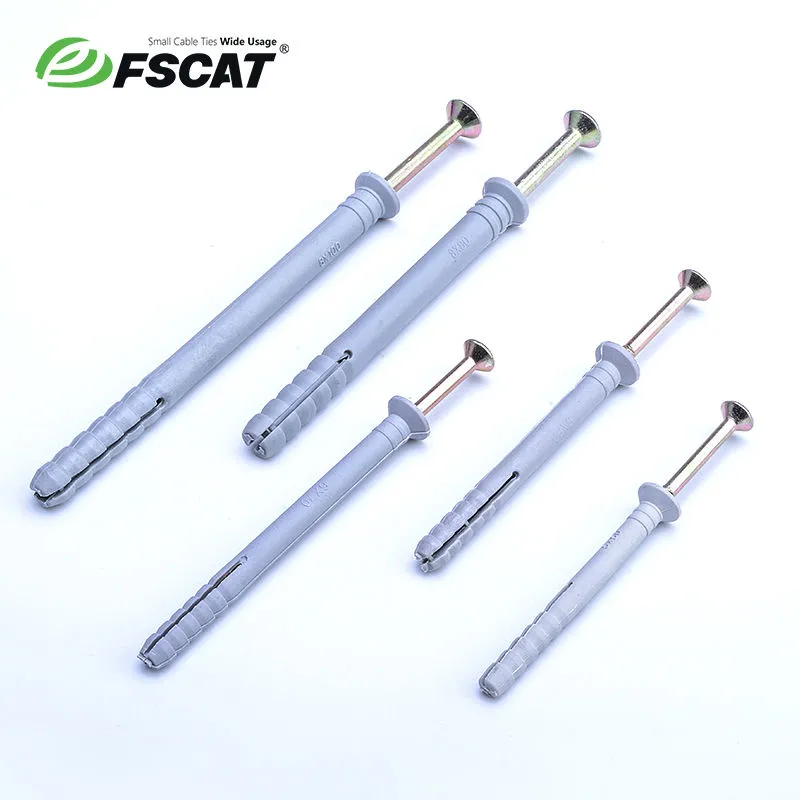

the aricle consists of a nylon plug with countersunk head and a predrive nail-screw, yellow zinc plated.It's suitable for fixing onconcrete,brick and other high-density material.

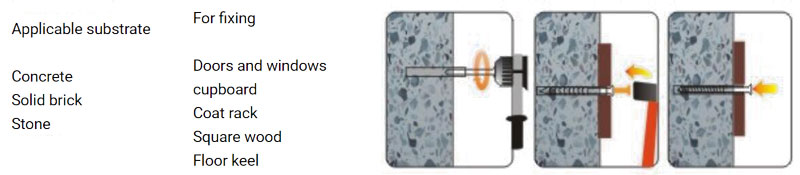

Actual use case:
Unit: mm
|
ITEM NO |
ANCHOR SIZE |
NAIL SIZE |
DRILL DIA. (mm) |
PRACTICAL MAX (mm) |
|
Hf0530 |
5×30 |
3.5×35 |
5 |
5 |
|
HF0535 |
5×35 |
3.5×40 |
5 |
10 |
|
HF0540 |
5×40 |
3.5×45 |
5 |
15 |
|
HF0545 |
5×45 |
3.5×50 |
5 |
20 |
|
HF0550 |
5×50 |
3.5×55 |
5 |
25 |
|
HF0635 |
6×35 |
4.0×40 |
6 |
6 |
|
HF0640 |
6×40 |
4.0×45 |
6 |
10 |
|
HF0650 |
6×50 |
4.0×55 |
6 |
15 |
|
HF0660 |
6×60 |
4.0×65 |
6 |
30 |
|
HF0670 |
6×70 |
4.0×75 |
6 |
40 |
|
HF0680 |
6×80 |
4.0×85 |
6 |
50 |
|
HF0850 |
8×50 |
5.0×50 |
8 |
15 |
|
HF0860 |
8×60 |
5.0×65 |
8 |
20 |
|
HF0880 |
8×80 |
5.0×85 |
8 |
40 |
|
HF08100 |
8×100 |
5.0×105 |
8 |
60 |
|
HF08115 |
8×115 |
5.0×120 |
8 |
60 |
|
HF08135 |
8×135 |
5.0×140 |
8 |
90 |
|
HF1080 |
10×80 |
7.0×85 |
10 |
40 |
|
HF10100 |
10×100 |
7.0×105 |
10 |
50 |
|
HF10120 |
10×120 |
7.0×125 |
10 |
80 |
|
HF10140 |
10×140 |
7.0×145 |
10 |
90 |
|
HF10160 |
10×160 |
7.0×165 |
10 |
110 |
