Materail:High-quality PVC.

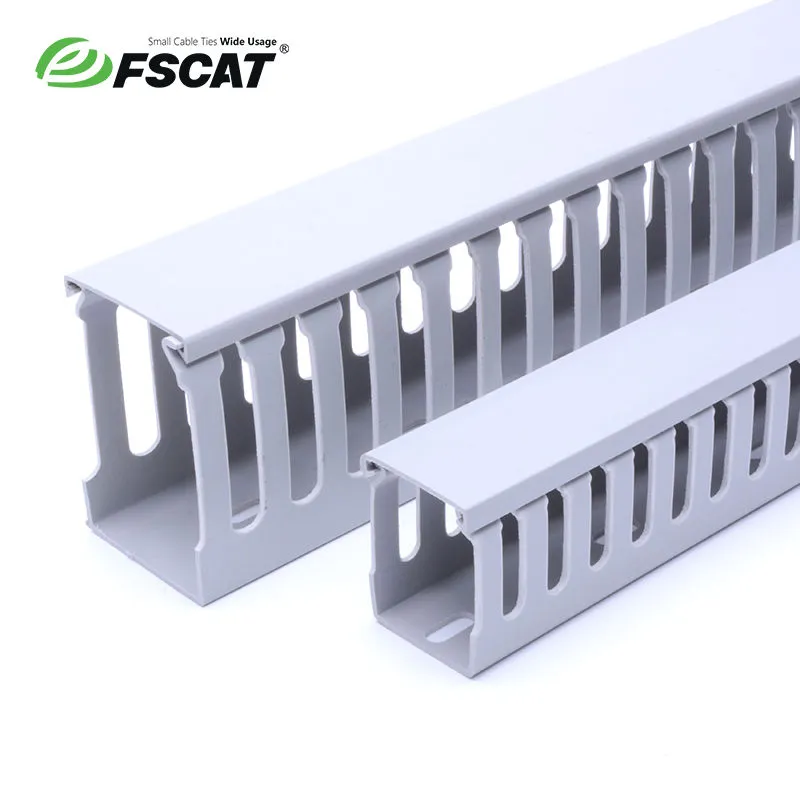

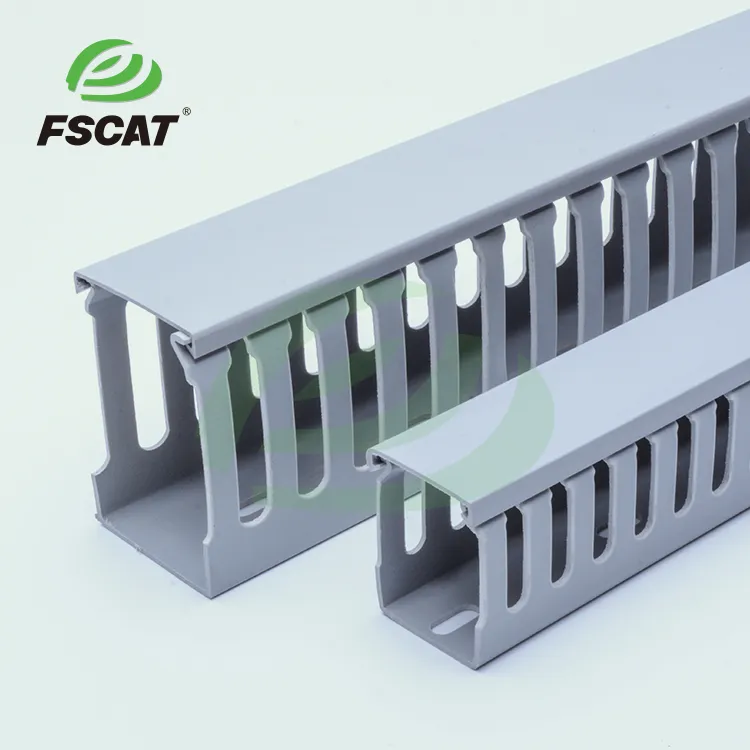

Structure: Consists of cover and bottom, features parallel holes on both sidewalls to facilitate cutting inwire application.
Advantage : 1.Up to 2500V insulation .Maximun service temperature to 550℃. Warp-proof:UL-94-V0.
2. Good design and advanced process. strongly united for cover and bottom, smoothly covers, no edges, all that protece the wires efficiency.
3.Low slotted, easy combination, simple assembled.

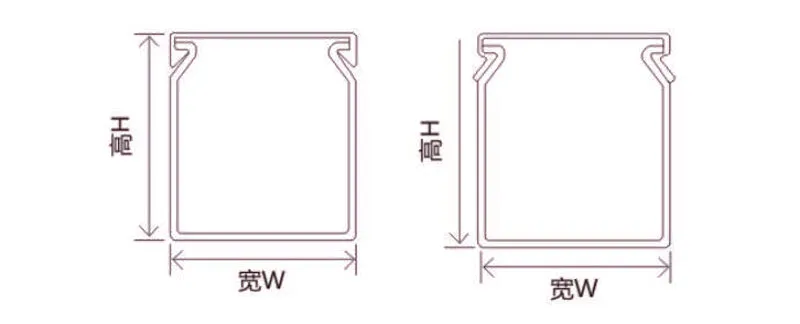

K-SK-Type
Characteristics:The design fits for international standards,The covers can strongly united with the bottom so that it couldn't be opened or maintained by laypeople.
K-SJ-Type
Characteristics: The chinese type fits for asia standaeds, The beveled cover is easy to be maintained.
No. |
ITEM No. |
SIZE (H×W) |
Wire To Be Contained |

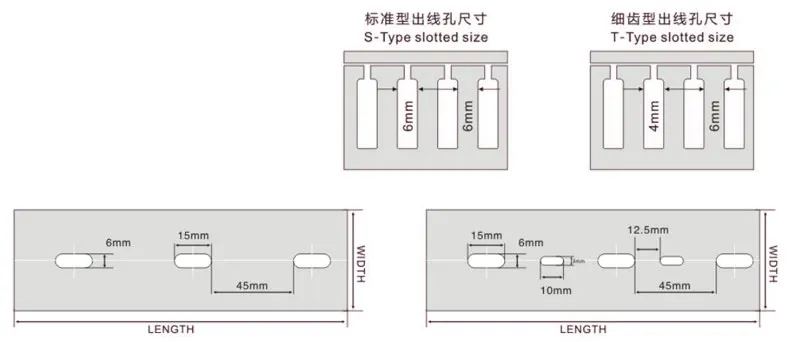

SLOT TYPE |
PCS/CTN |
COLOR |
LENGTH |
01 |
PXC-2015 |
20mm×15mm |
5~12PCS |
T-Type |
100 |
Grey Blue White |
2M |
02 |
PXC-2525 |
25mm×25mm |
10~25PCS |
T-Type |
50 |
||
03 |
PXC-3015 |
30mm×15mm |
5~15PCS |
T-Type |
100 |
||
04 |
PXC-3020 |
30mm×20mm |
10~20PCs |
T-Type |
50 |
||
05 |
PXC-3025 |
30mm×25mm |
15~25PCS |
T-Type |
50 |
||
06 |
PXC-3030 |
30mm×30mm |
20~10PCS |
T-Type |
50 |
||
07 |
PXC-3035 |
30mm×35mm |
25~40PCS |
T-Type |
50 |
||
08 |
PXC-3525 |
35mm×25mm |
15~25PCS |
T-Type |
50 |
||
09 |
PXC-3535 |
35mm×35mm |
20~25PCS |
T-Type |
50 |
||
10 |
PXC-4025 |
40mm×25mm |
20~25PCS |
S-Type |
50 |
||
11 |
PXC-4030 |
40mm×30mm |
40~45PCS |
S-Type |
50 |
||
12 |
PXC-4035 |
40mm×35mm |
40~45PCS |
S-Type |
50 |
||
13 |
PXC-4040 |
40mm×40mm |
60~70PCS |
S-Type |
50 |
||
14 |
PXC-4545 |
45mm×45mm |
70~90PCS |
S-Type |
50 |
||
15 |
PXC-5020 |
50mm×20mm |
15~20PCS |
S-Type |
50 |
||
16 |
PXC-5025 |
50mm×25mm |
20~25PCS |
S-Type |
50 |
||
17 |
PXC-5030 |
50mm×30mm |
30~40PCS |
S-Type |
50 |
||
18 |
PXC-5035 |
50mm×35mm |
50~60PCS |
S-Type |
50 |
||
19 |
PXC-5040 |
50mm×40mm |
60~70PCS |
S-Type |
50 |
||
20 |
PXC-5045 |
50mm×45mm |
70~80PCS |
S-Type |
50 |
||
21 |
PXC-5050 |
50mm×50mm |
80~90PCS |
S-Type |
50 |
||
22 |
PXC-5055 |
50mm×55mm |
90~100PCS |
S-Type |
50 |
||
23 |
PXC-5060 |
50mm×60mm |
100~120PCS |
S-Type |
50 |
||
24 |
PXC-5080 |
50mm×80mm |
150~200PCS |
S-Type |
30 |
||
25 |
PXC-50100 |
50mm×100mm |
200~250PCS |
S-Type |
30 |
||
26 |
PXC-6025 |
60mm×25mm |
30~40PCS |
S-Type |
50 |
||
27 |
PXC-6030 |
60mm×30mm |
30~50PCS |
S-Type |
50 |
||
28 |
PXC-6035 |
60mm×35mm |
60~80PCS |
S-Type |
50 |
||
29 |
PXC-6040 |
60mm×40mm |
100~110PCS |
S-Type |
50 |
||
30 |
PXC-6045 |
60mm×45mm |
110~120PCS |
S-Type |
50 |
||
31 |
PXC-6050 |
60mm×50mm |
110~125PCS |
S-Type |
50 |
||
32 |
PXC-6060 |
60mm×60mm |
110~120PCS |
S-Type |
40 |
||
33 |
PXC-6545 |
65mm×45mm |
100~130PCS |
S-Type |
50 |
||
34 |
PXC-8025 |
80mm×25mm |
100~120PCS |
S-Type |
40 |
||
35 |
PXC-8035 |
80mm×35mm |
110~120PCS |
S-Type |
30 |
||
36 |
PXC-8040 |
80mm×40mm |
120~135PCS |
S-Type |
30 |
||
37 |
PXC-8045 |
80mm×45mm |
120~140PCS |
S-Type |
30 |
||
38 |
PXC-8050 |
80mm×50mm |
130~180PCS |
S-Type |
30 |
||
39 |
PXC-8055 |
80mm×55mm |
135~190PCS |
S-Type |
30 |
||
40 |
PXC-8060 |
80mm×60mm |
180~210PCS |
S-Type |
30 |
||
41 |
PXC-8080 |
80mm×80mm |
240~290PCS |
S-Type |
18 |
||
42 |
PXC-80100 |
80mm×100mm |
260~350PCS |
S-Type |
20 |
||
43 |
PXC-10050 |
100mm×50mm |
130~180PCS |
S-Type |
20 |
||
44 |
PXC-10060 |
100mm×60mm |
240~290PCS |
S-Type |
20 |
||
45 |
PXC-10080 |
100mm×80mm |
260~350PCS |
S-Type |
20 |
||
46 |
PXC-100100 |
100mm×100mm |
300~400PCS |
S-Type |
20 |
