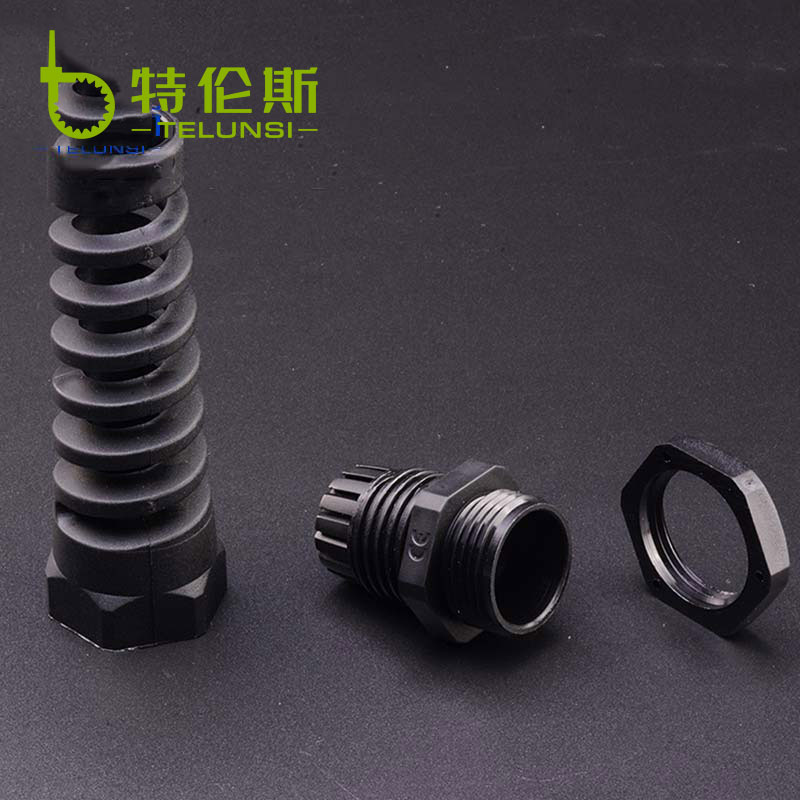

Spiral Cable Glands (PG/M Type)
Spiral Cable Glands (PG/M Type)
Spiral Cable Glands (PG/M Type)

Product Overview

◇Thread: PG,Metric.
◇Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C.Eparts, (Accept to make flammability UL 94V-0); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
◇Protection degree: IP68
◇Working temperature:-40℃ to 100℃
◇Features: The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and havea widercable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
◇Colours: Black (RAL9005)、gray(RAL7035), other color available upon request.

ichnography

Model Code

Cable Range

Thread diameter

Thread length

Wrench diameter

PG7

3~6.5

12.5

8

16

PG7

2~5

12.5

8

16

PG9

4~8

15.2

8

19

PG9

2~6

15.2

8

19

PG11

5~10

18.6

8

22

PG11

3~7

18.6

8

22

PG13.5

6~12

20.4

9

24

PG13.5

5~9

20.4

9

24

PG16

10~14

22.5

10

27

PG16

7~12

22.5

10

27

PG21

13~18

28.3

10

33

PG21

9~16

28.3

10

33

M12×1.5

3~6.5

12

8

16

M12×1.5

2~5

12

8

16

M16×1.5

4~8

16

8

19

M16×1.5

2~6

16

8

19

M18×1.5

5~10

18

8

22

M18×1.5

3~7

18

8

22

M20×1.5

6~12

20

9

24

M20×1.5

5~9

20

9

24

M22×1.5

10~14

22

10

27

M22×1.5

7~12

25

10

27

M25×1.5

13~18

25

10

33

M25×1.5

9~16

27

10

33

M27×1.5

13~18

27

10

33

M27×1.5

9~16

12

10

33
