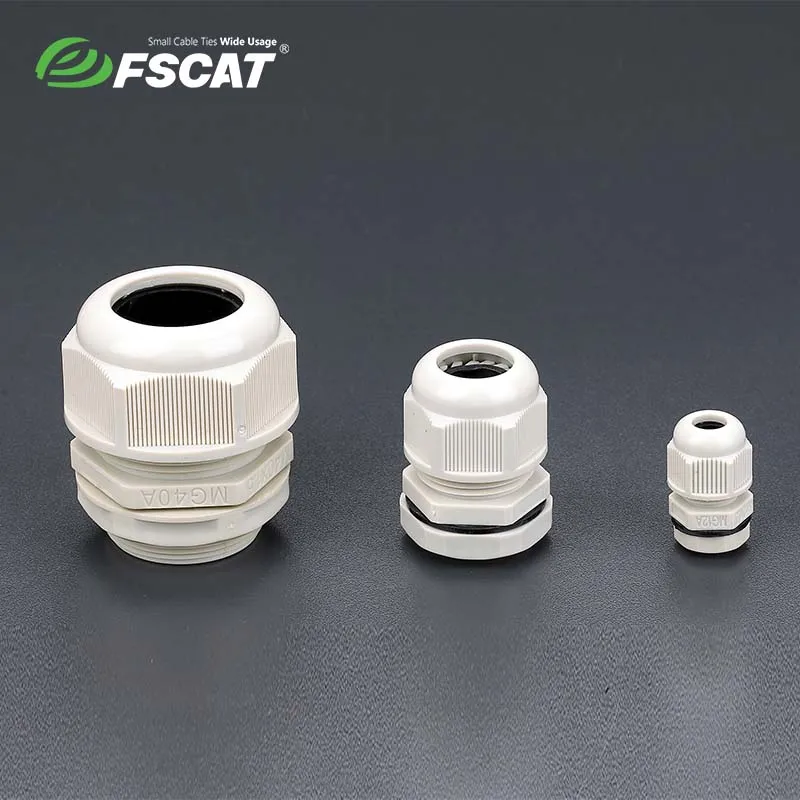

Product Overview

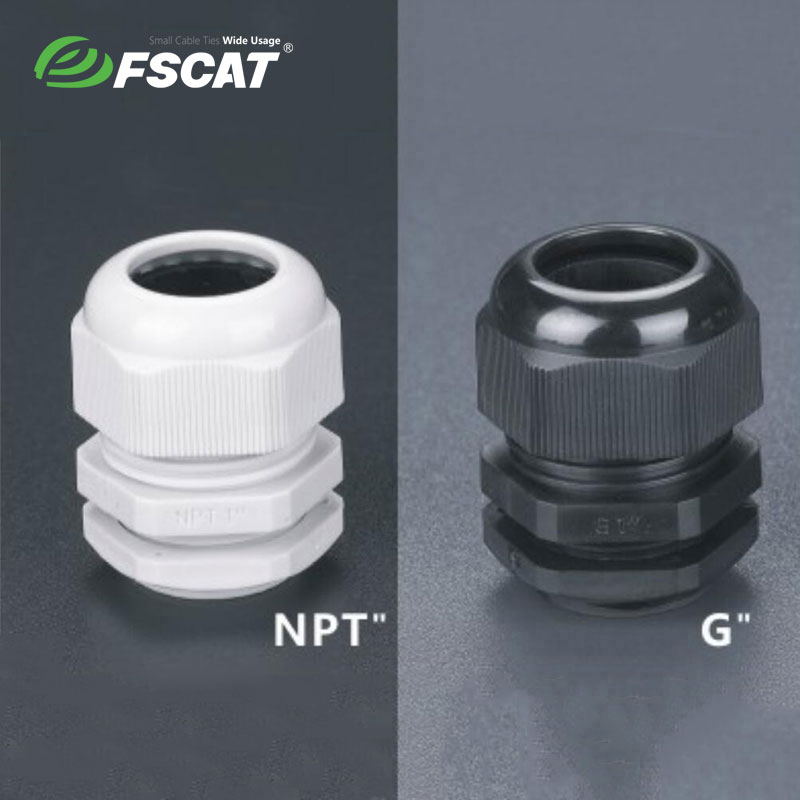

◇Thread: MG/G/NPT

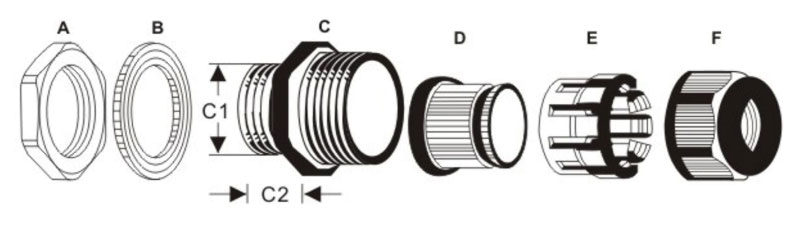

◇Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A.C.E.F parts, (Accept to make flammability UL 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
◇Protection degree: IP68
◇Working temperature: -40℃ to 100℃
◇Features: The claws and seals of excellent design, sealing nut have a "click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
◇Colours: Black (RAL9005), gray(RAL7035), other color available upon request.
|
Product Model |
Applicable to cable |
Thread diameter (C1) |
Thread length (C2) |
Wrench diameter |
|
|
Normal |
Thickened |
||||
|
MG12 |
4.5~8 |
3~5.3 |
12 |
9 |
19 |
|
MG16 |
6~10 |
4~7 |
16 |
15 |
22 |
|
MG20 |
9~14 |
6~11 |
20 |
15 |
27 |
|
MG25 |
13~18 |
10~16 |
25 |
15 |
33 |
|
MG32 |
18~25 |
15~22 |
32 |
15 |
41 |
|
MG40 |
24~30 |
20~25 |
40 |
20 |
50 |
|
MG50 |
30~40 |
26~32 |
50 |
23 |
62 |
|
MG63 |
40~50 |
38~46 |
63 |
24 |
75 |
|
G1/4" |
3~6.5 |
2~5 |
13.1 |
8 |
16 |
|
G3/8" |
4~8 |
2~6 |
16.6 |
15 |
19 |
|
G1/2" |
6~12 |
5~9 |
20.9 |
13 |
24 |
|
G3/4" |
13~18 |
9~16 |
26.4 |
15 |
33 |
|
G1" |
18~25 |
13~20 |
33.2 |
16 |
41 |
|
G1 1/4" |
18~25 |
13~20 |
41.9 |
18 |
46 |
|
G1 1/2" |
22~32 |
20~26 |
47.8 |
15 |
52 |
|
G2" |
37~44 |
29~35 |
59.6 |
15 |
64 |
|
NPT3/8" |
4~8 |
2~6 |
17 |
15 |
19 |
|
NPT1/2" |
6~12 |
5~9 |
21.2 |
13 |
24 |
|
NPT3/4" |
13~18 |
9~16 |
26.2 |
15 |
33 |
|
NPT1" |
18~25 |
13~20 |
33.3 |
16 |
41 |
|
NPT1 1/4" |
18~25 |
13~20 |
42 |
18 |
46 |
|
NPT1 1/2" |
22~32 |
20~26 |
48 |
15 |
53 |
