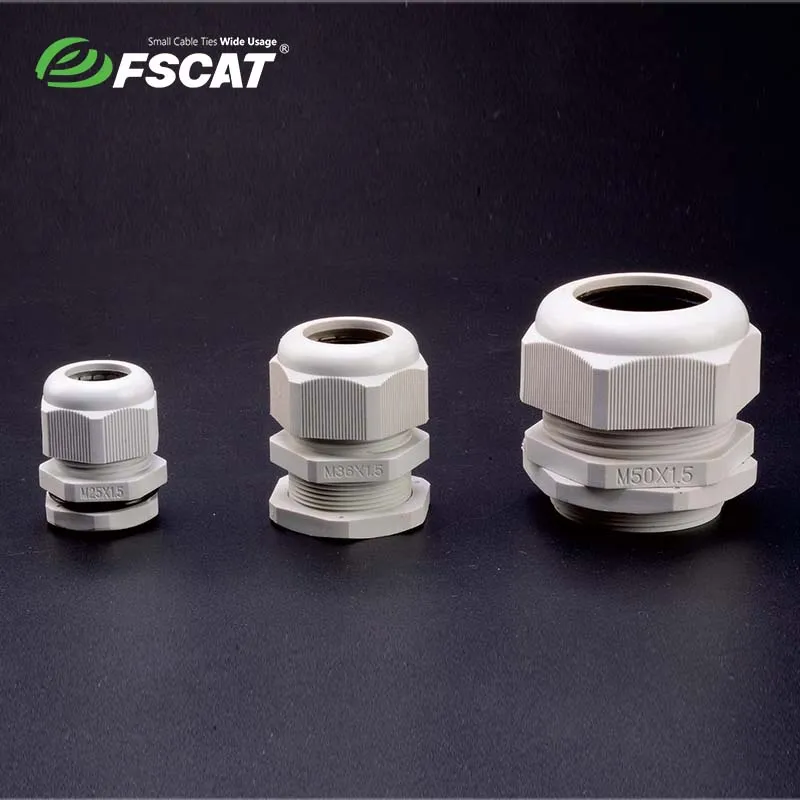

Nylon Cable Glands ( Metric ) M Type
Nylon Cable Glands ( Metric ) M Type
Nylon Cable Glands ( Metric ) M Type

Product Overview

◇Thread: Metric thread
◇Materials: UL approved Nylon PA66 (Flammability UL 94v-2) for A.C.F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
◇Protection degree: IP68
◇Working temperature:-40℃ to 100℃
◇Features: The claws and seals of excellent design, sealing nut havea "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid , alcohol, oil, grease and common solvency.
◇Colours: Black (RAL9005)、gray (RAL7035),other color available upon request.

ichnography

Product Model

Applicable to cable

Thread diameter (C1)

Thread length (C2)

Wrench diameter

Normal

Thickened

M12×1.5

3~6.5

2~5

12

8

16

M16×1.5

4~8

2~6

16

8

19

M18×1.5

5~10

3~7

18

8

22

M20×1.5

6~12

5~9

20

10

24

M22×1.5

10~14

7~12

22

10

27

M24×1.5

12~16

10~13

24

10

27

M25×1.5

13~18

9~16

25

10

33

M27×1.5

13~18

9~16

27

10

33

M30×1.5

16~21

13~18

30

11

35

M32×1.5

16~21

13~18

32

11

35

M36×1.5

18~25

13~20

36

12

42

M40×1.5

22~32

20~26

40

14

52

M50×1.5

32~38

25~31

50

14

60

M63×1.5

37~44

29~35

63

15

64

M71×1.5

42~50

32~40

71

28

77

M72×2

42~50

32~40

72

30

81

M75×2

45~52

50~60

75

30

85

M80×2

52~60

60~70

82

30

90

M88×2

60~70



88

30

90

M100×2

80~92



100

30

110

M114×2

80~92



114

30

110

M12×1.5L

3~6.5

2~5

12

15

16

M16×1.5L

4~8

2~6

16

15

19

M18×1.5L

5~10

3~7

18

15

22

M20×1.5L

6~12

5~9

20

15

24

M22×1.5L

10~14

7~12

22

15

27

M25×1.5L

13~18

9~16

25

15

33

M32×1.5L

16~21

13~18

32

18

35

M40×1.5L

22~32

20~26

40

18

52

M50×1.5L

32~38

25~31

50

18

60

M63×1.5L

37~44

29~35

63

19

64
