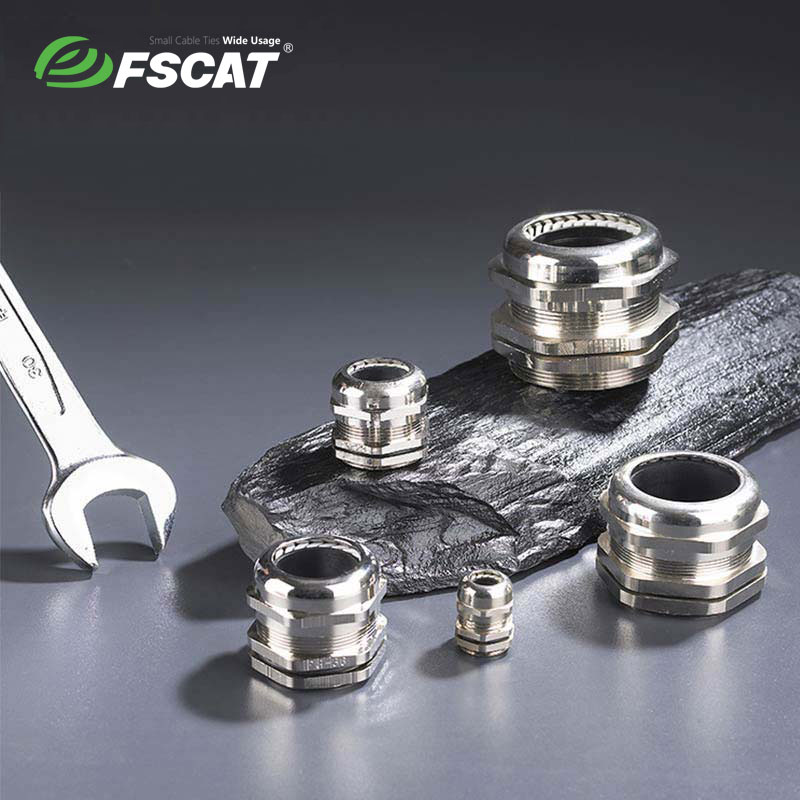

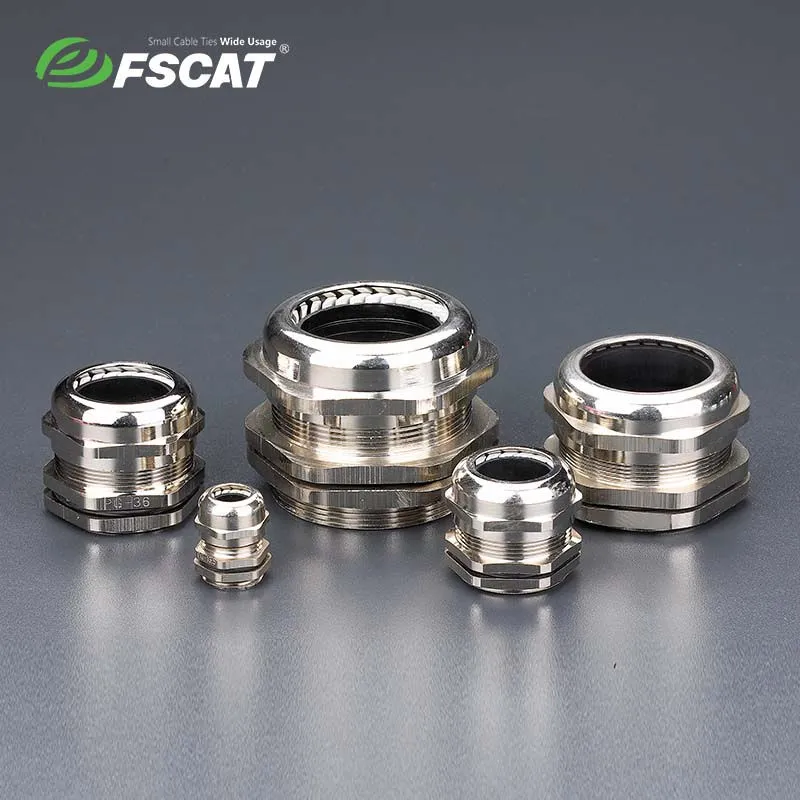

Metal Cable Glands (Brass/SS 304/316) M Thread.

Metal Cable Glands (Brass/SS 304/316) M Thread.
Metal Cable Glands (Brass/SS 304/316) M Thread.
Metal Cable Glands (Brass/SS 304/316) M Thread.

Product Overview

◇Thread: M thread.
◇Brass (Stainless Steel 304/316) with nickel plated for A. C.F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
◇Protection degree: lp68
◇Working temperature: -40℃ to 100℃
◇Features: The claws and seals of excellent design, can hold cable firmly and have awider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and commonsolvency.

ichnography,Material:Brass/ss304/ss316

Model Code

Range

Thread O.D.

Thread Length GL

Joint length H

Spanner Size

M8×1

2-5

8

5

16

12

M10×1

3-6.5

10

6.5

19

14

M12×1.5

3-6.5

12

6.5

19

14

4-8

12

8

19

17

M14×1.5

4-8

14

8

19

17

M16×1.5

4-8

16

8

20

18

5-10

16

8

21

20

M18×1.5

5-10

18

8

21

20

6-12

18

8

22

22

M20×1.5

6-12

20

8

22

22

10-14

20

8

23

24

M22×1.5

10-14

22

8

23

24

M24×1.5

10-14

24

9

25

24/27

M25×1.5

10-14

25

9

25

24/27

12-16

25

9

27

27

13-18

25

9

27

30/27

M27×1.5

13-18

27

9

27

30

M28×1.5

13-18

28

9

27

30

M30×1.5

13-18

30

9

29

30/32

M32×1.5

15-22

32

10

29

35

18-25

32

10

31

40

M33×1.5

15-22

33

10

29

35

M36×1.5

18-25

36

10

31

40

M37×1.5

18-25

37

10

31

40

M40×1.5

18-25

40

11

31

40/45

22-30

40

11

35

45

M42×1.5

22-30

42

11

35

45

M47×1.5

25-33

47

11

37

50

M48×1.5

25-33

48

11

37

50/52

M50×1.5

32-38

50

13

37

57/55

M54×1.5

32-38

54

13

38

57

M60×1.5

37-44

60

14

38

64

M63×1.5

37-44

63

14

38

64/68

M64×2

37-44

64

14

38

64/68

M72×2

42-52

72

16

42

78

48-58

72

16

42

78

M75×2

42-52

75

16

42

78/80

M80×2

55-60

80

18

45

88

M88×2

65-70

88

18

45

94

M100×2

78-84

100

20

53

110
