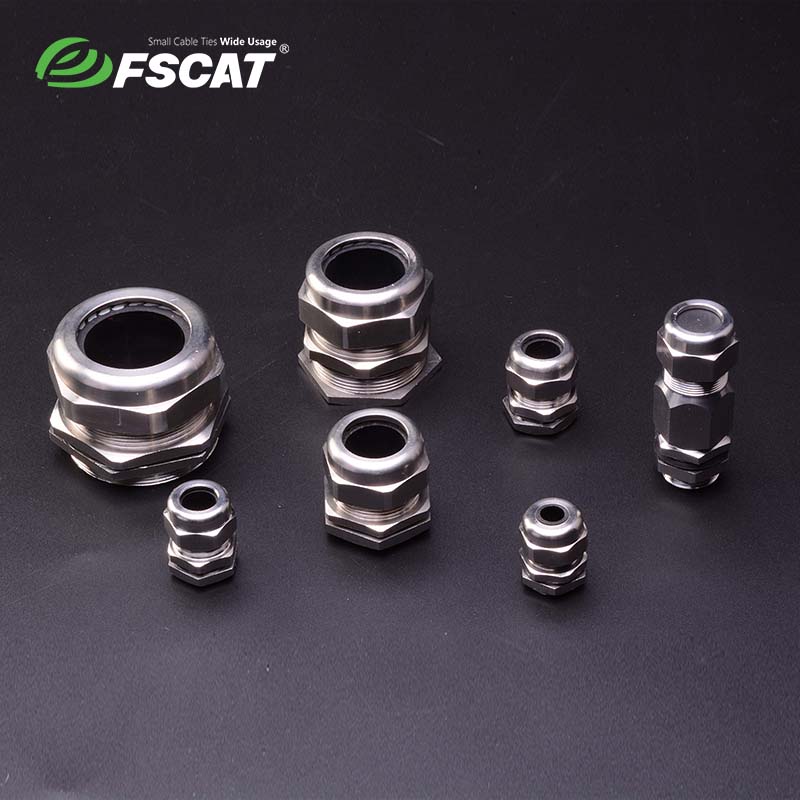

Metal Cable Glands (Brass/S S 304/316) PG/G/NPT Thread
Metal Cable Glands (Brass/S S 304/316) PG/G/NPT Thread

Product Overview

◇Thread: PG/G/NPT thread
◇Brass (Stainless Steel 304/316) with nickel plated for A.C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
◇Protection degree: lp68
◇Working temperature: -40℃ to 100℃
◇Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

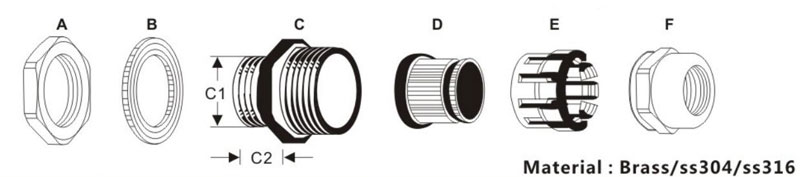

ichnography,Material:Brass/ss304/ss316

Model Code

Range

Thread O.D.

Thread Length GL

Joint length H

Spanner Size

PG7

3-6.5

12.5

7

19

14/15

PG9

4-8

15.2

8

20

17/18

PG11

5-10

18.6

8

21

20/21

PG13.5

6-12

20.4

8

22

22/23

PG16

10-14

22.5

9

23

24/25

PG19

10-14

25.0

9

25

24/27

PG21

13-18

28.3

9

27

30

PG25

15-22

32.0

10

29

35

PG29

18-25

37.0

11

31

40

PG36

25-33

47.0

11

37

50

PG42

32-38

54.0

13

38

57

PG48

37-44

59.3

14

38

64

PG63

42-52

72.0

16

42

78

G

1/2"

6-12

20.9

8

22

22/23

NPT

6-12

21.2

8

22

22/23

G

3/4"

13-18

26.4

9

25

30

NPT

13-18

26.5

9

25

30

G

1"

18-25

33.2

10

29

40

NPT

18-25

33.2

10

29

40

G

1-1/4"

25-33

41.9

11

35

50

NPT

25-33

41.9

11

35

50

G

1-1/2"

32-38

47.8

12

37

57/55

NPT

32-38

48.0

12

37

57/55

G

2"

37-44

59.6

14

38

65

NPT

37-44

60.0

14

38

65

G

2-1/2"

42-52

75.1

16

42

77

NPT

42-52

72.6

16

42

77

G

3

65-70

87.8

18

45

94

NPT

65-70

88.6

18

45

94
