R type Cable Clamp

R type Cable Clamp
R type Cable Clamp
R type Cable Clamp
R type Cable Clamp
R type Cable Clamp
R type Cable Clamp

Material: UL approved Nylon 66, 94V-2
Color: Natural, available in other colors.

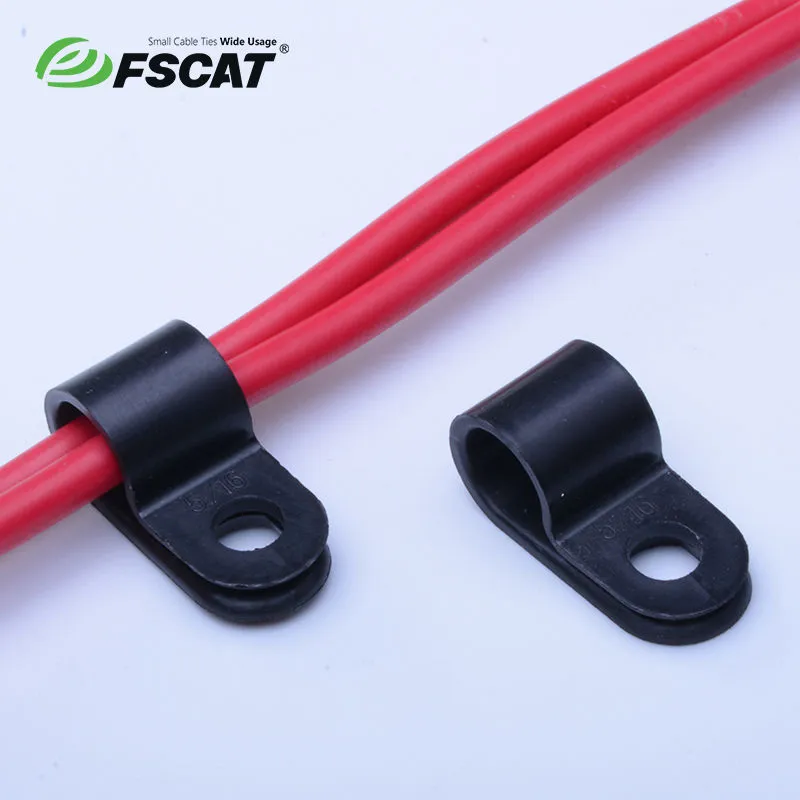

CABLE CLAMPS are designed to hold cables, tubes, and components in domestic appliance, electronics and electric apparatus generally. interior edges are radiused to protect cable insulation. To apply, just clamp down on loosen cables and screw it to chassis.

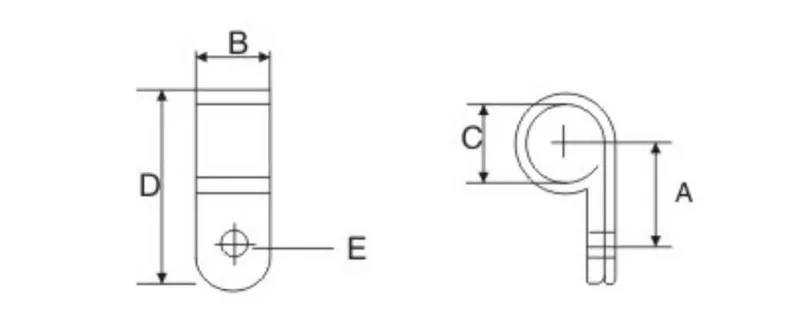

Floor plan: length, height, and width data

Unit: mm

ITEM NO

A

B

C

D

E

UC-3.3 1/8"

9.5

9.6

3.3

17

4.0

UC-5.2 3/16"

10.5

9.6

5.5

18.5

4.0

UC-6.4 1/4"

12

9.6

6.35

21

4.0

UC-8.4 5/16"

12.5

9.6

8.35

22.8

4.0

UC-10.4 3/8"

13.5

9.6

10.35

23.8

4.0

UC-13.2 1/2"

13.5

9.6

12.7

25.8

4.0

UC-16 5/8"

16.5

9.6

15.8

30.5

4.0

UC-19 3/4"

17

12

19

35.5

4.0

UC-23 1"

26

13

23

44

4.0

UC-30 11/16"

23

12.7

30

47

4.0

UC-50 11/2"

41

12.5

50

77

4.0
